4525-DS3A001DP Information
4525-DS3A001DP by TE Connectivity is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10080054-525LF | Amphenol Communications Solutions | Quickie Header, Wire to Board Connector, Double Row, 26 Positions, Press-Fit Eject Latch Header 2.54 mm 0.76 um (30 u\\.) Gold or GXT™ Mating Plating. | |
| 66245-250LF | Amphenol Communications Solutions | Quickie® IDC Cable-to-Board Connector System, Backplane - Double row - 50 Positions - 2.54 mm (0.100in) . | |
| TPS7A4525KTTR | Texas Instruments | Low-Noise Fast-Transient-Response 1.5-A Low-Dropout Voltage Regulator 5-DDPAK/TO-263 -40 to 125 |
Price & Stock for 4525-DS3A001DP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
77AH8994
|
Newark | Pressure Sensor, Differential, +/-1Psi, Pressure Type:Differential, Operating Pressure Min:-1Psi, Operating Pressure Max:1Psi, Supply Voltage Min:-, Supply Voltage Max:3.3Vdc, Sensor Case/Package:Dip, No. Of Pins:8Pins Rohs Compliant: Yes |Te Connectivity Sensors 4525-DS3A001DP RoHS: Compliant Min Qty: 240 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$57.8900 | Buy Now |
|
DISTI #
223-4525-DS3A001DP-ND
|
DigiKey | 1PSI DP PRESSURE SENSOR 10% TO 9 Min Qty: 1 Lead time: 19 Weeks Container: Bulk | Temporarily Out of Stock |
|
$50.6332 / $61.9200 | Buy Now |
|
DISTI #
4525-DS3A001DP
|
Avnet Americas | Pressure Sensor 0.25 to 4.75V 0 to 1Psi Differential 8-Pin DIL - Bulk (Alt: 4525-DS3A001DP) RoHS: Not Compliant Min Qty: 240 Package Multiple: 10 Lead time: 15 Weeks, 3 Days Container: Bulk | 0 |
|
$46.2816 / $47.4420 | Buy Now |
|
DISTI #
824-4525-DS3A001DP
|
Mouser Electronics | Board Mount Pressure Sensors 0-15psid Dual 3.3 Vdc Thru Hole RoHS: Compliant | 0 |
|
$52.9300 / $78.6200 | Order Now |
|
DISTI #
V36:1790_24714173
|
Arrow Electronics | Board Mount Pressure Sensor 0.25V to 4.75V 0psi to 1psi Differential 8-Pin RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 16 Weeks Date Code: 2503 | Americas - 240 |
|
$55.3840 / $59.4665 | Buy Now |
|
DISTI #
TSS4525-DS3A001DP
|
Heilind Electronics | PRESS XDCR, ANALOG, PSI RANGE | Americas - 0 in Stock |
|
$54.2160 / $54.9487 | Buy Now |
|
|
Onlinecomponents.com | 1PSI DP PRESSURE SENSOR 10% TO 90% RoHS: Compliant | 0 |
|
$48.2100 / $135.5400 | Buy Now |
|
DISTI #
87859374
|
Verical | Board Mount Pressure Sensor 0.25V to 4.75V 0psi to 1psi Differential 8-Pin RoHS: Compliant Min Qty: 10 Package Multiple: 10 Date Code: 2503 | Americas - 240 |
|
$55.3840 / $59.4665 | Buy Now |
|
DISTI #
4525-DS3A001DP
|
TTI | Board Mount Pressure Sensors 0-15psid Dual 3.3 Vdc Thru Hole RoHS: Compliant pbFree: Pb-Free Min Qty: 240 Package Multiple: 30 Container: Bulk | Americas - 0 |
|
$48.2600 | Buy Now |
|
DISTI #
TSS4525-DS3A001DP
|
Interstate Connecting Components | PRESS XDCR, ANALOG, PSI RANGE | 0 |
|
$54.2160 / $54.9487 | Buy Now |
Part Details for 4525-DS3A001DP

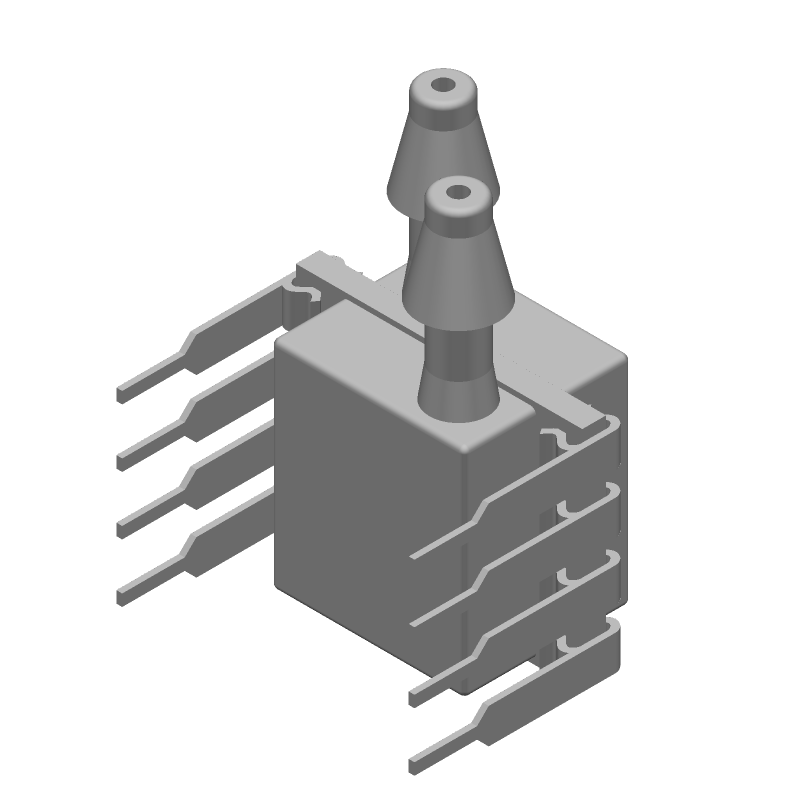

4525-DS3A001DP CAD Models
4525-DS3A001DP Part Data Attributes
|
|
4525-DS3A001DP
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
4525-DS3A001DP
TE Connectivity
Peizoresistive Sensor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | PACKAGE - 8 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 15 Weeks, 3 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Accuracy-Max (%) | 0.25% | |
| Additional Feature | PORT HEIGHT = 7.5 MM, DIAMETER = 3.5 MM | |
| Body Breadth | 9.9 mm | |
| Body Height | 9.9 mm | |
| Body Length or Diameter | 12.5 mm | |
| Housing | CERAMIC | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Operating Current-Max | 3 mA | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Type | ANALOG VOLTAGE | |
| Package Shape/Style | RECTANGULAR | |
| Port Type | BARBED | |
| Pressure Range-Max | 1 Psi | |
| Pressure Range-Min | -20 Psi | |
| Pressure Sensing Mode | DIFFERENTIAL | |
| Response Time | 1000 µs | |
| Sensors/Transducers Type | PRESSURE SENSOR,PIEZORESISTIVE | |
| Supply Voltage-Max | 3.3 V | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
