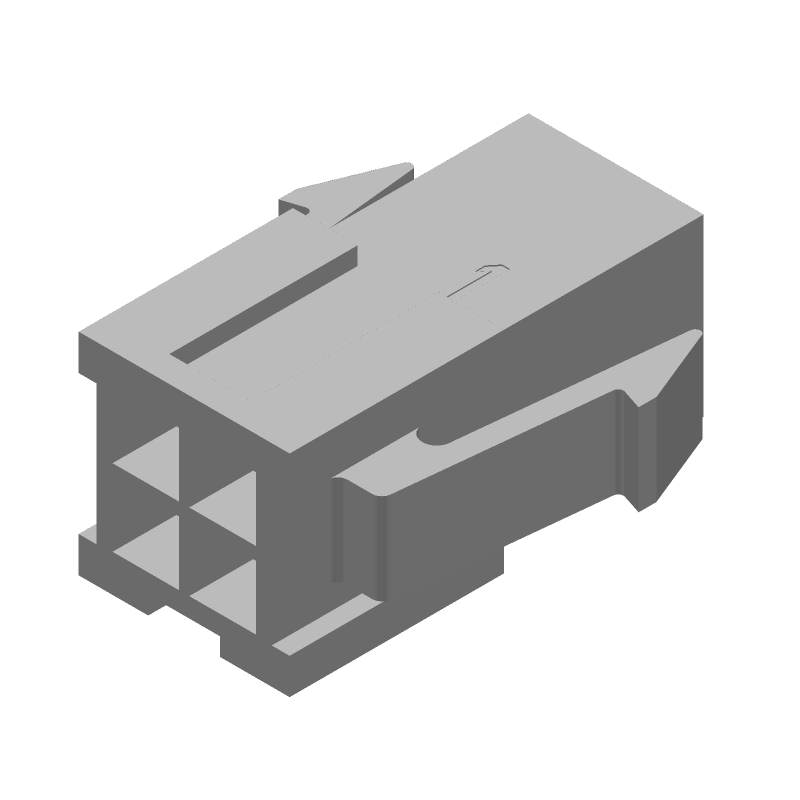

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 43020-0410 by Molex
Results Overview of 43020-0410 by Molex
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
43020-0410 Information
43020-0410 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 75844-302-06LF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded vertical header, Through Hole, Double Row, 6 Positions, 2.54mm (0.100in) Pitch. | |
| 10093084-3020LF | Amphenol Communications Solutions | QSFP+ Cable Assembly, 28 AWG, 2.0ms, passive, non-halogen free | |
| 10093084-3020HFLF | Amphenol Communications Solutions | QSFP+ Cable Assembly, 28 AWG, 2.0ms, passive, Halogen free |
Price & Stock for 43020-0410
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AH3253
|
Newark | Connector Housing, Plug, 4Pos, 3Mm Rohs Compliant: Yes |Molex 43020-0410 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 8049 |
|
$0.4070 / $0.5710 | Buy Now |
|
DISTI #
0430200410
|
Avnet Americas | Micro-Fit 3.0 Plug Housing with Panel Mount Ears Dual Row Glow Wire Capable 4 Circuits Nylon Black Bag - Bulk (Alt: 0430200410) RoHS: Compliant Min Qty: 10000 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1728 / $0.1764 | Buy Now |
|
DISTI #
538-43020-0410
|
Mouser Electronics | Headers & Wire Housings MicroFit Plug DR PnlMnt 4Ckt GW RoHS: Compliant | 6199 |
|
$0.1800 / $0.9200 | Buy Now |
|
|
Onlinecomponents.com | Micro-Fit 3.0 Plug Housing - 4 Circuits - Dual Row - UL 94V-0 - Panel Mount Ears - Glow-Wire Capable - Black. RoHS: Compliant | 0 |
|
$0.2090 / $0.2810 | Buy Now |
|
DISTI #
MX-43020-0410
|
TME | connector 43020-0410 Min Qty: 10000 | 0 |
|
$0.3580 | RFQ |
|
DISTI #
43020-0410
|
IBS Electronics | CONNECTOR HOUSING PLUG 4POS 3MM ROHS COMPLIANT: YES |MOLEX 43020-0410 Min Qty: 650 Package Multiple: 1 | 7000 |
|
$0.1925 / $0.2037 | Buy Now |
Part Details for 43020-0410
43020-0410 CAD Models
43020-0410 Part Data Attributes
|
|
43020-0410
Molex
Buy Now
Datasheet
|
Compare Parts:
43020-0410
Molex
Board Connector, 4 Contact(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Molex | |
| Body Depth | 0.665 inch | |
| Body Length | 0.27 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | BOARD CONNECTOR | |
| Contact Arrangement | S0P4 | |
| Contact Gender | FEMALE | |
| Contact Resistance | 10 mΩ | |
| Contact Style | SQ PIN-SKT | |
| Filter Feature | NO | |
| Insertion Force-Max | 8.0064 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYAMIDE | |
| Mixed Contacts | YES | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Rated Current (Signal) | 2.5 A | |
| Reference Standard | UL | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 4 | |
| Withdrawl Force-Min | 3.5584 N |
43020-0410 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
-
Yes, the 43020-0410 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
-
Yes, the 43020-0410 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels, making it suitable for harsh environments.
-
The mating cycle life of the 43020-0410 connector is rated for a minimum of 500 mating cycles.
-
Yes, the 43020-0410 connector is designed for automated assembly processes, including pick-and-place and wire-termination machines.
