Resistors / Wire Wound Resistors / 4-1623750-5
Datasheets
4-1623750-5 by: TE Connectivity

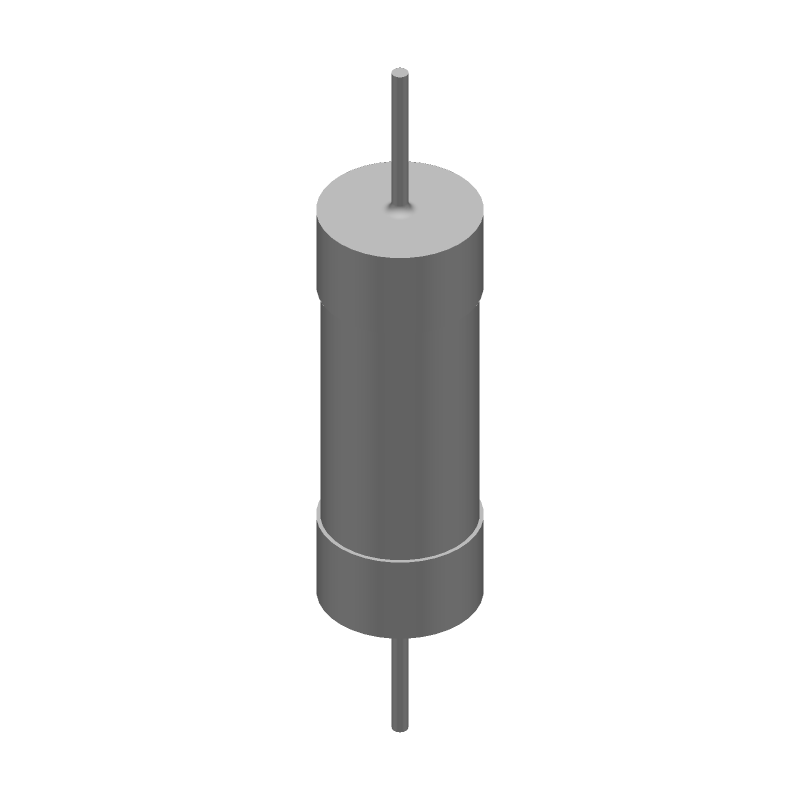

RESISTOR, WIRE WOUND, 7W, 5%, 150ppm, 0.15ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Part Details for 4-1623750-5 by TE Connectivity

Results Overview of 4-1623750-5 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

4-1623750-5 Information

4-1623750-5 by TE Connectivity is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for 4-1623750-5

Part # Distributor Description Stock Price Buy
DISTI # 4-1623750-5
Avnet Americas Resistor, 150 Milliohms, ? 5%, 7 W, Axial Leaded, Wirewound, High Power - Bulk (Alt: 4-1623750-5) RoHS: Compliant Min Qty: 2000 Package Multiple: 250 Lead time: 22 Weeks, 5 Days Container: Bulk 0
  • 2,000 $0.6237
  • 2,500 $0.6137
  • 4,500 $0.6038
  • 10,000 $0.5938
  • 20,000 $0.5629
$0.5629 / $0.6237 Buy Now
DISTI # AMP4-1623750-5
Heilind Electronics ER58 R15 5% AMMO Americas - 0 in Stock
  • 2,000 $0.7560
  • 2,250 $0.7447
  • 10,250 $0.7338
$0.7338 / $0.7560 Buy Now
Onlinecomponents.com ER58 R15 5% AMMO RoHS: Compliant 0
  • 500 $0.9980
  • 1,000 $0.7480
  • 1,500 $0.6990
  • 2,000 $0.6850
$0.6850 / $0.9980 Buy Now
DISTI # AMP4-1623750-5
Interstate Connecting Components ER58 R15 5% AMMO 0
  • 2,000 $0.7560
  • 2,250 $0.7447
  • 10,250 $0.7338
$0.7338 / $0.7560 Buy Now
DISTI # 4-1623750-5
Avnet Abacus Resistor 150 Milliohms 5 7 W Axial Leaded Wirewound High Power (Alt: 4-1623750-5) RoHS: Compliant Min Qty: 2000 Package Multiple: 250 Lead time: 18 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics ER58 R15 5% AMMO RoHS: Compliant 0
  • 500 $0.9980
  • 1,000 $0.7480
  • 1,500 $0.6990
  • 2,000 $0.6850
$0.6850 / $0.9980 Buy Now

Part Details for 4-1623750-5

4-1623750-5 Part Data Attributes

Parametric Data
4-1623750-5 TE Connectivity
Buy Now Datasheet
Compare Parts:
4-1623750-5 TE Connectivity RESISTOR, WIRE WOUND, 7W, 5%, 150ppm, 0.15ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.80
Samacsys Manufacturer TE Connectivity
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 200 °C
Operating Temperature-Min -55 °C
Package Shape TUBULAR PACKAGE
Packing Method AMMO PACK
Physical Dimension 22.2mm x 8mm
Rated Power Dissipation (P) 7 W
Resistance 0.15 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology WIRE WOUND
Temperature Coefficient 200 ppm/°C
Terminal Shape WIRE
Tolerance 5%
Working Voltage 200 V
