Connectors / Headers and Edge Type Connectors / 4-103327-6
Datasheets
4-103327-6 by:

06 MODII HDR SRST B/A .100CL

Part Details for 4-103327-6 by TE Connectivity

Results Overview of 4-103327-6 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

4-103327-6 Information

4-103327-6 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 4-103327-6

Part # Distributor Description Stock Price Buy
DISTI # 2967383
Farnell CONNECTOR, 6POS, HEADER, 2.54MM, 1ROW RoHS: Compliant Min Qty: 300 Lead time: 1 Weeks, 2 Days Container: Each 572
  • 300 $0.4522
  • 900 $0.3950
$0.3950 / $0.4522 Buy Now
DISTI # 4-103327-6
Avnet Americas - Rail/Tube (Alt: 4-103327-6) RoHS: Compliant Min Qty: 9600 Package Multiple: 9600 Lead time: 9 Weeks, 0 Days Container: Tube 0
RFQ
DISTI # V36:1790_11812775
Arrow Electronics Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Top Entry Thru-Hole Carton RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Americas - 3383
  • 0 $0.2354
  • 1 $0.1736
$0.1736 / $0.2354 Buy Now
DISTI # 72056343
RS Connector, AMPMODU, 06 Modii Hdr Srst B/A .100Cl Min Qty: 9600 Package Multiple: 1 Container: Bulk 0
  • 9,600 $0.3390
  • 19,200 $0.3220
  • 38,400 $0.3120
$0.3120 / $0.3390 RFQ
Onlinecomponents.com 06 MODII HDR SRST B/A .100CL RoHS: Compliant 715 Partner Stock
  • 250 $0.2723
  • 1,300 $0.2672
  • 2,500 $0.2632
  • 4,900 $0.2581
  • 9,600 $0.2519
  • 10,000 $0.1948
  • 50,000 $0.1622
$0.1622 / $0.2723 Buy Now
DISTI # 24867169
Verical Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Top Entry Thru-Hole Carton RoHS: Compliant Min Qty: 227 Package Multiple: 1 Americas - 715
  • 227 $0.2760
$0.2760 Buy Now
DISTI # 4-103327-6
TTI Headers & Wire Housings 06 MODII HDR SRST B/A .100CL Min Qty: 240 Package Multiple: 240 Container: Each Americas - 0
Buy Now
DISTI # 000000000001450318
Sager Headers & Wire Housings 06 MODII HDR SRST B/A .100CL 0
Buy Now
DISTI # 4-103327-6
Avnet Abacus (Alt: 4-103327-6) RoHS: Compliant Min Qty: 4800 Package Multiple: 240 Lead time: 112 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 4-103327-6
Avnet Abacus (Alt: 4-103327-6) RoHS: Compliant Min Qty: 9600 Package Multiple: 240 Lead time: 113 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 06 MODII HDR SRST B/A .100CL RoHS: Compliant 715 Partner Stock
  • 250 $0.2723
  • 1,300 $0.2672
  • 2,500 $0.2632
  • 4,900 $0.2581
  • 9,600 $0.2519
  • 10,000 $0.1948
  • 50,000 $0.1622
$0.1622 / $0.2723 Buy Now

Part Details for 4-103327-6

4-103327-6 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

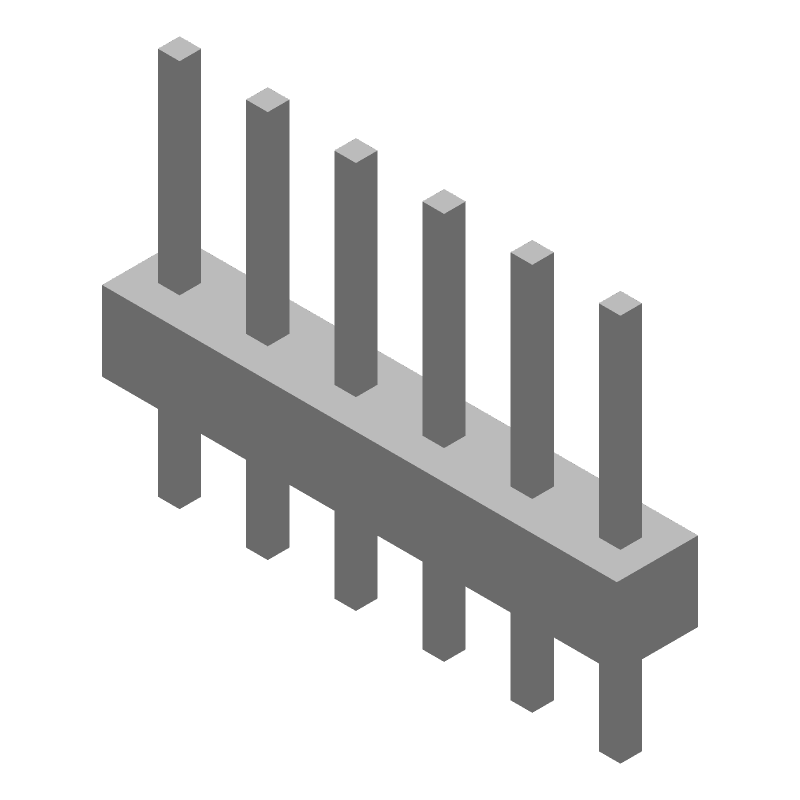

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

4-103327-6 Part Data Attributes

Parametric Data
4-103327-6 TE Connectivity
Buy Now Datasheet
Compare Parts:
4-103327-6 TE Connectivity 06 MODII HDR SRST B/A .100CL
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 9 Weeks
Samacsys Manufacturer TE Connectivity
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
DIN Conformance NO
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material POLYETHYLENE
MIL Conformance NO
Mains Connector Rating 3A
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
Panel Mount NO
Plating Thickness 200u inch
Rated Current (Signal) 3 A
Reference Standard CSA, LR, U
Terminal Length 0.12 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 6
UL Flammability Code 94V-0

Alternate Parts for 4-103327-6

This table gives cross-reference parts and alternative options found for 4-103327-6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 4-103327-6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
966710-6 TE Connectivity $2.4595 Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Black Insulator 4-103327-6 vs 966710-6
281699-6 TE Connectivity Check for Price HEADER HE13 RA 6 P 4-103327-6 vs 281699-6
146293-6 TE's AMP Check for Price 6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 4-103327-6 vs 146293-6
8-103336-7 TE Connectivity Check for Price 06 MODII HDR SRST UNSHRD A/PIN 4-103327-6 vs 8-103336-7
146292-6 TE's AMP Check for Price 6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 4-103327-6 vs 146292-6
146288-6 TE's AMP Check for Price 6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 4-103327-6 vs 146288-6
87348-6 TE Connectivity Check for Price 06 MODII HDR SRST UNSHRD .100 4-103327-6 vs 87348-6
5-104878-9 TE Connectivity Check for Price 06/07 MODII HDR SRST B/A .100 4-103327-6 vs 5-104878-9
7-104878-1 TE Connectivity Check for Price Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 4-103327-6 vs 7-104878-1
3-103336-7 TE Connectivity Check for Price 06 MODII HDR SRST UNSHRD A/PIN 4-103327-6 vs 3-103336-7

4-103327-6 Related Parts

4-103327-6 Frequently Asked Questions (FAQ)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screws on the 4-103327-6 connector.

  • Yes, the 4-103327-6 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.

  • Yes, the 4-103327-6 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow proper mounting and installation procedures to ensure reliability.

  • Yes, the 4-103327-6 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories.

  • The operating temperature range for the 4-103327-6 connector is -40°C to 125°C (-40°F to 257°F).
