Switches / Keypad Switches / 3FTL6
Datasheets
3FTL6 by:

Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight

Part Details for 3FTL6 by APEM Inc

Results Overview of 3FTL6 by APEM Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

3FTL6 Information

3FTL6 by APEM Inc is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for 3FTL6

Part # Distributor Description Stock Price Buy
Onlinecomponents.com Switch Tactile N.O. SPST Round Button PC Pins 0.05A 24VDC Thru-Hole RoHS: Compliant Alternative Product Available
  • 0 $0
$0 Buy Now
Quest Components KEYPAD SWITCH, 1 SWITCHES, SPST, MOMENTARY, 0.05A, 24VDC, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT 12
  • 1 $11.7300
  • 5 $8.7975
$8.7975 / $11.7300 Buy Now
Vyrian Switches 614
RFQ

Part Details for 3FTL6

3FTL6 CAD Models

  • Part Symbol

    Part Symbol

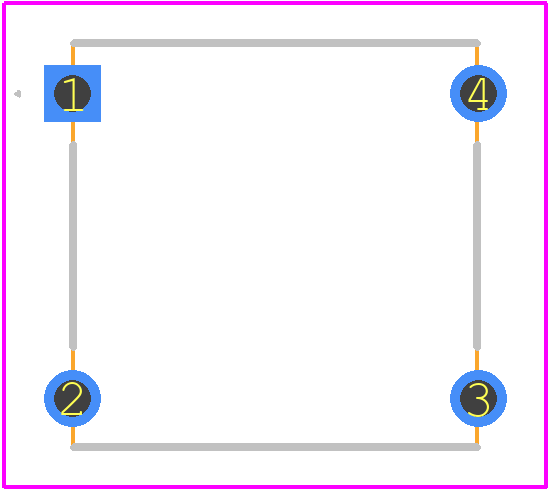

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

3FTL6 Part Data Attributes

Parametric Data
3FTL6 APEM Inc
Buy Now Datasheet
Compare Parts:
3FTL6 APEM Inc Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight
Part Life Cycle Code Obsolete
Ihs Manufacturer APEM COMPONENTS INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.40
Samacsys Manufacturer Apem
Body Height 6.4 mm
Body Length or Diameter 12.5 mm
Circuit Configuration 1X1
Contact Current(DC)-Max 0.05 A
Contact (DC) Max Rating R Load .05A@24VDC
Contact Voltage(DC)-Max 24 V
Electrical Life 10000000 Cycle(s)
Mounting Feature THROUGH HOLE-STRAIGHT
Number of Switches 1
Operating Temperature-Max 115 °C
Operating Temperature-Min -40 °C
Sealing IP67
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPST
Switch Type KEYPAD SWITCH
Termination Type SOLDER

Alternate Parts for 3FTL6

This table gives cross-reference parts and alternative options found for 3FTL6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 3FTL6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1-1825910-5 TE Connectivity $0.1660 Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 2.548N, Solder Terminal, Panel Mount 3FTL6 vs 1-1825910-5
3-1825910-6 TE's AMP Check for Price KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 3.04N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 3FTL6 vs 3-1825910-6
3FTL620 APEM Inc Check for Price Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight 3FTL6 vs 3FTL620
1-1825955-6 TE Connectivity Check for Price Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight 3FTL6 vs 1-1825955-6
1825955-3 TE Connectivity Check for Price KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 3.04N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 3FTL6 vs 1825955-3
1825955-7 TE Connectivity Check for Price KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 3.04N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 3FTL6 vs 1825955-7
1825955-1 TE Connectivity Check for Price Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 1.47N, Solder Terminal, Through Hole-straight 3FTL6 vs 1825955-1
1825955-4 TE Connectivity Check for Price Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight 3FTL6 vs 1825955-4
2-1825910-0 TE Connectivity Check for Price Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight 3FTL6 vs 2-1825910-0
1-1825955-2 TE Connectivity Check for Price Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight 3FTL6 vs 1-1825955-2

3FTL6 Related Parts

3FTL6 Frequently Asked Questions (FAQ)

  • APEM recommends a torque of 0.8 Nm (7 lb-in) for the screw terminals to ensure reliable connections.

  • Yes, the 3FTL6 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.

  • Yes, the 3FTL6 is designed to meet the requirements of IEC 60068-2-52 (salt spray) and IEC 60068-2-78 (humidity), making it suitable for use in harsh environments.

  • APEM recommends using wires with a diameter of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14) for reliable connections.

  • Yes, the 3FTL6 is designed to handle high inrush currents, making it suitable for use in applications such as motor control and power supplies.
