3ESH9-15.0 by:

Keypad Switch, 1 Switches, Momentary, 0.05A, 24VDC, Solder Terminal, Surface Mount-straight

Part Details for 3ESH9-15.0 by APEM Inc

Results Overview of 3ESH9-15.0 by APEM Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

3ESH9-15.0 Information

3ESH9-15.0 by APEM Inc is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for 3ESH9-15.0

Part # Distributor Description Stock Price Buy
DISTI # 05W9079
Newark Tactile Switch, 0.05A, 24Vdc, Smd, Product Range:Multimec 3E Series, Actuator Orientation:Top Actuated, Switch Mounting:Surface Mount, Actuator Style:Round Button, Actuating Force:350Gf, Contact Rating:50Ma At 24Vdc, Ip Rating:Ip67 Rohs Compliant: Yes |Apem 3ESH9-15.0 RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $4.0700
  • 250 $3.5800
  • 500 $3.2000
  • 1,000 $3.0100
$3.0100 / $4.0700 Buy Now
DISTI # 642-3ESH9-15.0
Mouser Electronics Tactile Switches 15mm Blk Act High Tmp SMT RoHS: Compliant 354
  • 1 $4.3700
  • 10 $3.5700
  • 50 $3.2500
  • 100 $3.0900
  • 200 $2.8500
  • 1,000 $2.7700
  • 2,500 $2.6300
$2.6300 / $4.3700 Buy Now
DISTI # 70733670
RS Switch, Tactile, SPST, NO, OFF-MOM, Standard, Top Actuated, Non-Illum,0.05A,24VDC, Gull Min Qty: 100 Package Multiple: 1 Container: Bulk 0
  • 100 $4.1400
  • 500 $3.8100
  • 1,000 $3.5100
  • 2,000 $3.1800
  • 5,000 $2.9400
$2.9400 / $4.1400 RFQ
Onlinecomponents.com Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 3N SMD RoHS: Compliant 353 In Stock
  • 10 $3.4950
  • 50 $2.8860
  • 300 $2.5690
  • 500 $2.5370
  • 1,000 $2.3610
  • 2,500 $2.1560
  • 5,000 $2.1450
  • 7,500 $2.1350
$2.1350 / $3.4950 Buy Now
DISTI # 51535132
Verical Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 3N SMD RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 1811 Americas - 350
  • 20 $4.5500
  • 50 $3.7570
  • 300 $3.3410
  • 500 $3.3020
  • 1,000 $3.0680
$3.0680 / $4.5500 Buy Now
Powell Electronics Switch Min Qty: 1 13
  • 1 $11.9000
  • 100 $8.3500
  • 500 $7.5500
  • 1,000 $7.2000
  • 2,500 $6.9500
$6.9500 / $11.9000 Buy Now
DISTI # 3ESH9-15.0
Avnet Abacus Tactile Switch Multimec 3E Series Top Actuated Surface Mount Round Button 350 gf (Alt: 3ESH9-15.0) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 23 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 3ESH9-15.0
Avnet Abacus Extender for Multimec (Alt: 3ESH9-15.0) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 112 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 3N SMD RoHS: Compliant 353 In Stock
  • 10 $3.4950
  • 50 $2.8860
  • 300 $2.5690
  • 500 $2.5370
  • 1,000 $2.3610
  • 2,500 $2.1560
  • 5,000 $2.1450
  • 7,500 $2.1350
$2.1350 / $3.4950 Buy Now
Vyrian Switches 765
RFQ

Part Details for 3ESH9-15.0

3ESH9-15.0 CAD Models

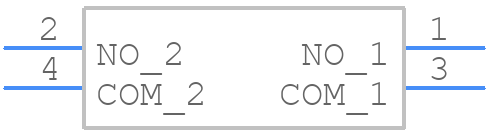

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

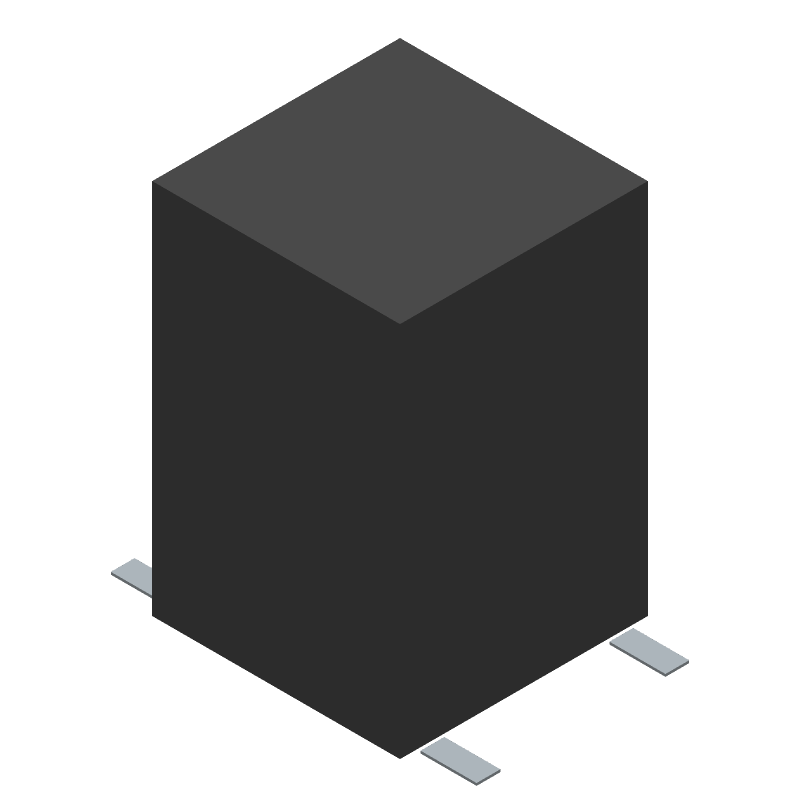

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

3ESH9-15.0 Part Data Attributes

Parametric Data
3ESH9-15.0 APEM Inc
Buy Now Datasheet
Compare Parts:
3ESH9-15.0 APEM Inc Keypad Switch, 1 Switches, Momentary, 0.05A, 24VDC, Solder Terminal, Surface Mount-straight
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer APEM COMPONENTS INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.40
Samacsys Manufacturer Apem
Body Breadth 10.1 mm
Body Height 5.1 mm
Body Length or Diameter 10.1 mm
Circuit Configuration 1X1
Contact Current(DC)-Max 0.05 A
Contact (DC) Max Rating R Load .05A@24VDC
Contact Voltage(DC)-Max 24 V
Electrical Life 10000000 Cycle(s)
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Switches 1
Operating Temperature-Max 160 °C
Operating Temperature-Min -40 °C
Packing Method BULK
Sealing IP67
Surface Mount NO
Switch Action MOMENTARY
Switch Type KEYPAD SWITCH
Termination Type SOLDER

3ESH9-15.0 Related Parts

3ESH9-15.0 Frequently Asked Questions (FAQ)

  • The recommended torque is 0.5 Nm (4.4 lb-in) for the screw terminals.

  • Yes, the switch is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.

  • The switch has a rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use a sealant or conformal coating for added protection in humid or wet environments.

  • The minimum operating temperature for the 3ESH9-15.0 is -40°C (-40°F).

  • Yes, the 3ESH9-15.0 is UL recognized (E174525) and meets the requirements for UL 61058-1 and UL 61058-2-1 standards.
