35180-0400 Information
35180-0400 by Molex is a Power Connector.
Power Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 35180-0400
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
91M9180
|
Newark | Header Connector, cable Mount, recept,4 Contacts, pin,0.343 Pitch, crimp Terminal, locking |Molex 35180-0400 RoHS: Not Compliant Min Qty: 150 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.4900 / $0.5300 | Buy Now |
|
DISTI #
56H7098
|
Newark | Connector Housing, Plug, 4Pos, Product Range:35180 Series, Gender:Plug, No. Of Positions:4Positions, Pitch Spacing:8.7Mm, For Use With:Molex 35745, 35746, 35747, 35748 Series Socket Contacts Rohs Compliant: Yes |Molex 35180-0400 RoHS: Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.3610 | Buy Now |
|
DISTI #
0351800400
|
Avnet Americas | Conn Housing M 4 POS Crimp ST Bag - Bulk (Alt: 0351800400) RoHS: Compliant Min Qty: 7200 Package Multiple: 1800 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3341 / $0.3410 | Buy Now |
|
DISTI #
0351800400
|
Avnet Americas | Conn Housing M 4 POS Crimp ST Bag - Bulk (Alt: 0351800400) RoHS: Compliant Min Qty: 7200 Package Multiple: 1800 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3341 / $0.3410 | Buy Now |
|
DISTI #
538-35180-0400
|
Mouser Electronics | Headers & Wire Housings 070 MULTI W/W MALE H MALE HSG-4 351800400 RoHS: Compliant | 48 |
|
$0.3480 / $0.7600 | Buy Now |
|
|
Onlinecomponents.com | Conn Housing M 4 POS Crimp ST Panel Mount Bag RoHS: Compliant | 0 |
|
$0.3770 / $0.5380 | Buy Now |
Part Details for 35180-0400

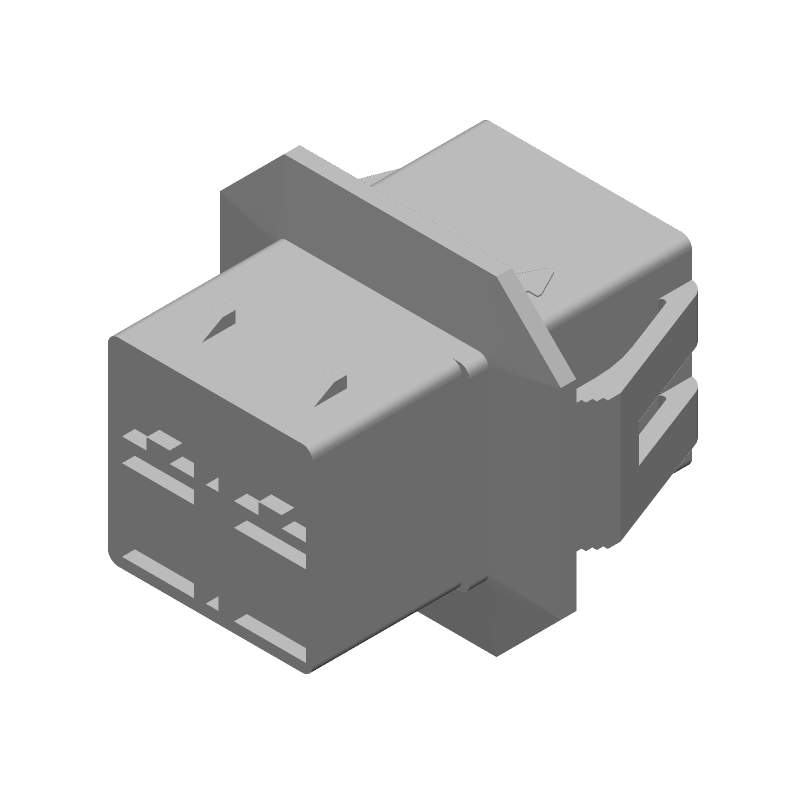

35180-0400 CAD Models
35180-0400 Part Data Attributes
|
|
35180-0400
Molex
Buy Now
Datasheet
|
Compare Parts:
35180-0400
Molex
Rectangular Power Connector, 4 Contact(s), Male, Crimp Terminal, Receptacle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Molex | |
| Additional Feature | BAG PACKAGING & ROHS COMPLIANT | |
| Body Breadth | 1 inch | |
| Body Depth | 1.138 inch | |
| Body Length | 1.043 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | RECTANGULAR POWER CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 10 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 1500VAC V | |
| Durability | 30 Cycles | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 34.2496 N | |
| Insulation Diameter-Min | 0.098 inch | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | NATURAL | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.343 inch | |
| Mating Contact Row Spacing | 0.315 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Option 2 | FRICTION LOCK | |
| Mounting Type | PANEL | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 120 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 15 A | |
| Reference Standard | UL | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 4 | |
| UL Flammability Code | 94V-0 | |
| Wire Size-Max | 14 AWG | |
| Wire Size-Min | 22 AWG | |
| Withdrawl Force-Min | 7.5616 N |
