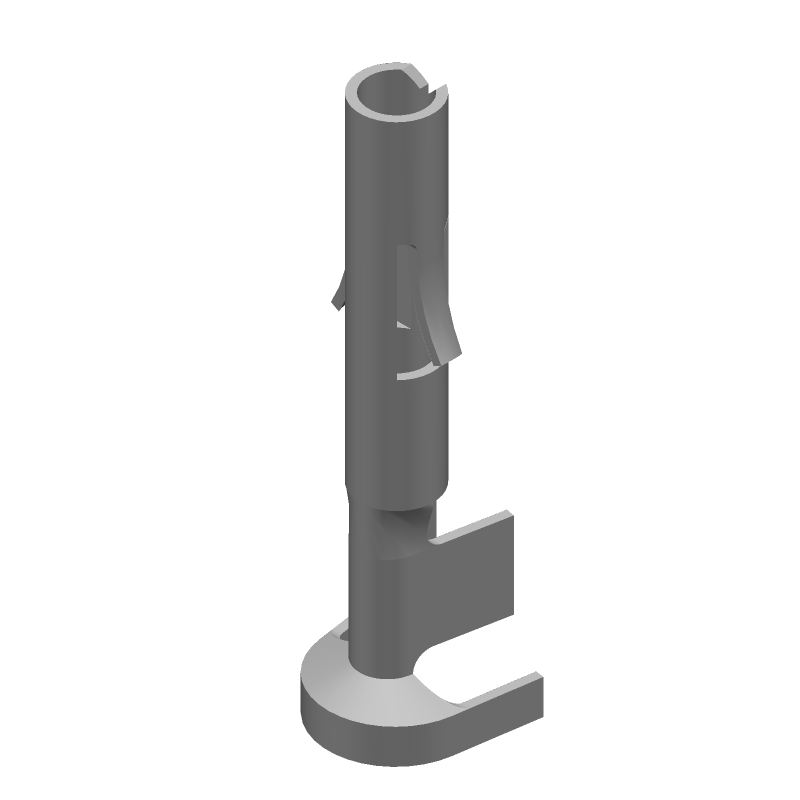

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 350919-3 by TE Connectivity
Results Overview of 350919-3 by TE Connectivity
- Distributor Offerings: (32 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
Price & Stock for 350919-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
90F4792
|
Newark | Contact, Socket, 18-14Awg, Crimp, Product Range:Universal Mate-N-Lok Series, Contact Gender:Socket, Contact Termination Type:Crimp, Wire Size Awg Max:14Awg, Contact Plating:Tin Plated Contacts, Wire Size Awg Min:18Awg, Length:0.78" Rohs Compliant: Yes |Amp Te Connectivity 350919-3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 6155 |
|
$0.1650 / $0.1950 | Buy Now |
|
DISTI #
A25381-ND
|
DigiKey | CONN SOCKET 14-18AWG CRIMP TIN Min Qty: 1 Lead time: 16 Weeks Container: Bulk |
7346 In Stock |
|
$0.1794 / $0.3200 | Buy Now |
|
DISTI #
90F4792
|
Avnet Americas | Contact PIN Crimp ST Cable Mount Loose Piece - Bulk (Alt: 90F4792) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 4 Days Container: Bulk | 6155 Partner Stock |
|
$0.2100 / $0.3230 | Buy Now |
|
DISTI #
350919-3
|
Avnet Americas | Contact PIN Crimp ST Cable Mount Loose Piece - Bulk (Alt: 350919-3) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 15 Weeks, 4 Days Container: Bulk | 0 |
|
$0.1189 / $0.1356 | Buy Now |
|
DISTI #
571-3509193
|
Mouser Electronics | Pin & Socket Connectors UNML SOCKET 18-14 RoHS: Compliant | 14350 |
|
$0.1500 / $0.3200 | Buy Now |
|
DISTI #
V36:1790_07459683
|
Arrow Electronics | Contact SKT Crimp ST Cable Mount 14-18AWG Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2445 | Americas - 19900 |
|
$0.1360 / $0.1874 | Buy Now |
|
DISTI #
V36:1790_14502499
|
Arrow Electronics | Contact SKT Crimp ST Cable Mount 14-18AWG Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks Date Code: 2049 | Americas - 14451 |
|
$0.1367 / $0.1887 | Buy Now |
|
DISTI #
V99:2348_07459683
|
Arrow Electronics | Contact SKT Crimp ST Cable Mount 14-18AWG Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2137 | Americas - 4600 |
|
$0.0604 / $0.1162 | Buy Now |
|
DISTI #
70083328
|
RS | Contact Universal MATE-N-LOK 19A 600VAC 0.25 in. 0.084 in. 18-14 AWG Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk | 4374 |
|
$0.2330 / $0.3230 | Buy Now |
|
|
Future Electronics | Universal Mate-N-Lok Pre-Tin 18-14 AWG Socket Contact RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Bag | 11Bag |
|
$0.1210 / $0.1340 | Buy Now |
Part Details for 350919-3
350919-3 CAD Models
350919-3 Part Data Attributes
|
|
350919-3
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
350919-3
TE Connectivity
UMNL SOK 18-14 PTPPHBZ
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks, 4 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | CONTACT FINISH: TIN | |
| Approvals | CSA, UL | |
| Assembly Item Name | CONTACT | |
| Cable Entry-Max | 0.2 inch | |
| Cable Entry-Min | 0.13 inch | |
| Cable Types | DISCRETE WIRE | |
| Connector Support Type | CONNECTOR ACCESSORY | |
| Construction | STRANDED | |
| Contact Gender | FEMALE | |
| Contact Style | ROUND PIN-SOCKET | |
| Cross Section Area | 2 mm2 | |
| DIN Conformance | NO | |
| Design Use | POWER | |
| IEC Conformance | NO | |
| MIL Conformance | NO | |
| Material | PHOSPHOR BRONZE | |
| Mounting Style | STRAIGHT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Rated Current | 19 A | |
| Rated Voltage | 600 V | |
| Rated Voltage(AC) | 600 V | |
| Terminal Type | CRIMP | |
| Used With | UNIVERSAL MATE-N-LOK PLUG OR CAP HOUSING | |
| Wire Gauge | 14 AWG | |
| Wire Size-Max | 14 AWG | |
| Wire Size-Min | 18 AWG |
350919-3 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 350919-3 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
-
Yes, the 350919-3 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity up to 95% RH.
-
The 350919-3 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
-
Yes, the 350919-3 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors, allowing for a comprehensive connectivity solution.
