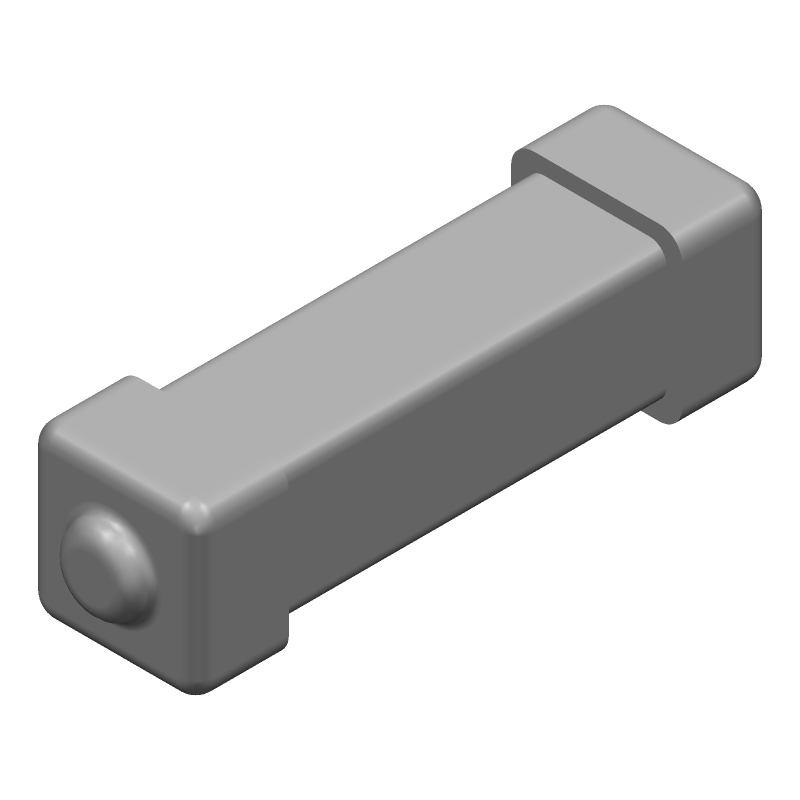

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 3403.0166.24 by Schurter Electronic Components
Results Overview of 3403.0166.24 by Schurter Electronic Components
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
Telecommunications
Communication and Networking
3403.0166.24 Information
3403.0166.24 by Schurter Electronic Components is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLP3403SRHA | Toshiba Electronic Devices & Storage Corporation | Photorelay (MOSFET output, 1-form-a), 20 V/1.5 A, 500 Vrms, S-VSON4T | |
| MC3403N | Texas Instruments | Quad Low-Power General-Purpose Operational Amplifier 14-PDIP 0 to 70 | |
| MC3403PWR | Texas Instruments | Quad Low-Power General-Purpose Operational Amplifier 14-TSSOP 0 to 70 |
Price & Stock for 3403.0166.24
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
486-3387-1-ND
|
DigiKey | FUSE BRD MT 1A 250VAC 125VDC SMD Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21440 In Stock |
|
$0.6075 / $0.7400 | Buy Now |
|
DISTI #
3403.0166.24
|
Avnet Americas | Fuse, Surface Mount, 1 A, 250 VAC, 125 VDC, UMT 250 Series - Tape and Reel (Alt: 3403.0166.24) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 5 Days Container: Reel | 4000 |
|
$0.5135 | Buy Now |
|
DISTI #
693-3403.0166.24
|
Mouser Electronics | Surface Mount Fuses UMT 250 1A 277V Slow RoHS: Compliant | 5115 |
|
$0.6080 / $0.6900 | Buy Now |
|
DISTI #
70472357
|
RS | Fuse, 1A T Non-Resettable, Surface Mount, 125 V dc, 250 V ac Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 3825 |
|
$0.7600 | Buy Now |
|
|
Onlinecomponents.com | UMT 250 FUSE 1A T RoHS: Compliant |
4004 In Stock |
|
$0.5710 / $0.5930 | Buy Now |
|
DISTI #
87134094
|
Verical | Fuse Chip Slow Blow Acting 1A 250V SMD Solder Pad 10.1 X 3 X 3mm Ceramic T/R CCC/CQC/KC/PSE/UL/VDE/cULus Automotive AEC-Q200 Min Qty: 2000 Package Multiple: 2000 Date Code: 2428 | Americas - 4000 |
|
$0.7553 / $0.7709 | Buy Now |
|
DISTI #
87353298
|
Verical | Fuse Chip Slow Blow Acting 1A 250V SMD Solder Pad 10.1 X 3 X 3mm Ceramic T/R CCC/CQC/KC/PSE/UL/VDE/cULus Automotive AEC-Q200 Min Qty: 108 Package Multiple: 1 | Americas - 2395 |
|
$0.5852 / $0.6510 | Buy Now |
|
|
Bristol Electronics | 661 |
|
RFQ | ||
|
DISTI #
3403.0166.24
|
TME | Fuse: fuse, 1A, 250VAC, 125VDC, time-lag, ceramic, 3x10.1mm, SMD Min Qty: 1 | 3980 |
|
$0.3800 / $0.6310 | Buy Now |
|
DISTI #
3403.0166.24
|
IBS Electronics | UMT250 SERIES TIME LAG 125 V 1000 MA NON RESETTABLE FUSE AEC-Q200 &, IATF 16949 Min Qty: 2000 Package Multiple: 1 | 4004 |
|
$0.7423 / $0.7709 | Buy Now |
Part Details for 3403.0166.24
3403.0166.24 CAD Models
3403.0166.24 Part Data Attributes
|
|
3403.0166.24
Schurter Electronic Components
Buy Now
Datasheet
|
Compare Parts:
3403.0166.24
Schurter Electronic Components
Electric Fuse, Time Lag Blow, 1A, 250VAC, 125VDC, 200A (IR), Surface Mount, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SCHURTER AG | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.10.00.40 | |
| Factory Lead Time | 13 Weeks, 5 Days | |
| Samacsys Manufacturer | SCHURTER | |
| Additional Feature | RATED BREAKING CAPACITY AT 125 VDC: 100 A | |
| Blow Characteristic | TIME LAG | |
| Body Breadth | 3 mm | |
| Body Height | 3 mm | |
| Body Length or Diameter | 10.1 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Fuse Size | 3x10.1mm | |
| JESD-609 Code | e3 | |
| Joule Integral-Nom | 2 J | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Packing Method | TR, 13 INCH | |
| Pre-arcing Time-Min | 10 ms | |
| Rated Breaking Capacity | 200 A | |
| Rated Current | 1 A | |
| Rated Voltage(AC) | 250 V | |
| Rated Voltage(DC) | 125 V | |
| Reference Standard | AEC-Q200; CE; CQC; CSA; CUL; IEC; KC; PSE; UKCA; UL; VDE | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Shape | WRAPAROUND |
3403.0166.24 Frequently Asked Questions (FAQ)
-
Schurter provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper fuse performance and reliability.
-
While the datasheet provides temperature ratings, it's essential to consider the fuse's performance in high-temperature environments. Schurter may provide additional information on temperature derating or performance in extreme temperatures upon request.
-
While the fuse is designed to meet certain mechanical stress requirements, it's crucial to consult with Schurter or perform additional testing to ensure the fuse can withstand the specific vibration or shock requirements of your application.
-
Schurter may provide specific guidelines for storing and handling the fuses to prevent damage or degradation. It's essential to follow these guidelines to ensure the fuse's reliability and performance.
-
Schurter may provide guidelines for soldering and assembly to ensure the fuse is properly installed and functions correctly. It's crucial to follow these recommendations to prevent damage or performance issues.
