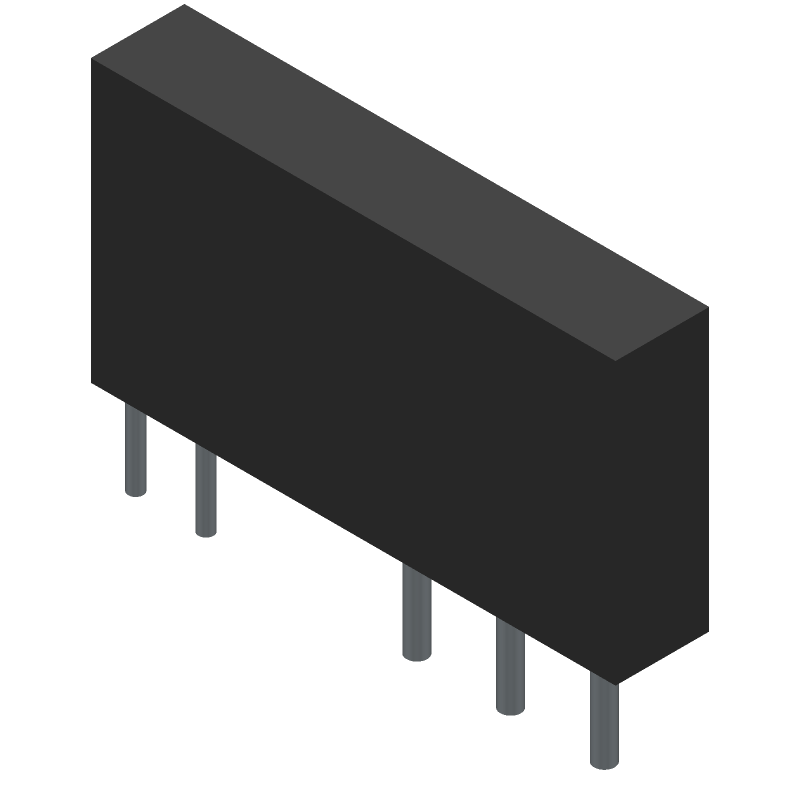

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 34.51.7.012.5010 by FINDER SpA
Results Overview of 34.51.7.012.5010 by FINDER SpA
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
34.51.7.012.5010 Information
34.51.7.012.5010 by FINDER SpA is an Other Relay.
Other Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 8501002YC | Rochester Electronics LLC | 8501002YC - Microprocessor, 16-Bit, 6MHz, CMOS, CQFP68 - Dual marked (MQ80186-6/BYC) | |
| 8501001YA | Rochester Electronics LLC | 80186 - High-Integration 16-Bit Microprocessor, CQFP68 (8501001YA) | |
| PTH05010WAZ | Texas Instruments | 15 A, 5-V Input Wide-Output Adjust Plug-in Power Module 10-Surface Mount Module -40 to 85 |
Price & Stock for 34.51.7.012.5010
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M7140
|
Newark | Relay, Spdt, 250Vac, 6A, Contact Configuration:Spdt, Coil Voltage:12Vdc, Contact Current:6A, Product Range:34 Series, Relay Mounting:Through Hole, Coil Type:Dc Sensitive, Contact Voltage Vac:250Vac, Relay Terminals:Solder Rohs Compliant: Yes |Finder 34.51.7.012.5010 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1 |
|
$1.6200 | Buy Now |
|
DISTI #
87341726
|
Verical | Power Relay 12VDC 12VAC 6A () RoHS: Compliant Min Qty: 6 Package Multiple: 1 | Americas - 82 |
|
$12.4180 / $13.6640 | Buy Now |
|
DISTI #
34.51.7.012.5010
|
TME | Relay: electromagnetic, SPDT, Ucoil: 12VDC, Icontacts max: 6A, 840Ω Min Qty: 1 | 429 |
|
$8.9500 / $9.8400 | Buy Now |
Part Details for 34.51.7.012.5010
34.51.7.012.5010 CAD Models
34.51.7.012.5010 Part Data Attributes
|
|
34.51.7.012.5010
FINDER SpA
Buy Now
Datasheet
|
Compare Parts:
34.51.7.012.5010
FINDER SpA
Electromechanical Relay, SPDT, 18VDC (Coil), 170mW (Coil), Random, AC/DC Output
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | FINDER SPA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | FINDER | |
| Body Breadth | 5 mm | |
| Body Height | 15 mm | |
| Body Length or Diameter | 28 mm | |
| Coil Current(DC)-Max | 0.014 A | |
| Coil Operate Voltage(DC) | 8.4 V | |
| Coil Power | 170 mW | |
| Coil Resistance | 847 Ω | |
| Coil Voltage(DC)-Max | 18 V | |
| Coil Voltage-Nom | 12 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Rating R Load | 10A@400VAC | |
| Contact Current(AC)-Max | 10 A | |
| Contact Voltage(AC)-Max | 400 V | |
| Contact/Output Supply Type | AC | |
| Electrical Life | 60000 Cycle(s) | |
| End Contact Material | Silver Nickel | |
| End Contact Plating | GOLD | |
| Input Switching Control Type | Random | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Terminals | 5 | |
| Operate Time | 5 ms | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Physical Dimension | 28mm x 5mm x 15mm | |
| Reference Standard | CSA; PCT; RINA; UL; VDE | |
| Relay Action | MOMENTARY | |
| Relay Form | 1 FORM C | |
| Relay Function | SPDT | |
| Relay Type | POWER RELAY | |
| Release Time | 3 ms | |
| Sealing | IP20 | |
| Surface Mount | NO | |
| Terminal Length | 0.003500127000254001 inch | |
| Termination Type | SOLDER |
34.51.7.012.5010 Frequently Asked Questions (FAQ)
-
The maximum switching frequency of the relay is 20 operations per minute, but it's recommended to limit it to 10 operations per minute for a longer lifespan.
-
While the relay module is designed to withstand some vibration, it's not recommended for extreme vibration environments. If you need to use it in a high-vibration environment, consider adding additional mechanical support or using a relay module specifically designed for high-vibration applications.
-
Make sure to provide adequate airflow around the relay module, and avoid blocking the ventilation holes. If you're using the relay module in an enclosed space, consider adding a cooling system or using a relay module with a built-in cooling system.
-
The relay module is designed to handle moderate inrush currents, but if your load has an extremely high inrush current, you may need to add additional protection, such as an inrush current limiter or a soft-start circuit.
-
The recommended wire size depends on the load current and the distance between the relay module and the load. As a general rule, use a wire size that can handle at least 1.5 times the maximum load current. Consult the datasheet or a wire size chart for more information.
