Resistors / Variable Resistors / 3386H-1-102LF
Datasheets

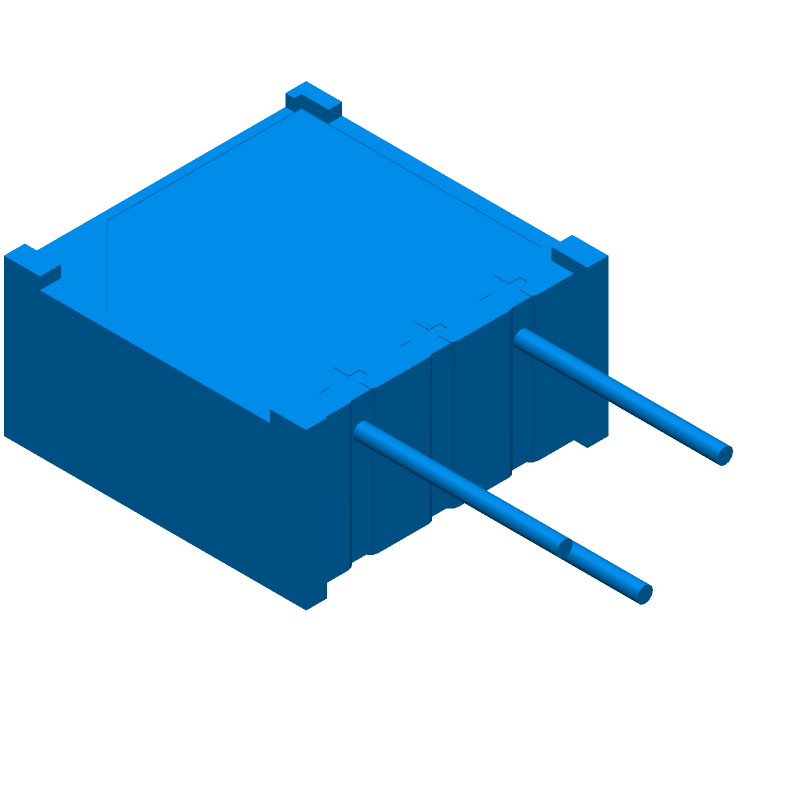

3386H-1-102LF by: Bourns Inc

Trimmer, Cermet, 0.5W, 1000ohm, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 3819, 3/8 INCH, SQUARE, 3 PINS

Part Details for 3386H-1-102LF by Bourns Inc

Results Overview of 3386H-1-102LF by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Environmental Monitoring Industrial Automation Audio and Video Systems Computing and Data Storage Agriculture Technology Medical Imaging Entertainment and Gaming

3386H-1-102LF Information

3386H-1-102LF by Bourns Inc is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for 3386H-1-102LF

Part # Distributor Description Stock Price Buy
DISTI # 39K2232
Newark Trimmer, 1K, Track Resistance:1Kohm, No. Of Turns:1Turns, Potentiometer Mounting:Through Hole, Product Range:Trimpot 3386 Series, Power Rating:500Mw, Resistance Tolerance:± 10%, Temperature Coefficient:± 100Ppm/°C, Automotive Rohs Compliant: Yes |Bourns 3386H-1-102LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2
  • 1 $0.5360
  • 10 $0.5360
  • 25 $0.5360
  • 50 $0.5360
  • 100 $0.5360
  • 500 $0.5360
  • 1,000 $0.5360
  • 2,500 $0.5360
$0.5360 Buy Now
DISTI # 3386H-102LF-ND
DigiKey TRIMMER 1K OHM 0.5W PC PIN SIDE Min Qty: 1 Lead time: 10 Weeks Container: Tube 130
In Stock
  • 1 $1.3700
  • 10 $1.1560
  • 100 $0.9712
  • 500 $0.8586
  • 1,000 $0.8140
  • 5,000 $0.7187
  • 10,000 $0.6810
$0.6810 / $1.3700 Buy Now
DISTI # 3386H-1-102LF
Avnet Americas Resistor Trimmer, Cermet, 1 kOhm, ? 10%, 500 mW, 1 Turn, Single Turn, Through Hole - Rail/Tube (Alt: 3386H-1-102LF) RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 10 Weeks, 0 Days Container: Tube 0
  • 200 $0.6008
  • 400 $0.5913
  • 600 $0.5819
  • 1,000 $0.5725
  • 2,000 $0.5617
$0.5617 / $0.6008 Buy Now
DISTI # 652-3386H-1-102LF
Mouser Electronics Trimmer Resistors - Through Hole 3/8" 1Kohms 10% 0.5Watts Square RoHS: Compliant 362
  • 1 $1.3700
  • 10 $1.0300
  • 100 $0.8930
  • 500 $0.8440
  • 1,000 $0.7900
  • 2,500 $0.7180
  • 10,000 $0.7040
$0.7040 / $1.3700 Buy Now
DISTI # 70154083
RS Trimmer, Cermet, Rest 1 Kilohms, PCB, 1 Turn, Pwr-Rtg 0.5W Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Bulk 113
  • 1 $1.3800
  • 5 $1.2700
  • 10 $1.2200
  • 100 $1.1100
  • 250 $1.0400
$1.0400 / $1.3800 Buy Now
Onlinecomponents.com Res Cermet Trimmer 1K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 4.83 X 9.53mm) Pin Thru-Hole Tube RoHS: Compliant 575 In Stock
  • 100 $0.9040
  • 300 $0.7340
  • 1,000 $0.6810
  • 2,500 $0.6350
  • 5,000 $0.6260
  • 7,500 $0.6160
  • 10,000 $0.6070
  • 15,000 $0.5980
$0.5980 / $0.9040 Buy Now
DISTI # 60856584
Verical Res Cermet Trimmer 1K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 4.83 X 9.53mm) Pin Thru-Hole Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2122 Americas - 500
  • 100 $1.1752
  • 300 $0.9542
  • 1,000 $0.8853
  • 2,500 $0.8255
  • 5,000 $0.8138
$0.8138 / $1.1752 Buy Now
Quest Components RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5 W, 1000 OHM, ROHS COMPLIANT 1589
  • 1 $2.1250
  • 536 $0.8925
  • 1,121 $0.8330
$0.8330 / $2.1250 Buy Now
Quest Components RESISTOR, TRIMMER, CERMET, 1 TURN(S), 0.5 W, 1000 OHM, ROHS COMPLIANT 960
  • 1 $2.1200
  • 284 $0.9805
  • 613 $0.8745
$0.8745 / $2.1200 Buy Now
DISTI # 3386H-1-102LF
TTI Trimmer Resistors - Through Hole 3/8" 1Kohms 10% 0.5Watts Square RoHS: Compliant pbFree: Pb-Free Min Qty: 200 Package Multiple: 10 Container: Tube Americas - 0
  • 200 $0.8800
  • 250 $0.8600
  • 500 $0.7100
  • 1,000 $0.6600
  • 2,500 $0.6200
  • 5,000 $0.6100
$0.6100 / $0.8800 Buy Now
DISTI # 3386H-1-102LF
TME Potentiometer: mounting, single turn,vertical, 1kΩ, 500mW, ±10% Min Qty: 1 127
  • 1 $1.5400
  • 10 $1.2000
  • 50 $0.7900
  • 200 $0.7800
$0.7800 / $1.5400 Buy Now
DISTI # 3386H-1-102LF
IBS Electronics 1 KOHMS 0.5W 1/2W PC PINS THROUGH HOLE TRIMMER POTENTIOMETER CERMET 1.0 TURN SIDE ADJUSTMENT Min Qty: 100 Package Multiple: 1 500
  • 100 $1.1752
  • 300 $0.9542
  • 1,000 $0.8853
  • 2,500 $0.8255
  • 5,000 $0.8138
  • 7,500 $0.8008
  • 10,000 $0.7891
  • 15,000 $0.7774
$0.7774 / $1.1752 Buy Now
DISTI # 3386H-1-102LF
Avnet Abacus Resistor Trimmer Cermet 1 kOhm 10 500 mW 1 Turn Single Turn Through Hole (Alt: 3386H-1-102LF) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now
LCSC 10% 100ppm/ 500mW 1k Plugin Potentiometers Variable Resistors ROHS 10
  • 1 $1.3613
  • 10 $1.3341
  • 30 $1.3160
  • 100 $1.2964
$1.2964 / $1.3613 Buy Now
Master Electronics Res Cermet Trimmer 1K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 4.83 X 9.53mm) Pin Thru-Hole Tube RoHS: Compliant 575 In Stock
  • 100 $0.9040
  • 300 $0.7340
  • 1,000 $0.6810
  • 2,500 $0.6350
  • 5,000 $0.6260
  • 7,500 $0.6160
  • 10,000 $0.6070
  • 15,000 $0.5980
$0.5980 / $0.9040 Buy Now
New Advantage Corporation POT Cermet Trim, 1K00 Ohm, 10% 1/2W Single Turn 3.15mm, RoHS, Tube RoHS: Compliant Min Qty: 1 Package Multiple: 100 200
  • 200 $1.3000
$1.3000 Buy Now

Part Details for 3386H-1-102LF

3386H-1-102LF Part Data Attributes

Parametric Data
3386H-1-102LF Bourns Inc
Buy Now Datasheet
Compare Parts:
3386H-1-102LF Bourns Inc Trimmer, Cermet, 0.5W, 1000ohm, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 3819, 3/8 INCH, SQUARE, 3 PINS
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description RADIAL LEADED
Reach Compliance Code compliant
Factory Lead Time 10 Weeks
Samacsys Manufacturer Bourns
Actuator Orientation HORIZONTAL
Actuator Type SCREW
Construction Sealed
Ganging Number 1
JESD-609 Code e3
Lead Diameter 0.51 mm
Lead Length 5.97 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 3
Number of Turns 1
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 9.53 mm
Package Length 9.53 mm
Package Shape RECTANGULAR PACKAGE
Package Style Radial
Package Width 4.83 mm
Packing Method Tube
Rated Power Dissipation (P) 0.5 W
Rated Temperature 85 °C
Resistance 1000 Ω
Resistance Law LINEAR
Resistor Type TRIMMER
Rotational Angle 280 deg
Surface Mount NO
Technology CERMET
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN
Terminal Shape WIRE
Tolerance 10%
Working Voltage 300 V

Alternate Parts for 3386H-1-102LF

This table gives cross-reference parts and alternative options found for 3386H-1-102LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 3386H-1-102LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
3386H-1-102 Bourns Inc Check for Price Trimmer, Cermet, 0.5W, 1000ohm, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 3819, 3/8 INCH, SQUARE, 3 PINS 3386H-1-102LF vs 3386H-1-102
Part Number Manufacturer Composite Price Description Compare
3386H-EY5-102LF Bourns Inc $1.7365 Trimmer, Cermet, 0.5W, 1000ohm, 10% +/-Tol, 100ppm/Cel, 1 Turn(s), 3386H-1-102LF vs 3386H-EY5-102LF
3386H-1-102TLF Bourns Inc $1.7417 Trimmer 3386H-1-102LF vs 3386H-1-102TLF
3386H-1-102TT Bourns Inc Check for Price RES,TAPPED,CERMET,1K OHMS,300WVDC,10% +/-TOL,-100,100PPM TC,3838 CASE 3386H-1-102LF vs 3386H-1-102TT

3386H-1-102LF Frequently Asked Questions (FAQ)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.

  • The 3386H-1-102LF is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Its shielded construction and magnetic field cancellation help reduce noise and EMI. However, additional filtering or shielding may be necessary depending on the specific application.

  • While the datasheet specifies a temperature range of -40°C to +125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation within the desired temperature range.

  • The 3386H-1-102LF is a commercial-grade component. For high-reliability or safety-critical applications, consider using a component with a higher reliability rating, such as those with a 'Q' or 'M' suffix, which are designed for more stringent requirements.

  • Follow the recommended soldering profile and handling procedures to prevent damage. Ensure the inductor is securely attached to the PCB using the recommended land pattern and soldering techniques to prevent mechanical stress and thermal fatigue.
