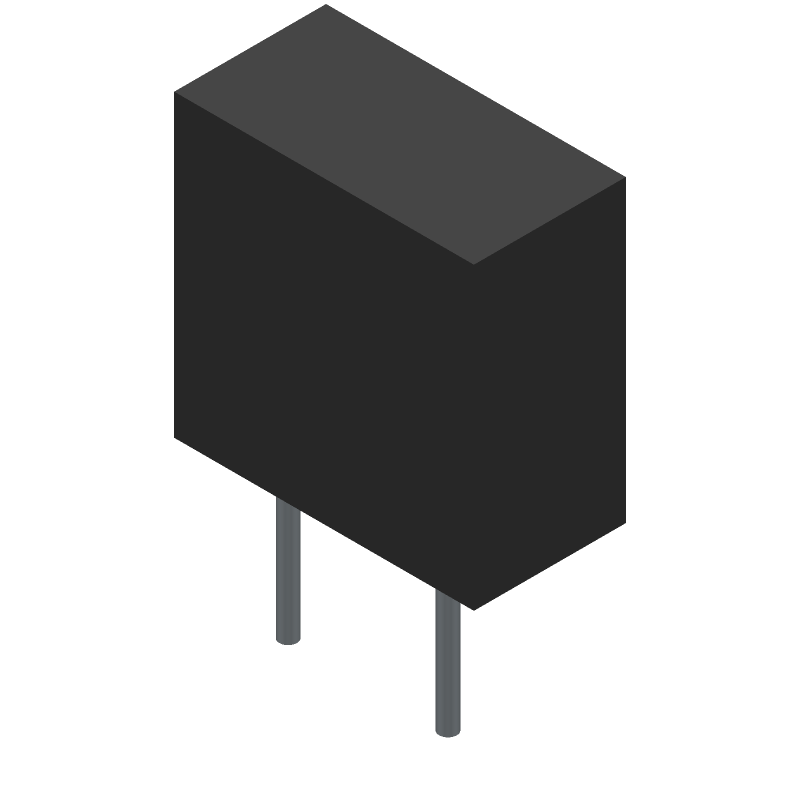

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 3386X-1-152LF by Bourns Inc
Results Overview of 3386X-1-152LF by Bourns Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Computing and Data Storage
Agriculture Technology
Medical Imaging
Entertainment and Gaming
3386X-1-152LF Information
3386X-1-152LF by Bourns Inc is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for 3386X-1-152LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06X9160
|
Newark | Trimmer, Pot, 1K5, 1Turn, Th, Trimmer Type:Single Turn, Element Material:Cermet, Adjustment Type:Side Adjust, Track Resistance:1.5Kohm, Potentiometer Mounting:Through Hole, No. Of Turns:1Turns, Product Range:3386 Series, Msl:- Rohs Compliant: Yes |Bourns 3386X-1-152LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 6 |
|
$0.2390 | Buy Now |
|
DISTI #
05AK4672
|
Newark | Trimmer Res.-Through Hole 3/8 1.5Kohms 10 |Bourns 3386X-1-152LF RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.6990 / $0.9950 | Buy Now |
|
DISTI #
3386X-1-152LF-ND
|
DigiKey | TRIMMER 1.5KOHM 0.5W PC PIN SIDE Min Qty: 1 Lead time: 10 Weeks Container: Tube |
1738 In Stock |
|
$0.6810 / $1.3700 | Buy Now |
|
DISTI #
3386X-1-152LF
|
Avnet Americas | Resistor Trimmer, Cermet, 1.5 kOhm, ? 10%, 500 mW, 1 Turn, Single Turn, Through Hole - Rail/Tube (Alt: 3386X-1-152LF) RoHS: Compliant Min Qty: 2000 Package Multiple: 100 Lead time: 10 Weeks, 0 Days Container: Tube | 0 |
|
$0.5617 / $0.6008 | Buy Now |
|
DISTI #
06X9160
|
Avnet Americas | Resistor Trimmer, Cermet, 1.5 kOhm, ? 10%, 500 mW, 1 Turn, Single Turn, Through Hole - Bulk (Alt: 06X9160) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 4 Days Container: Bulk | 0 |
|
$0.8380 / $0.9880 | Buy Now |
|
DISTI #
652-3386X-1-152LF
|
Mouser Electronics | Trimmer Resistors - Through Hole 3/8" 1.5Kohms 10% 0.5Watts Square RoHS: Compliant | 1343 |
|
$0.6030 / $0.9500 | Buy Now |
|
DISTI #
V99:2348_06237630
|
Arrow Electronics | Res Cermet Trimmer 1.5K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 4.83 X 9.53mm) Pin Thru-Hole Tube RoHS: Compliant Min Qty: 128 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2443 | Americas - 1135 |
|
$0.5965 / $0.7836 | Buy Now |
|
DISTI #
70408081
|
RS | 3/8" Sq, Thru-Hole, TRIMMER, 1.5 Kilohms, Cermet, Single Turn Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$1.0200 / $1.1800 | RFQ |
|
|
Onlinecomponents.com | Res Cermet Trimmer 1.5K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 4.83 X 9.53mm) Pin Thru-Hole Tube RoHS: Compliant |
1384 Partner Stock |
|
$0.6580 / $0.9880 | Buy Now |
|
DISTI #
61723730
|
Verical | Res Cermet Trimmer 1.5K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 4.83 X 9.53mm) Pin Thru-Hole Tube RoHS: Compliant Min Qty: 98 Package Multiple: 1 | Americas - 1384 |
|
$0.6100 / $0.6400 | Buy Now |
Part Details for 3386X-1-152LF
3386X-1-152LF CAD Models
3386X-1-152LF Part Data Attributes
|
|
3386X-1-152LF
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
3386X-1-152LF
Bourns Inc
TRIMMER - 3/8" SQ ST CERMET
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Actuator Orientation | HORIZONTAL | |
| Actuator Type | SCREW | |
| Construction | Rectangular | |
| Ganging Number | 1 | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.51 mm | |
| Lead Length | 5.97 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 3 | |
| Number of Turns | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 9.53 mm | |
| Package Length | 9.53 mm | |
| Package Style | PCB Mount | |
| Package Width | 4.83 mm | |
| Packing Method | TUBE | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 85 °C | |
| Resistance | 1500 Ω | |
| Resistance Law | LINEAR | |
| Resistor Type | TRIMMER | |
| Rotational Angle | 280 deg | |
| Surface Mount | NO | |
| Technology | CERMET | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | TIN | |
| Terminal Shape | WIRE | |
| Tolerance | 10% |
