3386P-1-222LF by: Bourns Inc

TRIMMER - 3/8" SQ ST CERMET

Part Details for 3386P-1-222LF by Bourns Inc

Results Overview of 3386P-1-222LF by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Environmental Monitoring Industrial Automation Audio and Video Systems Computing and Data Storage Agriculture Technology Medical Imaging Entertainment and Gaming

3386P-1-222LF Information

3386P-1-222LF by Bourns Inc is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for 3386P-1-222LF

Part # Distributor Description Stock Price Buy
DISTI # 06X9144
Newark Trimmer, Pot, 2K2, 1Turn, Th, Trimmer Type:Single Turn, Element Material:Cermet, Adjustment Type:Top Adjust, Track Resistance:2.2Kohm, Potentiometer Mounting:Through Hole, No. Of Turns:1Turns, Product Range:3386 Series, Msl:- Rohs Compliant: Yes |Bourns 3386P-1-222LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 5
  • 1 $0.2710
  • 10 $0.2710
  • 25 $0.2710
  • 50 $0.2710
  • 100 $0.2710
  • 500 $0.2710
  • 1,000 $0.2710
  • 2,500 $0.2710
$0.2710 Buy Now
DISTI # 05AK4666
Newark Trimmer Res.-Through Hole 3/8 2.2Kohms 10 |Bourns 3386P-1-222LF RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $0.9950
  • 500 $0.8980
  • 1,000 $0.7810
  • 2,500 $0.6990
$0.6990 / $0.9950 Buy Now
DISTI # 118-3386P-1-222LF-ND
DigiKey TRIMMER 2.2K OHM 0.5W PC PIN TOP Min Qty: 1 Lead time: 10 Weeks Container: Tube 1711
In Stock
  • 1 $1.3700
  • 10 $1.1560
  • 100 $0.9712
  • 500 $0.8586
  • 1,000 $0.8140
  • 5,000 $0.7187
  • 10,000 $0.6810
$0.6810 / $1.3700 Buy Now
DISTI # 06X9144
Avnet Americas Resistor Trimmer, Cermet, 2.2 kOhm, ? 10%, 500 mW, 1 Turn, Single Turn, Through Hole - Bulk (Alt: 06X9144) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 4 Days Container: Bulk 5 Partner Stock
  • 1 $1.1800
  • 10 $0.9030
  • 25 $0.8740
  • 50 $0.8440
  • 100 $0.8150
$0.8150 / $1.1800 Buy Now
DISTI # 3386P-1-222LF
Avnet Americas Resistor Trimmer, Cermet, 2.2 kOhm, ? 10%, 500 mW, 1 Turn, Single Turn, Through Hole - Rail/Tube (Alt: 3386P-1-222LF) RoHS: Compliant Min Qty: 2000 Package Multiple: 100 Lead time: 10 Weeks, 0 Days Container: Tube 0
  • 2,000 $0.6008
  • 2,200 $0.5913
  • 4,200 $0.5819
  • 10,000 $0.5725
  • 20,000 $0.5617
$0.5617 / $0.6008 Buy Now
DISTI # 652-3386P-1-222LF
Mouser Electronics Trimmer Resistors - Through Hole 3/8" 2.2Kohms 10% 0.5Watts Square RoHS: Compliant 1609
  • 1 $1.3700
  • 10 $0.9750
  • 100 $0.9060
  • 500 $0.8550
  • 1,000 $0.7180
  • 2,500 $0.7150
  • 10,000 $0.6810
$0.6810 / $1.3700 Buy Now
DISTI # 70408067
RS 3/8" Sq, Thru-Hole, TRIMMER, 2.2 Kilohms, Cermet, Single Turn Min Qty: 1 Package Multiple: 1 Container: Bulk 0
  • 1 $1.3000
  • 10 $1.2400
  • 50 $1.1800
  • 100 $1.1200
$1.1200 / $1.3000 RFQ
Onlinecomponents.com Res Cermet Trimmer 2.2K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 9.53 X 4.83mm) Pin Thru-Hole Tube RoHS: Compliant 1006 Partner Stock
  • 100 $0.9880
  • 300 $0.9730
  • 500 $0.9590
  • 1,000 $0.7190
  • 1,500 $0.6710
  • 2,000 $0.6580
$0.6580 / $0.9880 Buy Now
DISTI # 61724017
Verical Res Cermet Trimmer 2.2K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 9.53 X 4.83mm) Pin Thru-Hole Tube RoHS: Compliant Min Qty: 98 Package Multiple: 1 Americas - 1006
  • 1 $0.6400
  • 500 $0.6300
  • 1,000 $0.6100
$0.6100 / $0.6400 Buy Now
DISTI # 3386P-1-222LF
Avnet Abacus Resistor Trimmer Cermet 22 kOhm 10 500 mW 1 Turn Single Turn Through Hole (Alt: 3386P-1-222LF) RoHS: Compliant Min Qty: 2000 Package Multiple: 100 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics Res Cermet Trimmer 2.2K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 3.15mm (9.53 X 9.53 X 4.83mm) Pin Thru-Hole Tube RoHS: Compliant 1006 Partner Stock
  • 100 $0.9880
  • 300 $0.9730
  • 500 $0.9590
  • 1,000 $0.7190
  • 1,500 $0.6710
  • 2,000 $0.6580
$0.6580 / $0.9880 Buy Now

Part Details for 3386P-1-222LF

3386P-1-222LF CAD Models

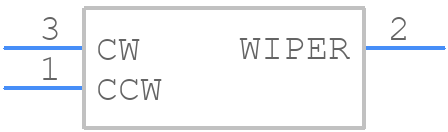

  • Part Symbol

    Part Symbol

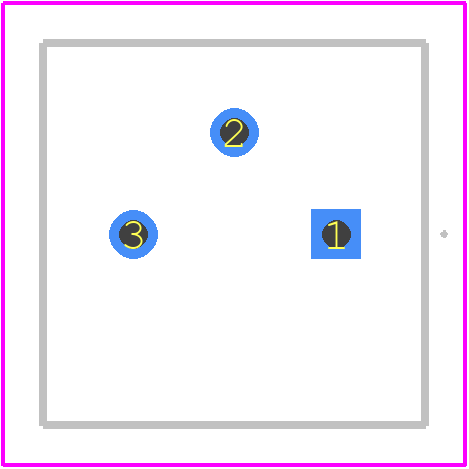

  • Footprint

    footprint

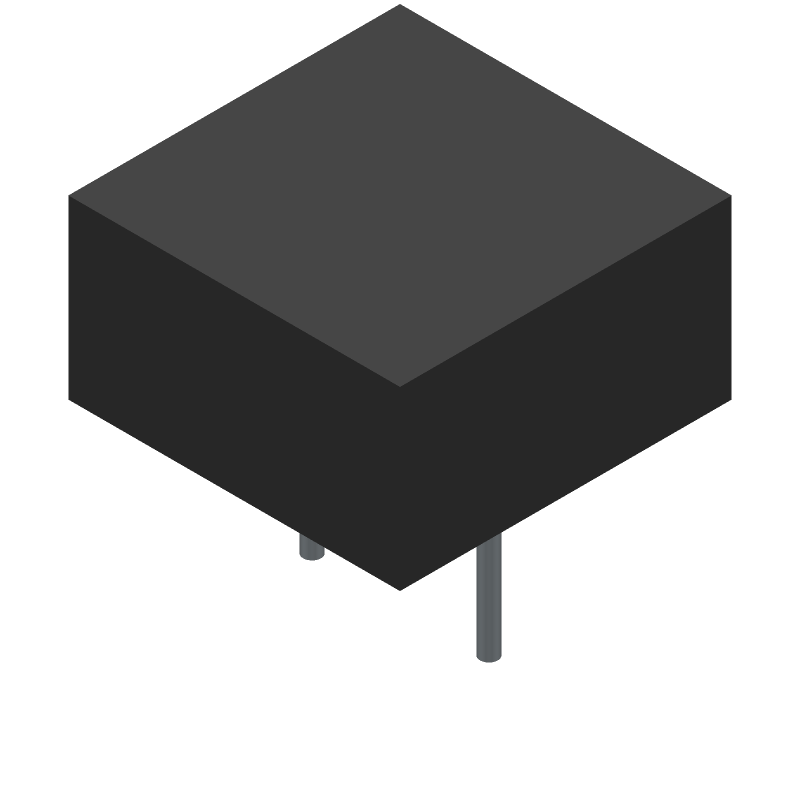

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

3386P-1-222LF Part Data Attributes

Parametric Data
3386P-1-222LF Bourns Inc
Buy Now Datasheet
Compare Parts:
3386P-1-222LF Bourns Inc TRIMMER - 3/8" SQ ST CERMET
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Reach Compliance Code compliant
Factory Lead Time 10 Weeks
Samacsys Manufacturer Bourns
Actuator Orientation VERTICAL
Actuator Type SCREW
Construction Rectangular
Ganging Number 1
JESD-609 Code e3
Lead Diameter 0.51 mm
Lead Length 5.97 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 3
Number of Turns 1
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 4.83 mm
Package Length 9.53 mm
Package Style PCB Mount
Package Width 9.53 mm
Packing Method TUBE
Rated Power Dissipation (P) 0.5 W
Rated Temperature 85 °C
Resistance 2200 Ω
Resistance Law LINEAR
Resistor Type TRIMMER
Rotational Angle 280 deg
Surface Mount NO
Technology CERMET
Temperature Coefficient 100 ppm/°C
Terminal Finish TIN
Terminal Shape WIRE
Tolerance 10%
