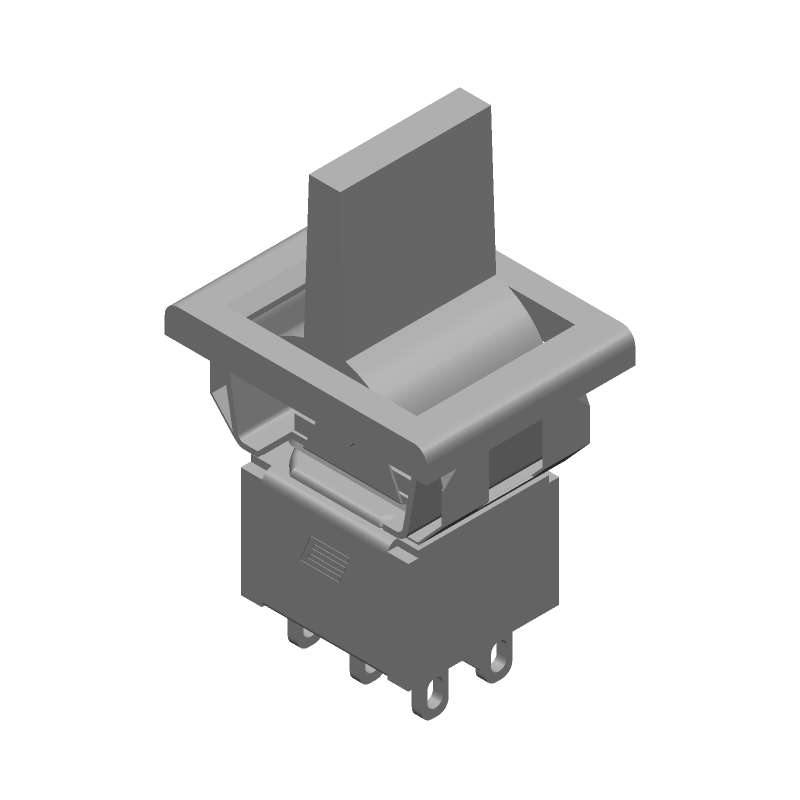

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 300DP4R7BLKM1QEBLK by E-Switch Inc
Results Overview of 300DP4R7BLKM1QEBLK by E-Switch Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
300DP4R7BLKM1QEBLK Information
300DP4R7BLKM1QEBLK by E-Switch Inc is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 300DP4R7BLKM1QEBLK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16N0869
|
Newark | Ea Rohs Compliant: Yes |E-Switch 300DP4R7BLKM1QEBLK RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.1300 / $5.9900 | Buy Now |
|
DISTI #
300DP4R7BLKM1QEBLK-ND
|
DigiKey | SWITCH ROCKER DPDT 5A 120V Min Qty: 200 Lead time: 12 Weeks Container: Bulk | Temporarily Out of Stock |
|
$4.3343 | Buy Now |
|
DISTI #
612-300DP4R7BLKM1QEB
|
Mouser Electronics | Rocker Switches ROCKER, 5A 120VAC/28VDC, DPDT (On)-Off-(On), Panel Mount, Snap-In Solder RoHS: Compliant | 0 |
|
$4.3300 | Order Now |
Part Details for 300DP4R7BLKM1QEBLK
300DP4R7BLKM1QEBLK CAD Models
300DP4R7BLKM1QEBLK Part Data Attributes
|
|
300DP4R7BLKM1QEBLK
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
300DP4R7BLKM1QEBLK
E-Switch Inc
Toggle Switch, DPDT, (on)-off-(on), Momentary, 5A, 28VDC, Quick Connect Terminal, Paddle Actuator, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Color | BLACK | |
| Actuator Length | 0.542 inch | |
| Actuator Type | PADDLE | |
| Body Breadth | 11.43 mm | |
| Body Height | 9.4488 mm | |
| Body Length or Diameter | 11.43 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 2A@250VAC | |
| Contact Current(AC)-Max | 2 A | |
| Contact Current(DC)-Max | 5 A | |
| Contact (DC) Max Rating R Load | 5A@28VDC | |
| Contact Function | (ON)-OFF-(ON) | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 28 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | SILVER | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Sealing | EPOXY | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | DPDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Length | 0.078 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | QUICK CONNECT |
