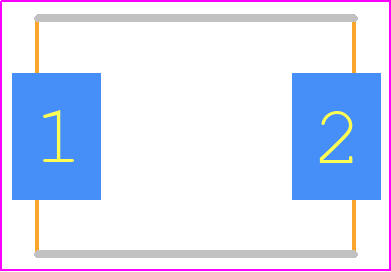

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 3.0SMCJ18CA by Littelfuse Inc
Results Overview of 3.0SMCJ18CA by Littelfuse Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
3.0SMCJ18CA Information
3.0SMCJ18CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 3.0SMCJ18CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AK9894
|
Newark | Tvs Diode, Bidir, 18V, 3Kw, Smc Rohs Compliant: Yes |Littelfuse 3.0SMCJ18CA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1969 |
|
$0.4960 | Buy Now |
|
DISTI #
48AJ7950
|
Newark | Tvs 3Kw 18V 5%bi Do-214Ab Tr13 Rohs/ Tr Rohs Compliant: Yes |Littelfuse 3.0SMCJ18CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3460 / $0.4090 | Buy Now |
|
DISTI #
18-3.0SMCJ18CATR-ND
|
DigiKey | TVS DIODE 18VWM 29.2VC DO214AB Min Qty: 3000 Lead time: 13 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.3250 / $0.3438 | Buy Now |
|
DISTI #
576-3.0SMCJ18CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 3.0SMCJ - CA 18V RoHS: Compliant | 0 |
|
$0.3250 / $0.3430 | Order Now |
|
DISTI #
75573055
|
RS | TVS 3KW 18V 5%BI DO-214AB TR13 RoHS Min Qty: 3000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5000 | RFQ |
|
DISTI #
3.0SMCJ18CA-LF
|
TME | Diode: TVS, 3kW, 20÷22.1V, 102.7A, bidirectional, ±5%, DO214AB Min Qty: 1 | 0 |
|
$0.3610 / $0.7780 | RFQ |
Part Details for 3.0SMCJ18CA
3.0SMCJ18CA CAD Models
3.0SMCJ18CA Part Data Attributes
|
|
3.0SMCJ18CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
3.0SMCJ18CA
Littelfuse Inc
Trans Voltage Suppressor Diode, 3000W, 18V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 22.1 V | |
| Breakdown Voltage-Min | 20 V | |
| Breakdown Voltage-Nom | 21.05 V | |
| Clamping Voltage-Max | 29.2 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Non-rep Peak Rev Power Dis-Max | 3000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 18 V | |
| Reverse Current-Max | 2 µA | |
| Reverse Test Voltage | 18 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for 3.0SMCJ18CA
This table gives cross-reference parts and alternative options found for 3.0SMCJ18CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 3.0SMCJ18CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 3.0SMCJ18CA | Galaxy Microelectronics | Check for Price | Surface Mount TVS Diode; Direction: Bidirectional; V(BR) Typ (V): 20V; PPK Max (W): 1500W; Condition: 10×1000us; VRWM Max (V): 18V; VBR Min (V): 20V; VBR Max (V): 22.1V; IR Max (uA): 5uA; VC Max (V): 29.2V; Package: SMC | 3.0SMCJ18CA vs 3.0SMCJ18CA |
3.0SMCJ18CA Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the 3.0SMCJ18CA can be found in the Littelfuse application note 'Surface Mount Land Pattern and Stencil Recommendations' (document number: 10101).
-
To ensure reliability in high-temperature applications, it is recommended to follow the derating curves provided in the datasheet, and to consider the thermal resistance of the component and the PCB. Additionally, it is recommended to use a thermal interface material (TIM) to improve heat transfer between the component and the heat sink.
-
Yes, the 3.0SMCJ18CA is AEC-Q101 qualified, which means it meets the requirements for use in automotive applications. However, it is recommended to consult with Littelfuse's automotive support team to ensure that the component meets the specific requirements of the application.
-
The 3.0SMCJ18CA is a sensitive component and requires proper handling during assembly and rework. It is recommended to follow the guidelines provided in the Littelfuse application note 'Handling and Assembly of Surface Mount Components' (document number: 10102).
-
The recommended soldering profile for the 3.0SMCJ18CA is a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It is recommended to follow the guidelines provided in the Littelfuse application note 'Soldering Recommendations for Surface Mount Components' (document number: 10103).
