Connectors / Headers and Edge Type Connectors / 3-641212-4
Datasheets

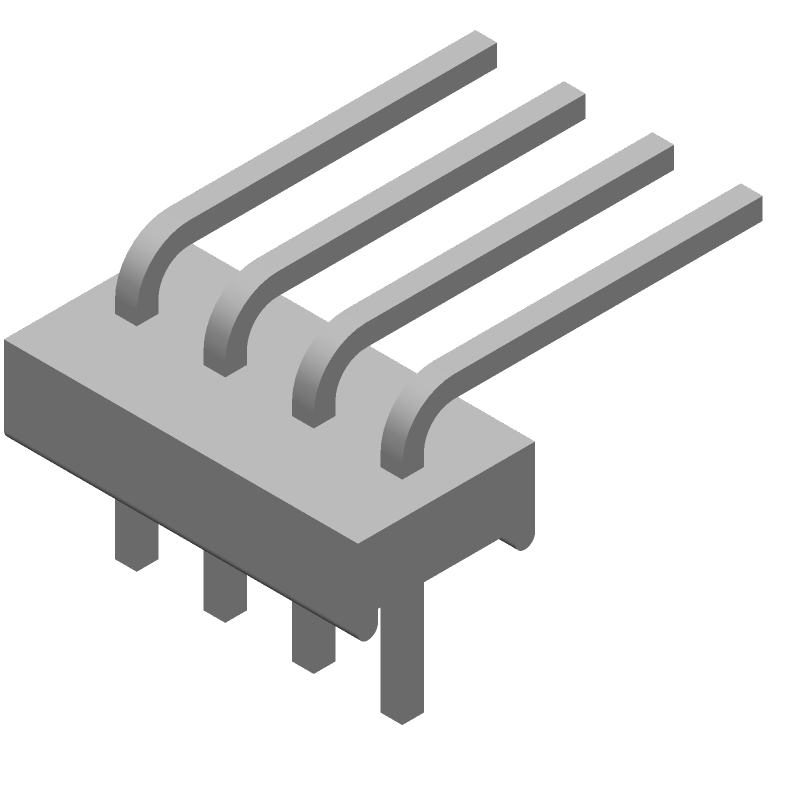

3-641212-4 by: TE Connectivity

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Natural Insulator

Part Details for 3-641212-4 by TE Connectivity

Results Overview of 3-641212-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

3-641212-4 Information

3-641212-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 3-641212-4

Part # Distributor Description Stock Price Buy
DISTI # 18R1323
Newark 04P Mta100 Hdr Assy Pl Ra Lf |Amp Te Connectivity 3-641212-4 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 2,500 $0.5170
$0.5170 Buy Now
DISTI # A121996-ND
DigiKey CONN HEADER R/A 4POS 2.54MM Min Qty: 1 Lead time: 16 Weeks Container: Bulk 3247
In Stock
  • 1 $0.9800
  • 10 $0.8360
  • 100 $0.7107
  • 500 $0.6344
  • 1,000 $0.6041
  • 5,000 $0.5392
  • 10,000 $0.5135
$0.5135 / $0.9800 Buy Now
DISTI # 3-641212-4
Avnet Americas Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole - Bulk (Alt: 3-641212-4) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 6 Days Container: Bulk 0
  • 5,000 $0.4519
  • 10,000 $0.4496
  • 20,000 $0.4473
  • 30,000 $0.4450
  • 40,000 $0.4427
$0.4427 / $0.4519 Buy Now
DISTI # 571-3-641212-4
Mouser Electronics Headers & Wire Housings 04P MTA100 HDR ASSY PL RA LF RoHS: Compliant 4507
  • 1 $0.9100
  • 10 $0.8010
  • 100 $0.6530
  • 500 $0.5660
  • 1,000 $0.5320
  • 2,500 $0.5150
  • 5,000 $0.4640
$0.4640 / $0.9100 Buy Now
TE Connectivity 04P MTA100 HDR ASSY PL RA LF PCB Connector Type: PCB Mount Header PCB Mount Orientation: Right Angle Connector System: Wire-to-Board Number of Positions: 4 Number of Rows: 1 PCB Mount Header Right Angle Wire-to-Board 4 | PCB Header: Polyester & Right Angle & Unshrouded | Part Number: 3-641212-4 | Internal Number: 3-641212-4 | TE Connectivity RoHS: Compliant Min Qty: 1 3247
  • 1 $2.1000
  • 10 $1.9100
  • 25 $1.7100
  • 50 $1.5900
  • 100 $1.4500
  • 250 $1.2700
  • 500 $1.2200
  • 1,000 $1.0800
  • 2,500 $0.9200
$0.9200 / $2.1000 Buy Now
DISTI # AMP3-641212-4
Heilind Electronics 04P MTA100 HDR ASSY PL RA LF Americas - 0 in Stock
  • 5,000 $0.5544
  • 13,500 $0.5365
$0.5365 / $0.5544 Buy Now
Onlinecomponents.com 04P MTA100 HDR ASSY PL RA LF RoHS: Compliant 0
  • 1,250 $0.9660
  • 2,500 $0.5940
  • 3,750 $0.4705
  • 5,000 $0.4611
$0.4611 / $0.9660 Buy Now
DISTI # AMP3-641212-4
Interstate Connecting Components 04P MTA100 HDR ASSY PL RA LF 0
  • 5,000 $0.5544
  • 13,500 $0.5365
$0.5365 / $0.5544 Buy Now
DISTI # 000000000001448346
Sager Headers & Wire Housings 04P MTA100 HDR ASSY PL RA LF Min Qty: 5000 0
  • 5,000 $0.6191
$0.6191 Buy Now
DISTI # 3-641212-4
Avnet Abacus Conn Unshrouded Header HDR 4 POS 254mm Solder RA ThruHole (Alt: 3-641212-4) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 04P MTA100 HDR ASSY PL RA LF RoHS: Compliant 0
  • 1,250 $0.9660
  • 2,500 $0.5940
  • 3,750 $0.4705
  • 5,000 $0.4611
$0.4611 / $0.9660 Buy Now

Part Details for 3-641212-4

3-641212-4 Part Data Attributes

Parametric Data
3-641212-4 TE Connectivity
Buy Now Datasheet
Compare Parts:
3-641212-4 TE Connectivity Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Natural Insulator
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 15 Weeks, 6 Days
Samacsys Manufacturer TE Connectivity
Body Length 0.5 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Color NATURAL
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 5A
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Panel Mount NO
Plating Thickness 15u inch
Rated Current (Signal) 5 A
Reference Standard CSA, LR, U
Terminal Length 0.14 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 4
UL Flammability Code 94V-0

Alternate Parts for 3-641212-4

This table gives cross-reference parts and alternative options found for 3-641212-4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 3-641212-4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
644518-4 TE Connectivity $0.7669 04P MTA100 HDR ASSY FL STR SN 3-641212-4 vs 644518-4
3-643787-3 TE Connectivity $1.2550 05P MTA100 HDR ASSY F/L W/O#2 3-641212-4 vs 3-643787-3
3-647078-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 3-641212-4 vs 3-647078-4
3-647018-4 TE Connectivity Check for Price (3-647018-4) 04P MTA100 PSTD CONN ASSY LF 3-641212-4 vs 3-647018-4
3-647075-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 3-641212-4 vs 3-647075-4
3-647017-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, IDC Terminal, White Insulator, Plug 3-641212-4 vs 3-647017-4
3-641124-4 TE Connectivity Check for Price (3-641124-4) 04P MTA100 HDR ASSY P/STR LF 3-641212-4 vs 3-641124-4
3-641125-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Natural Insulator 3-641212-4 vs 3-641125-4
3-647296-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 3-641212-4 vs 3-647296-4
3-647295-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Black Insulator 3-641212-4 vs 3-647295-4
