Part Details for 3-1437572-8 by TE Connectivity
Results Overview of 3-1437572-8 by TE Connectivity
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
3-1437572-8 Information
3-1437572-8 by TE Connectivity is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 3-1437572-8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3-1437572-8
|
Avnet Americas | Switch Push Button N.O. SPST Flush Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Loose Piece - Bulk (Alt: 3-1437572-8) RoHS: Not Compliant Min Qty: 250 Package Multiple: 250 Lead time: 54 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
DISTI #
3-1437572-8
|
Avnet Abacus | Switch Push Button NO SPST Flush Plunger 20VAC 20VDC 04VA Momentary Contact PC Pins Panel MountThrough Hole Loose Piece (Alt: 3-1437572-8) RoHS: Not Compliant Min Qty: 250 Package Multiple: 25 Lead time: 72 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
3-1437572-8
|
Avnet Abacus | Switch Push Button NO SPST Flush Plunger 20VAC 20VDC 04VA Momentary Contact PC Pins Panel MountThrough Hole Loose Piece (Alt: 3-1437572-8) RoHS: Not Compliant Min Qty: 250 Package Multiple: 1 Lead time: 74 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for 3-1437572-8

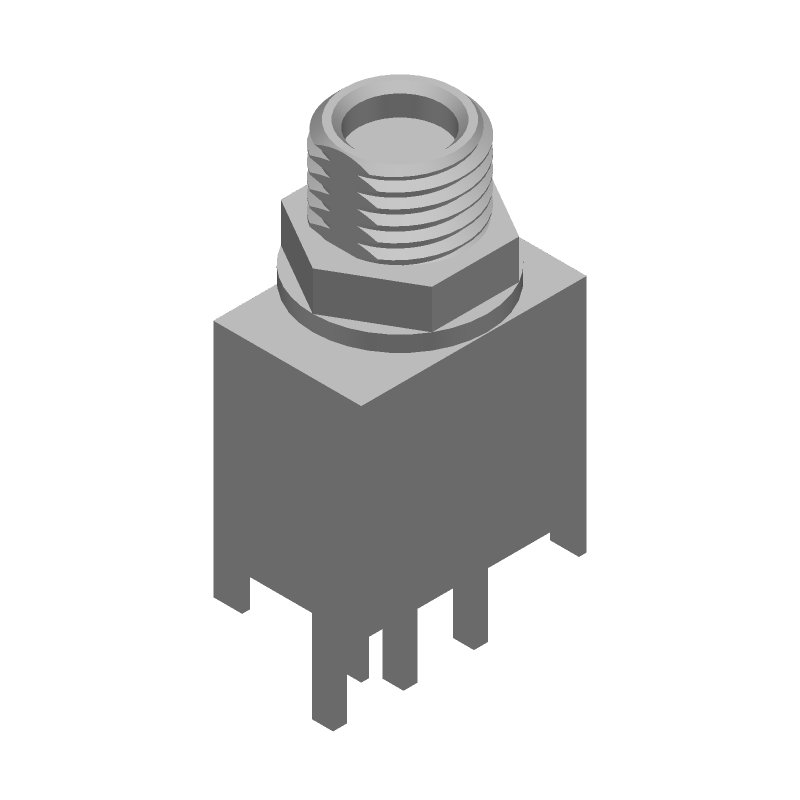

3-1437572-8 CAD Models
3-1437572-8 Part Data Attributes
|
|
3-1437572-8
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
3-1437572-8
TE Connectivity
PUSHBUTTON SWITCH, SPST, MOMENTARY, THROUGH HOLE-STRAIGHT
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Samacsys Manufacturer | TE Connectivity | |
| Actuator Color | RED | |
| Actuator Material | POLYAMIDE | |
| Actuator Type | FLUSH PLUNGER | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact Current(AC)-Max | 0.4 A | |
| Contact Current(DC)-Max | 0.4 A | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| End Contact Material | COPPER ALLOY | |
| Housing Material | POLYESTER | |
| Illumination | NON-ILLUMINATED | |
| Mounting Feature | PANEL MOUNT | |
| Number of Independent Keys | 1 | |
| Operating Force-Max | 3.92 N | |
| Packing Method | BULK | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | PUSHBUTTON SWITCH | |
| Termination Type | WIRE |
