Connectors / Mains Power Connectors / 3-104-311
Datasheets
3-104-311 by:

Mains Power Connector,

Part Details for 3-104-311 by Schurter Electronic Components

Results Overview of 3-104-311 by Schurter Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Audio and Video Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

3-104-311 Information

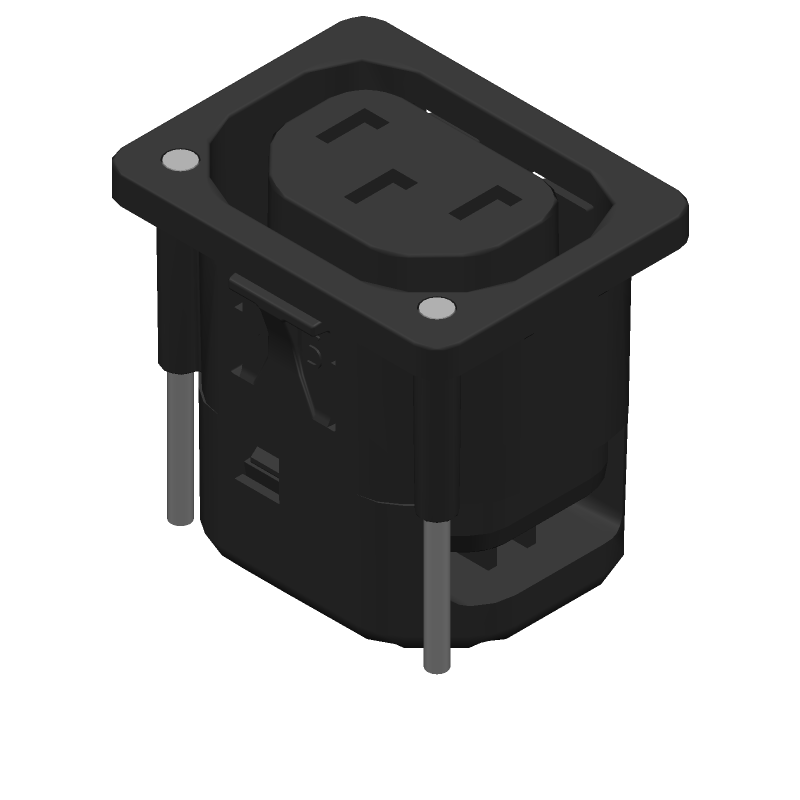

3-104-311 by Schurter Electronic Components is a Main Power Connector.
Mains Power Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 3-104-311

Part # Distributor Description Stock Price Buy
DISTI # 33AC5779
Newark Iec Outlet F, 10A, 250V, Idc, Panel, Iec Connector Type:Iec C13 Outlet, Current Rating:15A, Voltage Rating:250Vac, Contact Termination Type:Idc/Idt, Connector Mounting:Snap-In, Flange Mount, Product Range:6610-5 Series Rohs Compliant: Yes |Schurter 3-104-311 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 91
  • 1 $0.4830
  • 10 $0.4830
  • 50 $0.4830
  • 100 $0.4830
  • 250 $0.4830
  • 500 $0.4830
  • 1,000 $0.4830
  • 2,500 $0.4830
$0.4830 Buy Now
DISTI # 3-104-311
Avnet Americas IEC Appliance Outlet F Snap-in Mounting Front Side IDC Terminal Integrated L Side Light Pipe Black Cross Alignment 12 AWG Conductor Cross Section - Boxed Product (Development Kits) (Alt: 3-104-311) RoHS: Compliant Min Qty: 200 Package Multiple: 50 Lead time: 111 Weeks, 0 Days Container: Box 0
  • 200 $1.7232
  • 300 $1.7023
  • 500 $1.6813
  • 1,000 $1.6531
  • 2,000 $1.6251
$1.6251 / $1.7232 Buy Now
DISTI # 33AC5779
Avnet Americas IEC Appliance Outlet F Snap-in Mounting Front Side IDC Terminal Integrated L Side Light Pipe Black Cross Alignment 12 AWG Conductor Cross Section - Bulk (Alt: 33AC5779) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk 0
  • 1 $3.1600
  • 10 $2.8200
  • 50 $2.5300
  • 100 $2.3900
  • 250 $2.2500
$2.2500 / $3.1600 Buy Now
DISTI # 693-3-104-311
Mouser Electronics AC Power Entry Modules 10A APP OUTLET 2.5mm 12AWG V-LOCK BLK RoHS: Compliant 90
  • 1 $1.8900
  • 50 $1.7600
$1.7600 / $1.8900 Buy Now
DISTI # 72126447
RS Connector, 6610-5 APPLIANCE OUTLET, 10A, 70 Min Qty: 100 Package Multiple: 1 Lead time: 24 Weeks, 0 Days Container: Bulk 0
  • 100 $2.3000
$2.3000 RFQ
Onlinecomponents.com 6610-5 APPLIANCE OUTLET 10A 70 RoHS: Compliant 0
  • 50 $2.2600
  • 100 $2.1900
  • 250 $2.0900
  • 500 $2.0300
  • 1,000 $1.9200
  • 2,500 $1.8700
  • 5,000 $1.8200
  • 7,500 $1.7900
$1.7900 / $2.2600 Buy Now
Bristol Electronics   Min Qty: 4 100
  • 4 $1.5000
  • 15 $0.9750
  • 53 $0.5625
$0.5625 / $1.5000 Buy Now
Quest Components   80
  • 1 $2.0000
  • 14 $1.0000
  • 61 $0.6000
$0.6000 / $2.0000 Buy Now
Master Electronics 6610-5 APPLIANCE OUTLET 10A 70 RoHS: Compliant 0
  • 50 $2.2600
  • 100 $2.1900
  • 250 $2.0900
  • 500 $2.0300
  • 1,000 $1.9200
  • 2,500 $1.8700
  • 5,000 $1.8200
  • 7,500 $1.7900
$1.7900 / $2.2600 Buy Now

Part Details for 3-104-311

3-104-311 Part Data Attributes

Parametric Data
3-104-311 Schurter Electronic Components
Buy Now Datasheet
Compare Parts:
3-104-311 Schurter Electronic Components Mains Power Connector,
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer SCHURTER AG
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Factory Lead Time 111 Weeks
Samacsys Manufacturer SCHURTER
Additional Feature STANDARDS: CUL, IEC 60320-1, IEC 60320-3, UL, VDE
Body Breadth 1.1 inch
Body Length 1.41 inch
Connector Type MAINS POWER CONNECTOR
Contact Gender FEMALE
Coupling Type SNAP
Insulator Material POLYETHYLENE
Mains Connector Rating 15A, 250VAC
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mounting Type PANEL
Operating Temperature-Max 70 °C
Operating Temperature-Min -25 °C
Option GENERAL PURPOSE
Reference Standard CCC; CSA
Termination Type SCREW
Total Number of Contacts 3

Alternate Parts for 3-104-311

This table gives cross-reference parts and alternative options found for 3-104-311. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 3-104-311, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
43R04-1121 Power Dynamics Inc Check for Price Mains Power Connector, 15A, 250VAC, Female, Solder Terminal 3-104-311 vs 43R04-1121
45R05-1241-D3 Power Dynamics Inc Check for Price Mains Power Connector, 15A, 250VAC, Female, Solder Terminal 3-104-311 vs 45R05-1241-D3
4725.0300 Schurter Electronic Components Check for Price Mains Power Connector, 10/15A, 250VAC, Female, Solder Terminal, Socket, ROHS COMPLIANT 3-104-311 vs 4725.0300
PD-43R03-11 Power Dynamics Inc Check for Price Mains Power Connector, 15A, 250VAC, Female, Solder Terminal, ROHS COMPLIANT 3-104-311 vs PD-43R03-11
