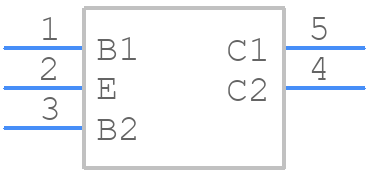

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2SC4207-Y(TE85L,F) by Toshiba America Electronic Components
Results Overview of 2SC4207-Y(TE85L,F) by Toshiba America Electronic Components
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2SC4207-Y(TE85L,F) Information
2SC4207-Y(TE85L,F) by Toshiba America Electronic Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2SC4207-Y(TE85L,F)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AM3301
|
Newark | Bipolar Trans, Dual Npn, 50V, Sot-25 Rohs Compliant: Yes |Toshiba 2SC4207-Y(TE85L, F) RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2890 |
|
$0.0720 / $0.2240 | Buy Now |
|
DISTI #
2SC4207-Y(TE85LF)CT-ND
|
DigiKey | TRANS 2NPN 50V 150MA SMV Min Qty: 1 Lead time: 28 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
37794 In Stock |
|
$0.0400 / $0.3200 | Buy Now |
|
DISTI #
2SC4207-Y(TE85L,F)
|
Avnet Americas | - Tape and Reel (Alt: 2SC4207-Y(TE85L,F)) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
757-2SC4207-YTE85L,F
|
Mouser Electronics | Bipolar Transistors - BJT 150mA 50V RoHS: Compliant | 16841 |
|
$0.0440 / $0.2600 | Buy Now |
|
DISTI #
85949103
|
Verical | Trans GP BJT NPN 50V 0.15A 300mW 5-Pin SMV T/R RoHS: Compliant Min Qty: 476 Package Multiple: 1 Date Code: 2430 | Americas - 2750 |
|
$0.0615 / $0.0658 | Buy Now |
|
DISTI #
2SC4207-Y(TE85L,F)
|
Avnet Asia | Trans GP BJT NPN 50V 0.15A 5-Pin SOT-25 Embossed T/R (Alt: 2SC4207-Y(TE85L,F)) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
2SC4207-Y(TE85L,F)
|
EBV Elektronik | (Alt: 2SC4207-Y(TE85L,F)) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for 2SC4207-Y(TE85L,F)
2SC4207-Y(TE85L,F) CAD Models
2SC4207-Y(TE85L,F) Part Data Attributes
|
|
2SC4207-Y(TE85L,F)
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
2SC4207-Y(TE85L,F)
Toshiba America Electronic Components
TRANSISTOR 150 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, SMV, 2-3L1A, 5 PIN, BIP General Purpose Small Signal
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SMV, 2-3L1A, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Toshiba | |
| Collector Current-Max (IC) | 0.15 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | COMMON COLLECTOR, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 120 | |
| JESD-30 Code | R-PDSO-G5 | |
| Number of Elements | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 80 MHz |
2SC4207-Y(TE85L,F) Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2SC4207-Y(TE85L,F) transistor is -55°C to 150°C.
-
Yes, the 2SC4207-Y(TE85L,F) transistor is suitable for high-frequency applications up to 5 GHz due to its high transition frequency (fT) of 7 GHz.
-
The maximum collector current rating for the 2SC4207-Y(TE85L,F) transistor is 10 A.
-
Yes, the 2SC4207-Y(TE85L,F) transistor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The typical storage time for the 2SC4207-Y(TE85L,F) transistor is 12 months from the date of shipment, when stored in its original packaging and under normal storage conditions.
