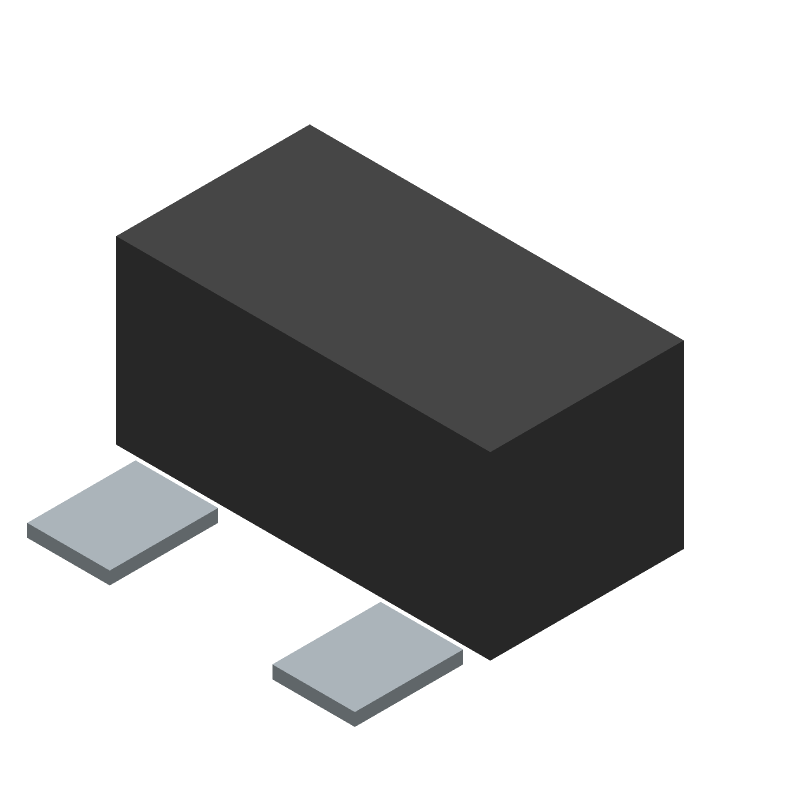

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2SA1162-Y,LF by Toshiba America Electronic Components
Results Overview of 2SA1162-Y,LF by Toshiba America Electronic Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2SA1162-Y,LF Information
2SA1162-Y,LF by Toshiba America Electronic Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2SA1162-Y,LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2SA1162-YLFCT-ND
|
DigiKey | TRANS PNP 50V 0.15A S-MINI Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
32114 In Stock |
|
$0.0157 / $0.1600 | Buy Now |
|
DISTI #
2SA1162-Y,LF
|
Avnet Americas | Single Bipolar Transistor, PNP, 50 V, 150 mA, 200 mW, SOT-346, 3 Pins, Surface Mount - Tape and Reel (Alt: 2SA1162-Y,LF) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 3000 |
|
$0.0133 / $0.0143 | Buy Now |
|
DISTI #
757-2SA1162-YLF
|
Mouser Electronics | Bipolar Transistors - BJT PNP Transistor -50V S-Mini -0.15A -0.3V RoHS: Compliant | 1506 |
|
$0.0180 / $0.1500 | Buy Now |
|
|
Bristol Electronics | 4609 |
|
RFQ |
Part Details for 2SA1162-Y,LF
2SA1162-Y,LF CAD Models
2SA1162-Y,LF Part Data Attributes
|
|
2SA1162-Y,LF
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
2SA1162-Y,LF
Toshiba America Electronic Components
TRANS PNP 50V 0.15A S-MINI
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.95 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | LOW NOISE | |
| Collector Current-Max (IC) | 0.15 A | |
| Collector-Base Capacitance-Max | 7 pF | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 120 | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | PNP | |
| Power Dissipation Ambient-Max | 0.15 W | |
| Power Dissipation-Max (Abs) | 0.15 W | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 80 MHz | |
| VCEsat-Max | 0.3 V |
Alternate Parts for 2SA1162-Y,LF
This table gives cross-reference parts and alternative options found for 2SA1162-Y,LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2SA1162-Y,LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2SA1162-YLF(T | Toshiba America Electronic Components | Check for Price | Small Signal Bipolar Transistor | 2SA1162-Y,LF vs 2SA1162-YLF(T |
2SA1162-Y,LF Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 2SA1162-Y,LF is -40°C to 150°C.
-
Yes, the 2SA1162-Y,LF is suitable for high-frequency applications up to 100 MHz due to its low transition frequency (fT) of 250 MHz.
-
The maximum collector-emitter voltage (Vceo) that the 2SA1162-Y,LF can handle is 50 V.
-
Yes, the 2SA1162-Y,LF can be used in switching applications due to its low saturation voltage (Vce(sat)) of 0.2 V and fast switching time (tf) of 10 ns.
-
Yes, the 2SA1162-Y,LF is RoHS (Restriction of Hazardous Substances) compliant, making it suitable for use in environmentally friendly designs.
