Capacitors / Tantalum Capacitors / 2R5TPF470M7L
Datasheets
2R5TPF470M7L by:

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP

Part Details for 2R5TPF470M7L by Panasonic Electronic Components

Results Overview of 2R5TPF470M7L by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

2R5TPF470M7L Information

2R5TPF470M7L by Panasonic Electronic Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 2R5TPF470M7L

Part # Distributor Description Stock Price Buy
DISTI # 98W0368
Newark Tantalum Capacitor, 470Uf, 2.5V, 20%, 2917, Capacitance:470Μf, Capacitance Tolerance:± 20%, Voltage(Dc):2.5V, Manufacturer Size Code:D3L, Esr:0.007Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm Rohs Compliant: Yes |Panasonic 2R5TPF470M7L RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $2.3200
$2.3200 Buy Now
DISTI # 98W0369
Newark Tantalum Capacitor, 470Uf, 2.5V, 20%, 2917, Full Reel, Capacitance:470Μf, Capacitance Tolerance:± 20%, Voltage(Dc):2.5V, Manufacturer Size Code:D3L, Esr:0.007Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm Rohs Compliant: Yes |Panasonic 2R5TPF470M7L RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $1.3900
  • 4,000 $1.2800
  • 6,000 $1.2400
  • 10,000 $1.2000
$1.2000 / $1.3900 Buy Now
DISTI # P16551CT-ND
DigiKey CAP TANT POLY 470UF 2.5V 2917 Min Qty: 1 Lead time: 27 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 4000
In Stock
  • 1 $2.7300
  • 10 $1.8820
  • 50 $1.5464
  • 100 $1.4426
  • 500 $1.2671
  • 1,000 $1.2127
  • 2,500 $1.1553
  • 5,000 $1.1207
  • 7,500 $1.1033
$1.1033 / $2.7300 Buy Now
DISTI # 2R5TPF470M7L
Avnet Americas Tantalum Polymer Capacitor, 470 uF, 2.5 V, ? 20%, D3L, 7 mohm, 2917 [7343-28 Metric] - Tape and Reel (Alt: 2R5TPF470M7L) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 27 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.9853
  • 5,000 $0.9715
  • 10,000 $0.9557
  • 15,000 $0.9457
  • 20,000 $0.9408
$0.9408 / $0.9853 Buy Now
DISTI # 667-2R5TPF470M7L
Mouser Electronics Tantalum Capacitors - Polymer 2.5volts 470uF ESR 7mohm RoHS: Compliant 2440
  • 1 $2.1700
  • 10 $1.4300
  • 50 $1.1300
  • 100 $1.0300
  • 500 $0.9880
  • 2,500 $0.9870
$0.9870 / $2.1700 Buy Now
DISTI # 70323919
RS 470uF SMD Solid Polymer Tantalum Capacitor, 2.5 V dc +/-20%, POSCAP Series Min Qty: 2500 Package Multiple: 1 Container: Bulk 0
  • 2,500 $2.5300
$2.5300 RFQ
Onlinecomponents.com Cap Tant Polymer 470uF 2.5VDC D3L CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343 0.007 Ohm 105C T/R RoHS: Compliant 0
  • 625 $2.0530
  • 1,250 $1.2640
  • 1,875 $1.0000
  • 2,500 $0.9800
$0.9800 / $2.0530 Buy Now
DISTI # 2R5TPF470M7L
TME Capacitor: tantalum-polymer, low ESR, 470uF, 2.5VDC, TPF, SMD, ±20% Min Qty: 1250 0
  • 1,250 $1.3100
$1.3100 RFQ
DISTI # 2R5TPF470M7L
Avnet Abacus Tantalum Polymer Capacitor 470 uF 25 V 20 D3L 7 mohm 2917 734328 Metric - Tape and Reel (Alt: 2R5TPF470M7L) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 36 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics Cap Tant Polymer 470uF 2.5VDC D3L CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343 0.007 Ohm 105C T/R RoHS: Compliant 0
  • 625 $2.0530
  • 1,250 $1.2640
  • 1,875 $1.0000
  • 2,500 $0.9800
$0.9800 / $2.0530 Buy Now

Part Details for 2R5TPF470M7L

2R5TPF470M7L CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

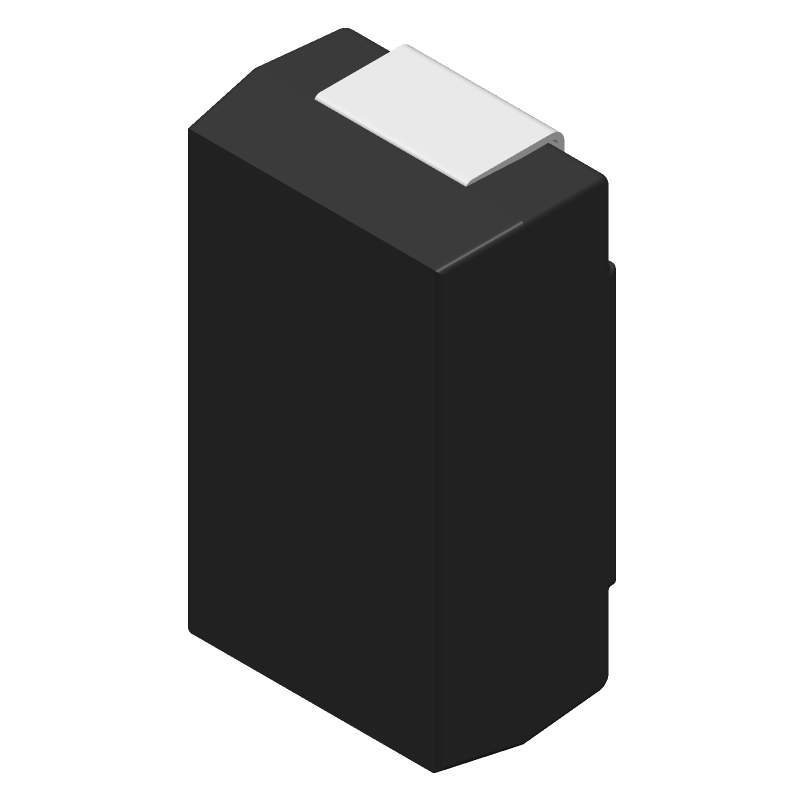

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2R5TPF470M7L Part Data Attributes

Parametric Data
2R5TPF470M7L Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
2R5TPF470M7L Panasonic Electronic Components Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 27 Weeks
Samacsys Manufacturer Panasonic
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 470 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (SOLID POLYMER)
ESR 7 mΩ
Height 2.8 mm
JESD-609 Code e4
Leakage Current 0.1175 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 13 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 2.5 V
Ripple Current 4400 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.10
Terminal Finish Palladium/Gold (Pd/Au)
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for 2R5TPF470M7L

This table gives cross-reference parts and alternative options found for 2R5TPF470M7L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2R5TPF470M7L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T520D477M2R5AHE006 KEMET Corporation $0.6899 Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP 2R5TPF470M7L vs T520D477M2R5AHE006
T520D477M2R5AHE009 KEMET Corporation $0.7523 Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP 2R5TPF470M7L vs T520D477M2R5AHE009
T543D477M2R5AKW0067280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 2.5V, 20% +Tol, 20% -Tol, 470uF, 2917, 2R5TPF470M7L vs T543D477M2R5AKW0067280
T543D477M2R5AKE0057280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 2.5V, 20% +Tol, 20% -Tol, 470uF, 2917, 2R5TPF470M7L vs T543D477M2R5AKE0057280
T520D477M2R5AHE0097280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP 2R5TPF470M7L vs T520D477M2R5AHE0097280
T543D477M2R5AKW006 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 2.5V, 20% +Tol, 20% -Tol, 470uF, 2917, 2R5TPF470M7L vs T543D477M2R5AKW006
T543D477M2R5AKW0257280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 2.5V, 20% +Tol, 20% -Tol, 470uF, 2917, 2R5TPF470M7L vs T543D477M2R5AKW0257280
T520D477M2R5ATE007C-7280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT 2R5TPF470M7L vs T520D477M2R5ATE007C-7280
T520D477M2R5AME009 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 2R5TPF470M7L vs T520D477M2R5AME009
T520D477M2R5AME0077280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 2R5TPF470M7L vs T520D477M2R5AME0077280

2R5TPF470M7L Related Parts

2R5TPF470M7L Frequently Asked Questions (FAQ)

  • The recommended land pattern for the 2R5TPF470M7L capacitor can be found in the Panasonic Land Pattern Recommendation document or by consulting with a PCB design expert. A general rule of thumb is to follow the IPC-7351 standard for land pattern design.

  • The 2R5TPF470M7L capacitor is a moisture-sensitive device. To handle it, follow the recommended storage and handling procedures outlined in the Panasonic Moisture Sensitivity Level (MSL) document. This includes storing the components in a dry environment, using a dry pack or nitrogen-filled packaging, and following a controlled reflow soldering process.

  • While the datasheet provides the ESR value at 100 kHz, the ESR at higher frequencies may be of interest. According to Panasonic's application notes, the ESR of the 2R5TPF470M7L capacitor at higher frequencies (e.g., 1 MHz) can be estimated using the impedance vs. frequency curve provided in the datasheet or by consulting with a Panasonic representative.

  • The 2R5TPF470M7L capacitor is designed to meet the vibration requirements of various industries, including automotive and industrial applications. However, it's essential to consult the Panasonic vibration test report and perform additional testing to ensure the capacitor meets the specific vibration requirements of your application.

  • To determine the reliability and lifespan of the 2R5TPF470M7L capacitor in your application, consult the Panasonic reliability handbook and perform accelerated life testing (ALT) according to industry standards such as IEC 60384-4. This will help you estimate the capacitor's lifespan under your specific operating conditions.
