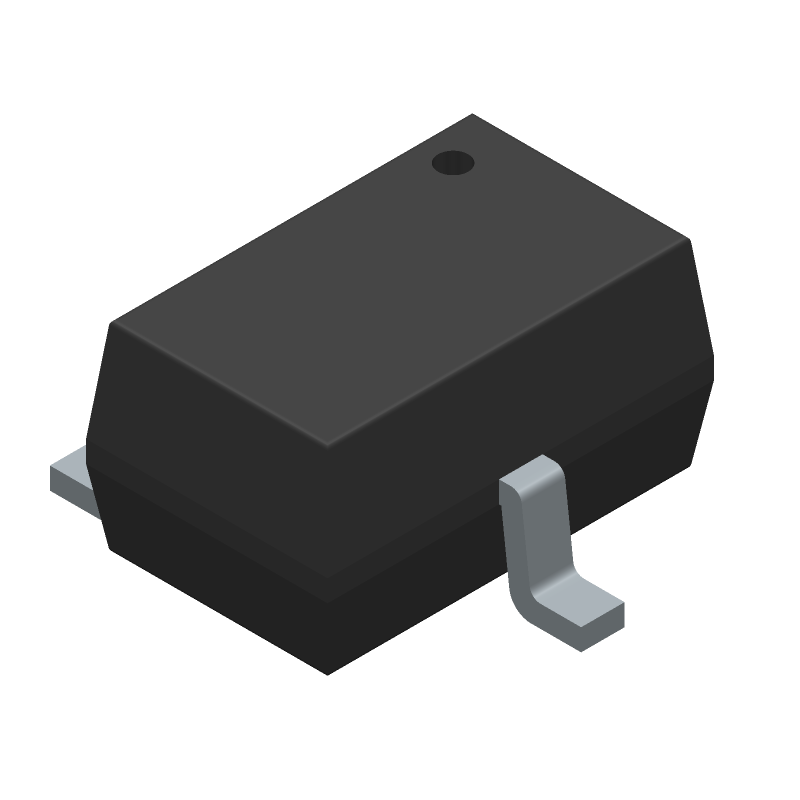

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002W by onsemi
Results Overview of 2N7002W by onsemi
- Distributor Offerings: (25 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002W Information
2N7002W by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002W
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y5854
|
Newark | Mosfet, N-Ch, 78V, 0.115A, 150Deg C, Channel Type:N Channel, Drain Source Voltage Vds:78V, Continuous Drain Current Id:115Ma, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.76V Rohs Compliant: Yes |Onsemi 2N7002W RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 861 |
|
$0.0740 | Buy Now |
|
DISTI #
10N3236
|
Newark | Mosfet Transistor, N Channel, 115 Ma, 78 V, 2.53 Ohm, 10 V, 1.76 V Rohs Compliant: Yes |Onsemi 2N7002W RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0520 / $0.0730 | Buy Now |
|
DISTI #
2N7002WCT-ND
|
DigiKey | MOSFET SOT323 N 60V 13.5OHM Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
95345 In Stock |
|
$0.0496 / $0.3500 | Buy Now |
|
DISTI #
2N7002W
|
Avnet Americas | Transistor MOSFET N-CH 60V 0.115A 3-Pin SOT-323 T/R - Tape and Reel (Alt: 2N7002W) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | 18000 |
|
$0.0496 / $0.0529 | Buy Now |
|
DISTI #
31Y5854
|
Avnet Americas | Transistor MOSFET N-CH 60V 0.115A 3-Pin SOT-323 T/R - Bulk (Alt: 31Y5854) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk | 892 Partner Stock |
|
$0.1230 / $0.3630 | Buy Now |
|
DISTI #
512-2N7002W
|
Mouser Electronics | MOSFETs N-Chan Enhancement Mode Field Effect RoHS: Compliant | 33368 |
|
$0.0490 / $0.3500 | Buy Now |
|
DISTI #
E02:0323_00847123
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.115A 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks Date Code: 2509 | Europe - 69000 |
|
$0.0435 / $0.0572 | Buy Now |
|
DISTI #
V72:2272_06298072
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.115A 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 2215 Container: Cut Strips | Americas - 12262 |
|
$0.0611 / $0.2070 | Buy Now |
|
DISTI #
V36:1790_06298072
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.115A 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks Date Code: 2422 | Americas - 3000 |
|
$0.0473 / $0.0605 | Buy Now |
|
|
Future Electronics | N-Channel 60 V 7.5 Ohm SMT Enhancement Field Effect Transistor SOT-23-3 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks Container: Reel | 6000Reel |
|
$0.0503 / $0.0538 | Buy Now |
Part Details for 2N7002W
2N7002W CAD Models
2N7002W Part Data Attributes
|
|
2N7002W
onsemi
Buy Now
Datasheet
|
Compare Parts:
2N7002W
onsemi
Small Signal MOSFET 60V 340mA 1.6 Ohm Single N-Channel SC-70, SC-70-3 / SOT-323-3, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-70-3 / SOT-323-3 | |
| Manufacturer Package Code | 419AB | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.115 A | |
| Drain-source On Resistance-Max | 7.5 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 7 pF | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for 2N7002W
This table gives cross-reference parts and alternative options found for 2N7002W. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2N7002W, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2N7002W-7-F | Diodes Incorporated | $0.0541 | Small Signal Field-Effect Transistor, 0.115A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, ULTRA SMALL, PLASTIC PACKAGE-3 | 2N7002W vs 2N7002W-7-F |
2N7002W Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N7002W is -55°C to 150°C.
-
Yes, the 2N7002W can be used as a switch for high-frequency signals up to 1 GHz due to its low capacitance and high switching speed.
-
To ensure the 2N7002W is fully turned on or off, apply a gate-source voltage (Vgs) of at least ±10V for a logic-level input, or ±5V for a standard TTL/CMOS input.
-
The maximum current rating for the 2N7002W is 500 mA, but it's recommended to derate the current to 300 mA for continuous operation to ensure reliability.
-
No, the 2N7002W is not suitable for high-voltage applications. Its maximum drain-source voltage rating is 20V, and exceeding this voltage can cause damage to the device.
