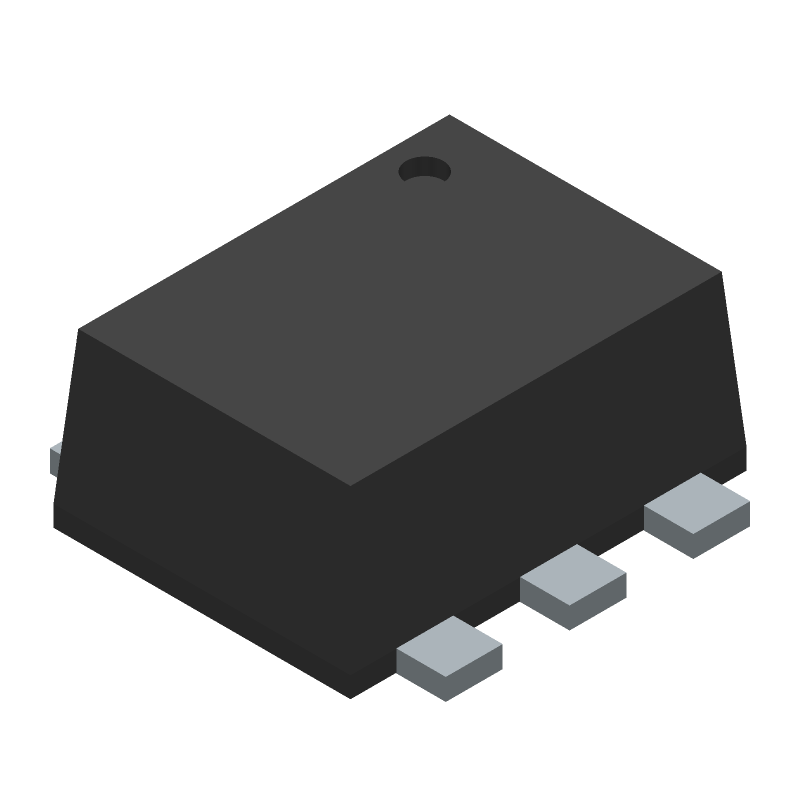

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002VA by onsemi
Results Overview of 2N7002VA by onsemi
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002VA Information
2N7002VA by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002VA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12N0103
|
Newark | Transistor, mosfet, matched Pair, n-Channel,60V V(Br)Dss,280Ma I(D),sot-563F Rohs Compliant: Yes |Onsemi 2N7002VA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2700 / $0.3510 | Buy Now |
|
DISTI #
2N7002VACT-ND
|
DigiKey | MOSFET 2N-CH 60V 0.28A SOT563F Min Qty: 1 Lead time: 22 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1397 In Stock |
|
$0.3410 / $1.0000 | Buy Now |
|
DISTI #
2N7002VA
|
Avnet Americas | - Tape and Reel (Alt: 2N7002VA) RoHS: Compliant Min Qty: 2778 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 9000 Partner Stock |
|
$0.2510 / $0.2563 | Buy Now |
|
DISTI #
2N7002VA
|
Avnet Americas | - Tape and Reel (Alt: 2N7002VA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
512-2N7002VA
|
Mouser Electronics | MOSFETs N-Chan Enhancement Mode Field Effect RoHS: Compliant | 17473 |
|
$0.3300 / $0.8800 | Buy Now |
|
DISTI #
V72:2272_06298069
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.28A 6-Pin SOT-563 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2315 Container: Cut Strips | Americas - 500 |
|
$0.2816 / $0.4730 | Buy Now |
|
DISTI #
85956166
|
Verical | Trans MOSFET N-CH 60V 0.28A 6-Pin SOT-563 T/R RoHS: Compliant Min Qty: 849 Package Multiple: 1 Date Code: 1701 | Americas - 114876 |
|
$0.4418 | Buy Now |
|
DISTI #
87891953
|
Verical | Trans MOSFET N-CH 60V 0.28A 6-Pin SOT-563 T/R RoHS: Compliant Min Qty: 91 Package Multiple: 1 | Americas - 2650 |
|
$0.3060 / $0.6090 | Buy Now |
|
DISTI #
76893212
|
Verical | Trans MOSFET N-CH 60V 0.28A 6-Pin SOT-563 T/R RoHS: Compliant Min Qty: 22 Package Multiple: 1 Date Code: 2315 | Americas - 500 |
|
$0.2816 / $0.4088 | Buy Now |
|
|
Rochester Electronics | Small Signal Field-Effect Transistor, 0.28A, 60V, 2-Element, N-Channel, MOSFET RoHS: Compliant Status: Active Min Qty: 1 | 114876 |
|
$0.2191 / $0.3534 | Buy Now |
Part Details for 2N7002VA
2N7002VA CAD Models
2N7002VA Part Data Attributes
|
|
2N7002VA
onsemi
Buy Now
Datasheet
|
Compare Parts:
2N7002VA
onsemi
N-Channel Enhancement Mode Field Effect Transistor 60V, 0.28A, 2Ω, SOT-563, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-563 | |
| Package Description | ROHS COMPLIANT, ULTRA SMALL PACKAGE-6 | |
| Manufacturer Package Code | 419BH | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.28 A | |
| Drain-source On Resistance-Max | 7.5 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 7 pF | |
| JESD-30 Code | R-PDSO-F6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.25 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
2N7002VA Frequently Asked Questions (FAQ)
-
The 2N7002VA is a low-power MOSFET, and its maximum operating frequency is typically limited by its gate capacitance and gate resistance. While there is no specific frequency rating in the datasheet, it's generally suitable for low-frequency applications up to 100 kHz.
-
To ensure the 2N7002VA is fully turned on, you should apply a gate-source voltage (Vgs) of at least 4.5V, which is the threshold voltage (Vth) specified in the datasheet. Additionally, make sure the gate drive is strong enough to charge the gate capacitance quickly.
-
The maximum power dissipation of the 2N7002VA is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
-
While the 2N7002VA can be used as a switch, it's not suitable for high-current applications due to its limited current rating (500mA continuous drain current). It's more suitable for low-power switching applications, such as in audio circuits or low-power motor control.
-
To protect the 2N7002VA from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider adding ESD protection devices, such as TVS diodes or ESD protection arrays, in your circuit design.
