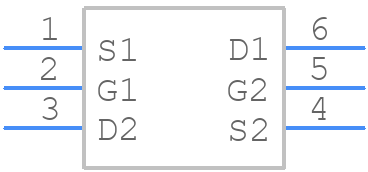

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002PSZ by Nexperia
Results Overview of 2N7002PSZ by Nexperia
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2N7002PSZ Information
2N7002PSZ by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002PSZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2N7002PSZ-ND
|
DigiKey | MOSFET 2N-CH 60V 0.32A 6TSSOP Min Qty: 10000 Lead time: 6 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$0.0354 / $0.0503 | Buy Now |
|
DISTI #
2N7002PSZ
|
Avnet Americas | Transistor MOSFET Array Dual N-CH 60V 0.32A 6-Pin SOT-363 T/R - Tape and Reel (Alt: 2N7002PSZ) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0305 / $0.0338 | Buy Now |
|
DISTI #
771-2N7002PSZ
|
Mouser Electronics | MOSFETs 60 V, 350 mA dual N-channel Trench MOSFET RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
2N7002PSZ
|
TTI | MOSFETs 60 V, 350 mA dual N-channel Trench MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 20000 Package Multiple: 10000 Container: Reel | Americas - 0 |
|
$0.0450 / $0.0490 | Buy Now |
|
DISTI #
2N7002PSZ
|
Avnet Silica | Transistor MOSFET Array Dual NCH 60V 032A 6Pin SOT363 TR (Alt: 2N7002PSZ) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
2N7002PSZ
|
EBV Elektronik | Transistor MOSFET Array Dual NCH 60V 032A 6Pin SOT363 TR (Alt: 2N7002PSZ) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for 2N7002PSZ
2N7002PSZ CAD Models
2N7002PSZ Part Data Attributes
|
|
2N7002PSZ
Nexperia
Buy Now
Datasheet
|
Compare Parts:
2N7002PSZ
Nexperia
2N7002PS - 60 V, 320 mA dual N-channel Trench MOSFET@en-us TSSOP 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Package Description | SC-88, SOT-363, TSSOP-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT363 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOGIC LEVEL COMPATIBLE | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.32 A | |
| Drain-source On Resistance-Max | 1.6 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 4 pF | |
| JESD-30 Code | R-PDSO-G6 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.42 W | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
