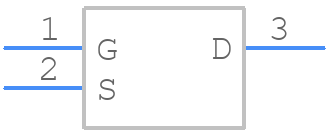

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002NXBKR by Nexperia
Results Overview of 2N7002NXBKR by Nexperia
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2N7002NXBKR Information
2N7002NXBKR by Nexperia is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002NXBKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH8644
|
Newark | Mosfet, N-Ch, 60V, 0.27A, Sot-23, Channel Type:N Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:270Ma, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.6V Rohs Compliant: Yes |Nexperia 2N7002NXBKR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6945 |
|
$0.0580 / $0.1190 | Buy Now |
|
DISTI #
86AK6740
|
Newark | Mosfet, N-Ch, 60V, 0.27A, Sot-23 Rohs Compliant: Yes |Nexperia 2N7002NXBKR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0320 / $0.0370 | Buy Now |
|
DISTI #
1727-8642-1-ND
|
DigiKey | MOSFET N-CH 60V 270MA TO236AB Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
25150 In Stock |
|
$0.0157 / $0.1500 | Buy Now |
|
DISTI #
2N7002NXBKR
|
Avnet Americas | Transistor MOSFET N-CH 60V 0.33A 3-Pin SOT-23 T/R - Tape and Reel (Alt: 2N7002NXBKR) RoHS: Compliant Min Qty: 51000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0113 / $0.0125 | Buy Now |
|
DISTI #
771-2N7002NXBKR
|
Mouser Electronics | MOSFETs 60 V, 360 mA N-channel Trench MOSFET RoHS: Compliant | 265004 |
|
$0.0170 / $0.1500 | Buy Now |
|
DISTI #
E02:0323_14442499
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.27A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 4164 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2510 | Europe - 58480 |
|
$0.0143 / $0.0273 | Buy Now |
|
DISTI #
V72:2272_23720159
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.27A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1186 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2242 Container: Cut Strips | Americas - 30091 |
|
$0.0833 / $0.0843 | Buy Now |
|
DISTI #
V36:1790_23720159
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.27A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 8130 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2408 | Americas - 27000 |
|
$0.0092 / $0.0123 | Buy Now |
|
DISTI #
V79:2366_28604458
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.27A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 7353 Package Multiple: 1 Date Code: 2243 | Americas - 7500 |
|
$0.0136 | Buy Now |
|
DISTI #
P40:2555_23989940
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.27A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 532 Package Multiple: 1 Date Code: 2244 | Europe - 532 |
|
$0.0130 / $0.0347 | Buy Now |
Part Details for 2N7002NXBKR
2N7002NXBKR CAD Models
2N7002NXBKR Part Data Attributes
|
|
2N7002NXBKR
Nexperia
Buy Now
Datasheet
|
Compare Parts:
2N7002NXBKR
Nexperia
2N7002NXBK - 60 V, N-channel Trench MOSFET@en-us TO-236 3-Pin
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.33 A | |
| Drain-source On Resistance-Max | 3.2 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 3 pF | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.67 W | |
| Pulsed Drain Current-Max (IDM) | 0.9 A | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
2N7002NXBKR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N7002NXBKR is -55°C to 150°C.
-
Yes, the 2N7002NXBKR is suitable for high-frequency switching applications due to its low gate charge and high switching speed.
-
The maximum drain-source voltage rating for the 2N7002NXBKR is 60V.
-
Yes, the 2N7002NXBKR is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
The typical turn-on time for the 2N7002NXBKR is 10ns, and the typical turn-off time is 20ns.
