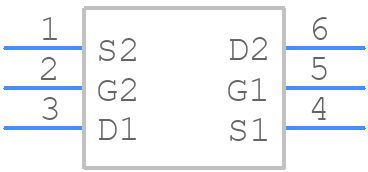

Part Symbol
-
Footprint
-

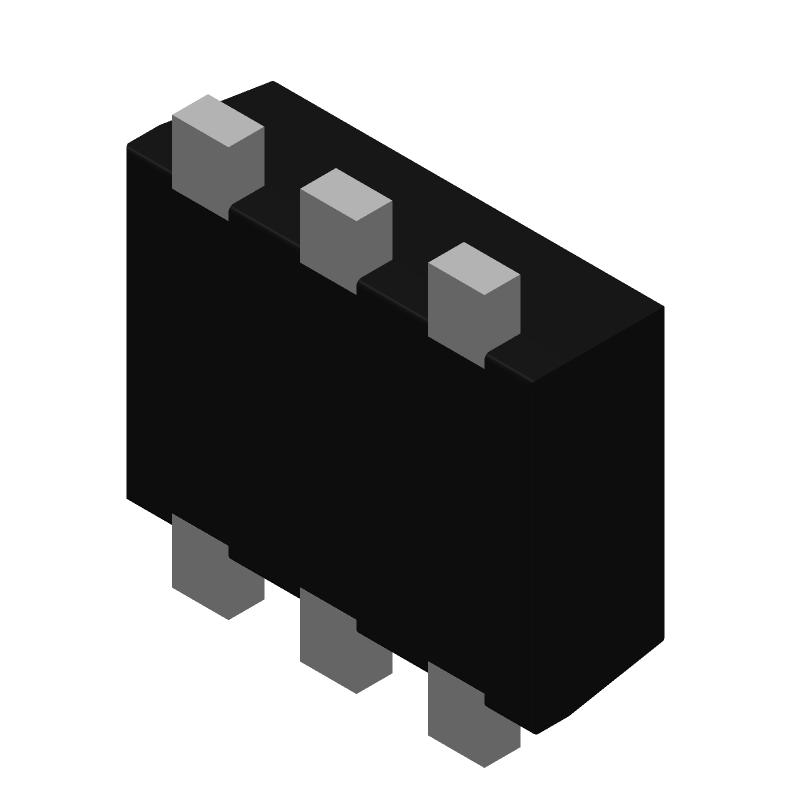

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002KV-TP by Micro Commercial Components
Results Overview of 2N7002KV-TP by Micro Commercial Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002KV-TP Information
2N7002KV-TP by Micro Commercial Components is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002KV-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-2N7002KV-TPCT-ND
|
DigiKey | MOSFET 2N-CH 60V 0.34A SOT563 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2278 In Stock |
|
$0.0625 / $0.4400 | Buy Now |
|
DISTI #
833-2N7002KV-TP
|
Mouser Electronics | MOSFETs N-CHANNEL MOSFET | 3000 |
|
$0.0620 / $0.4300 | Buy Now |
|
|
Future Electronics | SOT-563 SMALL SIGNAL MOSFET RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Container: Reel | 45000Reel |
|
$0.0608 / $0.0645 | Buy Now |
|
DISTI #
88082964
|
Verical | Trans MOSFET N-CH 60V 0.34A 6-Pin SOT-563 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2413 | Americas - 27000 |
|
$0.0884 / $0.1103 | Buy Now |
|
|
Future Electronics | SOT-563 SMALL SIGNAL MOSFET Min Qty: 3000 Package Multiple: 3000 |
45000 null |
|
$0.0645 / $0.0684 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 36000 |
|
$0.1052 / $0.1140 | Buy Now |
Part Details for 2N7002KV-TP
2N7002KV-TP CAD Models
2N7002KV-TP Part Data Attributes
|
|
2N7002KV-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
2N7002KV-TP
Micro Commercial Components
Small Signal Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.34 A | |
| Drain-source On Resistance-Max | 5.3 Ω | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | MATTE TIN | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
2N7002KV-TP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 2N7002KV-TP is -55°C to 150°C, although the datasheet only specifies a range of -40°C to 125°C for certain parameters.
-
To ensure proper biasing, the gate-source voltage (Vgs) should be between 2V and 4V, and the drain-source voltage (Vds) should be between 0V and 60V. Additionally, the gate current (Ig) should be limited to 10mA or less.
-
The maximum power dissipation for the 2N7002KV-TP is 1.5W, but this can be increased to 2.5W with proper heat sinking and thermal management.
-
While the 2N7002KV-TP can operate at high frequencies, its performance may degrade above 100MHz due to its internal capacitances and resistances. For high-frequency applications, a more specialized MOSFET may be required.
-
To protect the 2N7002KV-TP from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the device is properly grounded during assembly and testing.
