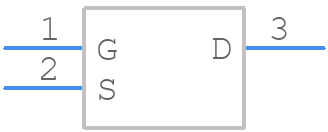

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002KS-TP by Micro Commercial Components
Results Overview of 2N7002KS-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002KS-TP Information
2N7002KS-TP by Micro Commercial Components is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002KS-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-2N7002KS-TP-ND
|
DigiKey | Interface Min Qty: 3000 Lead time: 20 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.0404 | Buy Now |
|
DISTI #
833-2N7002KS-TP
|
Mouser Electronics | MOSFETs N-CHANNEL MOSFET, SOT-23 RoHS: Compliant | 6000 |
|
$0.0290 / $0.2300 | Buy Now |
|
|
LCSC | SOT-23 MOSFETs ROHS | 1200 |
|
$0.0118 / $0.0225 | Buy Now |
Part Details for 2N7002KS-TP
2N7002KS-TP CAD Models
2N7002KS-TP Part Data Attributes
|
|
2N7002KS-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
2N7002KS-TP
Micro Commercial Components
Small Signal Field-Effect Transistor, 0.34A I(D), 60V,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.34 A | |
| Drain-source On Resistance-Max | 3 Ω | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | Tin (Sn) | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
2N7002KS-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N7002KS-TP is -55°C to 150°C.
-
The 2N7002KS-TP is a logic-level MOSFET, which means it can be driven directly by a microcontroller or other low-voltage logic device.
-
The maximum current rating for the 2N7002KS-TP is 500mA.
-
Yes, the 2N7002KS-TP is suitable for high-frequency switching applications due to its low gate charge and fast switching times.
-
The package type for the 2N7002KS-TP is a SOT-23-3 (TO-236).
