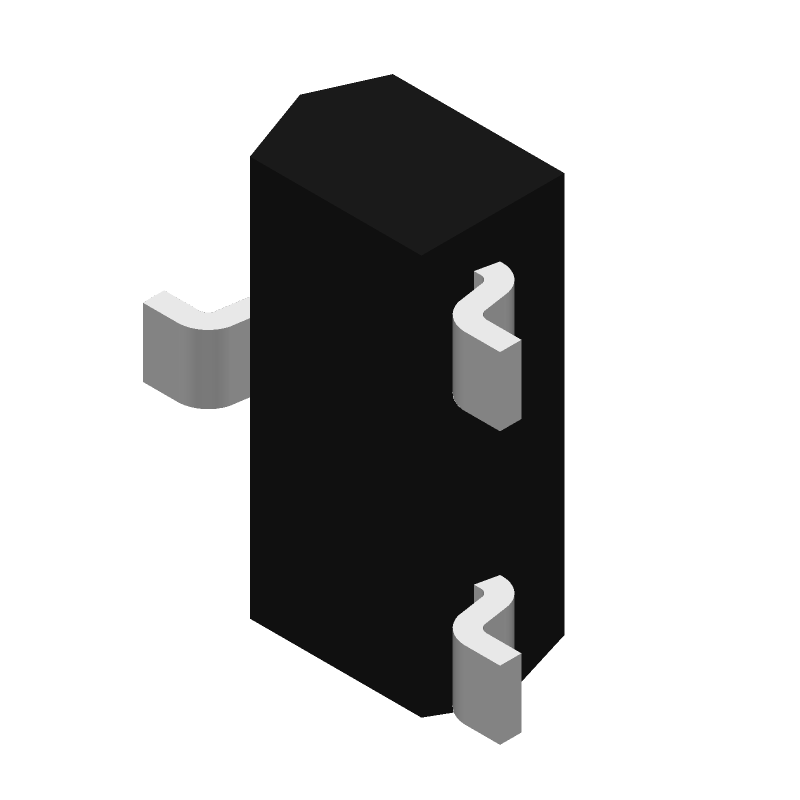

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002K by Nexperia
Results Overview of 2N7002K by Nexperia
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002K Information
2N7002K by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Part Details for 2N7002K
2N7002K CAD Models
2N7002K Part Data Attributes
|
|
2N7002K
Nexperia
Buy Now
Datasheet
|
Compare Parts:
2N7002K
Nexperia
Small Signal Field-Effect Transistor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOGIC LEVEL COMPATIBLE | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.34 A | |
| Drain-source On Resistance-Max | 3.9 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 10 pF | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for 2N7002K
This table gives cross-reference parts and alternative options found for 2N7002K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2N7002K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2N7002K-T1-E3 | Vishay Siliconix | Check for Price | TRANSISTOR 300 mA, 60 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-236, LEAD FREE PACKAGE-3, FET General Purpose Small Signal | 2N7002K vs 2N7002K-T1-E3 |
| 2N7002K-7 | Diodes Incorporated | $0.0275 | Small Signal Field-Effect Transistor, 0.3A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3 | 2N7002K vs 2N7002K-7 |
| 2N7002K-H | Formosa Microsemi Co Ltd | Check for Price | Small Signal Field-Effect Transistor, N-Channel, Metal-oxide Semiconductor FET | 2N7002K vs 2N7002K-H |
| 2N7002K_R1_00001 | PanJit Semiconductor | $0.0398 | Small Signal Field-Effect Transistor, N-Channel, Metal-oxide Semiconductor FET | 2N7002K vs 2N7002K_R1_00001 |
| 2N7002K | Kodenshi Sensing | Check for Price | SMALL SIGNAL, FET | 2N7002K vs 2N7002K |
| 2N7002KQ-7 | Diodes Incorporated | $0.0335 | Small Signal Field-Effect Transistor, 0.3A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3 | 2N7002K vs 2N7002KQ-7 |
| 2N7002K-C | Secos Corporation | Check for Price | Small Signal Field-Effect Transistor | 2N7002K vs 2N7002K-C |
| 2N7002P | NXP Semiconductors | Check for Price | 360mA, 60V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-236AB, PLASTIC PACKAGE-3 | 2N7002K vs 2N7002P |
| 2N7002KT-TP | Micro Commercial Components | Check for Price | Small Signal Field-Effect Transistor, 0.3A I(D), 60V, | 2N7002K vs 2N7002KT-TP |
