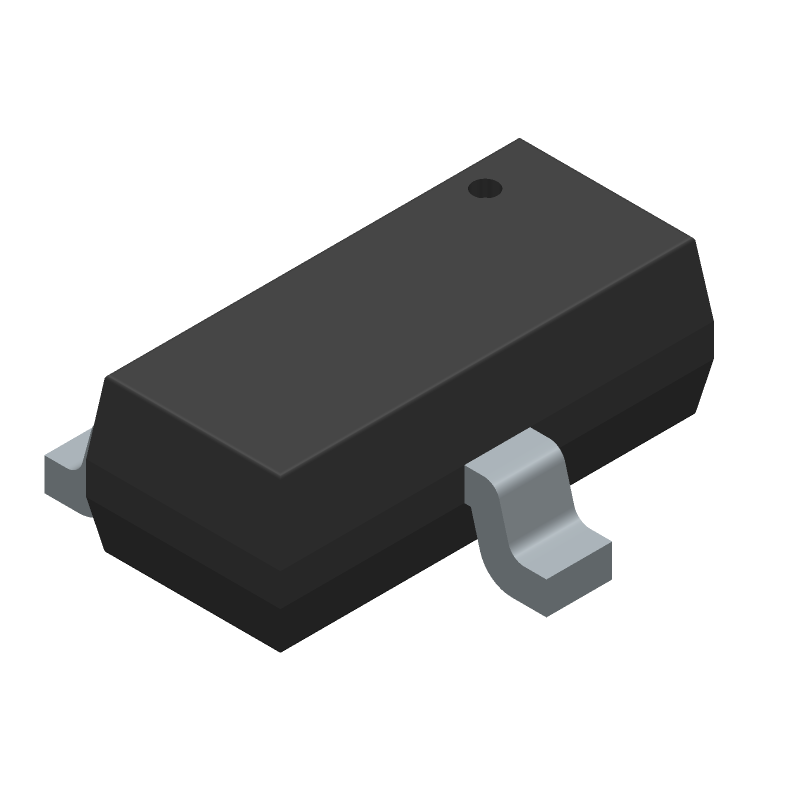

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002H-7 by Diodes Incorporated
Results Overview of 2N7002H-7 by Diodes Incorporated
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002H-7 Information
2N7002H-7 by Diodes Incorporated is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002H-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
30AK0334
|
Newark | Mosfet, N-Ch, 60V, 0.17A, Sot-23 Rohs Compliant: Yes |Diodes Inc. 2N7002H-7 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2565 |
|
$0.0590 / $0.1540 | Buy Now |
|
DISTI #
2N7002H-7DICT-ND
|
DigiKey | MOSFET N-CH 60V 170MA SOT23 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2354 In Stock |
|
$0.0250 / $0.1400 | Buy Now |
|
DISTI #
2N7002H-7
|
Avnet Americas | Transistor MOSFET N-CH 60V 0.2A 3-Pin SOT-23 T/R - Tape and Reel (Alt: 2N7002H-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 1185000 Factory Stock |
|
$0.0196 / $0.0209 | Buy Now |
|
DISTI #
621-2N7002H-7
|
Mouser Electronics | MOSFETs 60V N-Ch Enh FET 7.5Ohm 5Vgs 210mA RoHS: Compliant | 47784 |
|
$0.0270 / $0.1400 | Buy Now |
|
DISTI #
E02:0323_09045641
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.21A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2332 | Europe - 18000 |
|
$0.0223 | Buy Now |
|
DISTI #
V72:2272_06685888
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.21A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 2656 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2328 Container: Cut Strips | Americas - 2576 |
|
$0.0218 | Buy Now |
|
|
Future Electronics | N-Channel 60 V 170 mA 370 mW Enhancement Mode Surface Mount Mosfet - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.0199 / $0.0216 | Buy Now |
|
|
Future Electronics | N-Channel 60 V 170 mA 370 mW Enhancement Mode Surface Mount Mosfet - SOT-23 Min Qty: 3000 Package Multiple: 3000 |
6000 null |
|
$0.0199 / $0.0216 | Buy Now |
|
DISTI #
2N7002H-7
|
TME | Transistor: N-MOSFET, unipolar, 60V, 0.21A, 0.37W, SOT23 Min Qty: 1 | 11430 |
|
$0.0264 / $0.2332 | Buy Now |
|
DISTI #
2N7002H-7
|
Avnet Silica | Transistor MOSFET NCH 60V 02A 3Pin SOT23 TR (Alt: 2N7002H-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 3000 |
|
Buy Now |
Part Details for 2N7002H-7
2N7002H-7 CAD Models
2N7002H-7 Part Data Attributes
|
|
2N7002H-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
2N7002H-7
Diodes Incorporated
Small Signal Field-Effect Transistor, 0.17A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.17 A | |
| Drain-source On Resistance-Max | 7.5 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
2N7002H-7 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N7002H-7 is -55°C to 150°C.
-
Yes, the 2N7002H-7 is suitable for high-frequency switching applications due to its low gate charge and fast switching times.
-
The maximum drain-source voltage rating for the 2N7002H-7 is 60V.
-
Yes, the 2N7002H-7 is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
The typical on-state resistance of the 2N7002H-7 is around 2.5 ohms.
