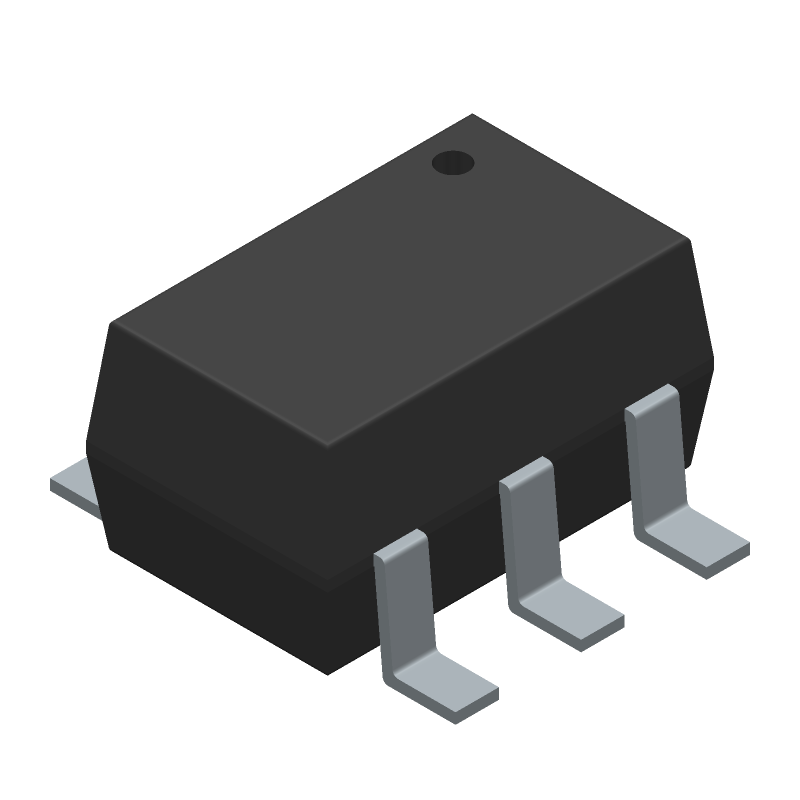

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002DW by onsemi
Results Overview of 2N7002DW by onsemi
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002DW Information
2N7002DW by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002DW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AH4089
|
Newark | Fet 60V 2.0 Mohm Sc70 Rohs Compliant: Yes |Onsemi 2N7002DW RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 9000 |
|
$0.0910 / $0.1010 | Buy Now |
|
DISTI #
05R0387
|
Newark | Mosfet, Dual N Channel, 60V, 115Ma, Sot-363, Channel Type:N Channel, Drain Source Voltage Vds N Channel:60V, Drain Source Voltage Vds P Channel:60V, Continuous Drain Current Id N Channel:115Ma, No. Of Pins:6Pins, Product Range:- Rohs Compliant: Yes |Onsemi 2N7002DW RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8260 |
|
$0.0870 / $0.1030 | Buy Now |
|
DISTI #
10N3235
|
Newark | N Channel Mosfet, 60V, 115Ma, Sot-363, Full Reel, Channel Type:N Channel, Drain Source Voltage Vds N Channel:60V, Drain Source Voltage Vds P Channel:60V, Continuous Drain Current Id N Channel:115Ma, No. Of Pins:6Pins, Product Range:-Rohs Compliant: Yes |Onsemi 2N7002DW RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0870 / $0.0880 | Buy Now |
|
DISTI #
2N7002DWCT-ND
|
DigiKey | MOSFET 2N-CH 60V 0.115A SC88 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
58703 In Stock |
|
$0.0706 / $0.3900 | Buy Now |
|
DISTI #
2N7002DW
|
Avnet Americas | MOSFET Array, Dual N Channel, 60 V, 115 mA, 2 Ohm, SOT-363, 6 Pin - Tape and Reel (Alt: 2N7002DW) RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 18000 Partner Stock |
|
$0.0644 / $0.0667 | Buy Now |
|
DISTI #
2N7002DW
|
Avnet Americas | MOSFET Array, Dual N Channel, 60 V, 115 mA, 2 Ohm, SOT-363, 6 Pin - Tape and Reel (Alt: 2N7002DW) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
2N7002DW
|
Avnet Americas | MOSFET Array, Dual N Channel, 60 V, 115 mA, 2 Ohm, SOT-363, 6 Pin - Tape and Reel (Alt: 2N7002DW) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
05R0387
|
Avnet Americas | MOSFET Array, Dual N Channel, 60 V, 115 mA, 2 Ohm, SOT-363, 6 Pin - Product that comes on tape, but is not reeled (Alt: 05R0387) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 3 Days Container: Ammo Pack | 0 |
|
$0.1170 / $0.2400 | Buy Now |
|
DISTI #
512-2N7002DW
|
Mouser Electronics | MOSFETs N-Chan Enhancement Mode Field Effect RoHS: Compliant | 95903 |
|
$0.0730 / $0.3700 | Buy Now |
|
DISTI #
E02:0323_00842533
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.115A 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2513 | Europe - 33000 |
|
$0.0630 / $0.0776 | Buy Now |
Part Details for 2N7002DW
2N7002DW CAD Models
2N7002DW Part Data Attributes
|
|
2N7002DW
onsemi
Buy Now
Datasheet
|
Compare Parts:
2N7002DW
onsemi
N-Channel Enhancement Mode Field Effect Transistor 60V, 0.115A, 2Ω, SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88-6 / SC-70-6 / SOT-363-6 | |
| Package Description | SC70, SC-88, SOT-363, 6 PIN | |
| Manufacturer Package Code | 419B-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.115 A | |
| Drain-source On Resistance-Max | 2 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 7 pF | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation Ambient-Max | 0.2 W | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for 2N7002DW
This table gives cross-reference parts and alternative options found for 2N7002DW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2N7002DW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2N7002DW-7-F | Diodes Incorporated | $0.1006 | Small Signal Field-Effect Transistor, 0.115A I(D), 60V, 2-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6 | 2N7002DW vs 2N7002DW-7-F |
2N7002DW Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N7002DW is -55°C to 150°C.
-
Yes, the 2N7002DW is suitable for high-frequency switching applications due to its low gate charge and low output capacitance.
-
No, the 2N7002DW is not suitable for high-power switching applications due to its limited drain-source voltage rating of 60V and drain current rating of 1.5A.
-
Yes, the 2N7002DW is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.
-
The typical turn-on and turn-off time for the 2N7002DW is around 10-20 ns, making it suitable for high-speed switching applications.
