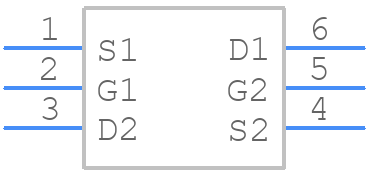

Part Symbol
-
Footprint
-

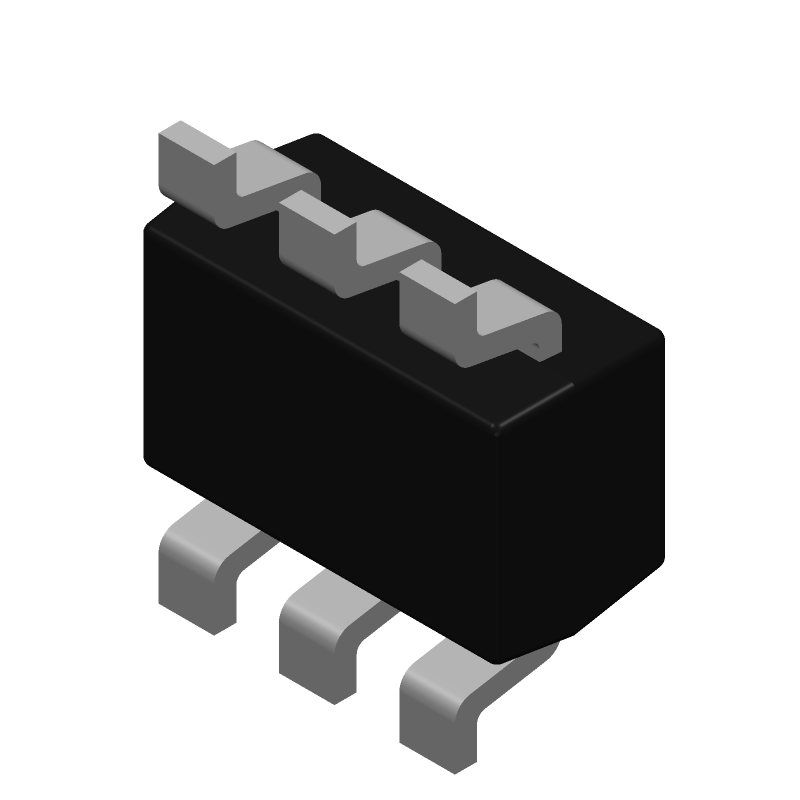

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002DW-TPQ2 by Micro Commercial Components
Results Overview of 2N7002DW-TPQ2 by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002DW-TPQ2 Information
2N7002DW-TPQ2 by Micro Commercial Components is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002DW-TPQ2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-2N7002DW-TPQ2-ND
|
DigiKey | MOSFET 2N-CH 60V 0.34A SOT363 Min Qty: 3000 Lead time: 18 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.0916 | Buy Now |
|
DISTI #
833-2N7002DW-TPQ2
|
Mouser Electronics | MOSFETs RoHS: Compliant | 0 |
|
$0.0730 / $0.3800 | Order Now |
|
|
Vyrian | Transistors | 556 |
|
RFQ |
Part Details for 2N7002DW-TPQ2
2N7002DW-TPQ2 CAD Models
2N7002DW-TPQ2 Part Data Attributes
|
|
2N7002DW-TPQ2
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
2N7002DW-TPQ2
Micro Commercial Components
Small Signal Field-Effect Transistor, 0.34A I(D), 60V,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.34 A | |
| Drain-source On Resistance-Max | 3 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 5 pF | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
2N7002DW-TPQ2 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 2N7002DW-TPQ2 is -55°C to 150°C.
-
While the 2N7002DW-TPQ2 can be used as a switch, it's not ideal for high-frequency applications due to its relatively high capacitance and inductance. It's better suited for low-frequency switching applications.
-
To ensure proper biasing, make sure to provide a sufficient gate-source voltage (Vgs) to fully turn on the device. A Vgs of at least 4.5V is recommended for optimal performance.
-
The maximum continuous drain current rating for the 2N7002DW-TPQ2 is 500mA. However, it's essential to consider the device's power dissipation and thermal characteristics to ensure reliable operation.
-
The 2N7002DW-TPQ2 has a maximum drain-source voltage rating of 60V. While it can be used in high-voltage applications, it's crucial to ensure the device is properly biased and that the voltage ratings are not exceeded to prevent damage or failure.
