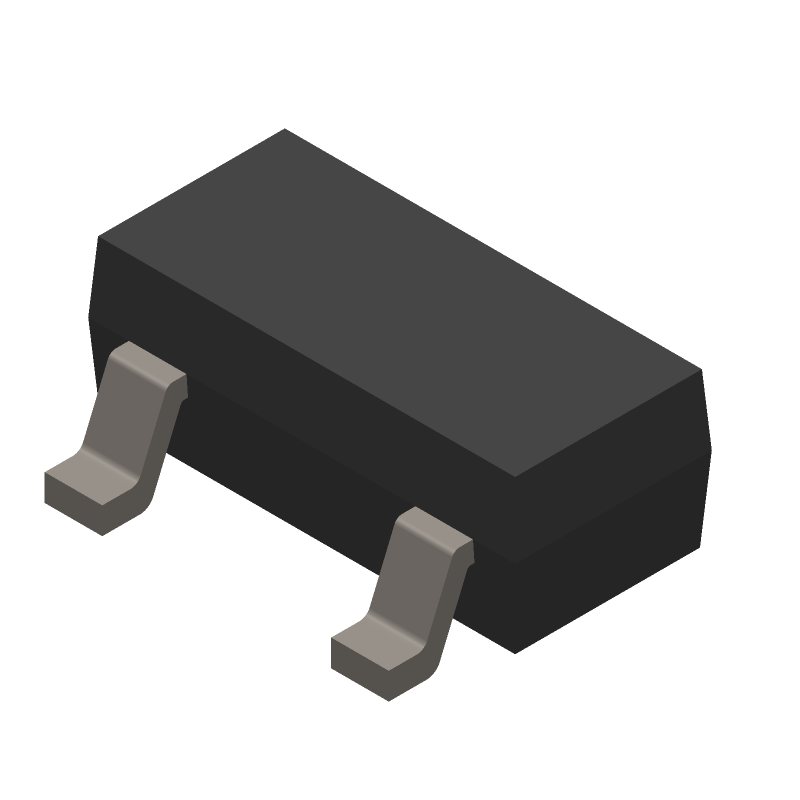

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N7002 by Diotec Semiconductor AG
Results Overview of 2N7002 by Diotec Semiconductor AG
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
2N7002 Information
2N7002 by Diotec Semiconductor AG is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N7002
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4878-2N7002CT-ND
|
DigiKey | MOSFET N-CH 60V 280MA SOT23-3 Min Qty: 1 Lead time: 2 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
28451 In Stock |
|
$0.0144 / $0.1200 | Buy Now |
|
DISTI #
637-2N7002
|
Mouser Electronics | MOSFETs MOSFET, SOT-23, 60V, 0.28A, 150C, N RoHS: Compliant | 186685 |
|
$0.0140 / $0.1200 | Buy Now |
|
DISTI #
E02:0323_15514784
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.28A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2446 | Europe - 828000 |
|
$0.0142 / $0.0292 | Buy Now |
|
|
Onlinecomponents.com | MOSFET - SOT-23 - 60V - 0.28A - N - 0.35W RoHS: Compliant |
506999 In Stock |
|
$0.0118 / $0.0173 | Buy Now |
|
DISTI #
87862291
|
Verical | Trans MOSFET N-CH 60V 0.28A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2446 | Americas - 828000 |
|
$0.0143 / $0.0294 | Buy Now |
|
DISTI #
68777921
|
Verical | Trans MOSFET N-CH 60V 0.28A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2227 | Americas - 506999 |
|
$0.0344 / $0.0411 | Buy Now |
|
DISTI #
87353315
|
Verical | Trans MOSFET N-CH 60V 0.28A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 2067 Package Multiple: 1 | Americas - 146751 |
|
$0.0339 | Buy Now |
|
DISTI #
88081073
|
Verical | Trans MOSFET N-CH 60V 0.28A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3900 Package Multiple: 100 | Americas - 4900 |
|
$0.0171 / $0.0214 | Buy Now |
|
DISTI #
2N7002-DIO
|
TME | Transistor: N-MOSFET, unipolar, 60V, 0.28A, 0.35W, SOT23 Min Qty: 1 | 112222 |
|
$0.0121 / $0.0877 | Buy Now |
|
DISTI #
TMOS6231
|
Rutronik | N-CH 60V 0,28A 5000mOhm SOT23 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Stock DE - 3000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0146 / $0.0189 | Buy Now |
Part Details for 2N7002
2N7002 CAD Models
2N7002 Part Data Attributes
|
|
2N7002
Diotec Semiconductor AG
Buy Now
Datasheet
|
Compare Parts:
2N7002
Diotec Semiconductor AG
Small Signal Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIOTEC SEMICONDUCTOR AG | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2019-07-12 | |
| Samacsys Manufacturer | Diotec | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.28 A | |
| Drain-source On Resistance-Max | 5 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 5 pF | |
| JEDEC-95 Code | TO-236 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.35 W | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
2N7002 Frequently Asked Questions (FAQ)
-
The 2N7002 can operate safely between -55°C to 150°C, but the recommended operating temperature range is -40°C to 125°C.
-
To ensure the 2N7002 is fully turned on, the gate-source voltage (Vgs) should be at least 4.5V, and the drain-source voltage (Vds) should be less than the gate-source voltage.
-
The 2N7002 can handle a maximum continuous drain current (Id) of 500mA, and a maximum pulsed drain current of 1A.
-
To protect the 2N7002 from ESD, handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container.
-
Yes, the 2N7002 can be used as a switch in high-frequency circuits, but be aware of the device's rise and fall times, and ensure the circuit is properly designed to minimize ringing and oscillations.
