2N6504 by:

25A, 50V, SCR, TO-220AB, CASE 221A-07, 3 PIN

Part Details for 2N6504 by onsemi

Results Overview of 2N6504 by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy Automotive Robotics and Drones

2N6504 Information

2N6504 by onsemi is a Silicon Controlled Rectifier.
Silicon Controlled Rectifiers are under the broader part category of Trigger Devices.

Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.

Price & Stock for 2N6504

Part # Distributor Description Stock Price Buy
Bristol Electronics   Min Qty: 3 49
  • 3 $1.8000
  • 13 $1.3500
  • 39 $1.1250
$1.1250 / $1.8000 Buy Now
Quest Components SILICON CONTROLLED RECTIFIER,50V V(DRM),8A I(T),TO-220 60
  • 1 $3.0000
  • 12 $1.8750
  • 41 $1.1250
$1.1250 / $3.0000 Buy Now
Quest Components SILICON CONTROLLED RECTIFIER,50V V(DRM),8A I(T),TO-220 39
  • 1 $2.4000
  • 3 $1.8000
  • 15 $1.5000
$1.5000 / $2.4000 Buy Now
Quest Components SILICON CONTROLLED RECTIFIER,50V V(DRM),8A I(T),TO-220 8
  • 1 $1.2300
  • 5 $1.0250
$1.0250 / $1.2300 Buy Now

Part Details for 2N6504

2N6504 CAD Models

  • Part Symbol

    Part Symbol

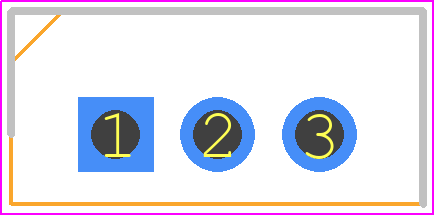

  • Footprint

    footprint

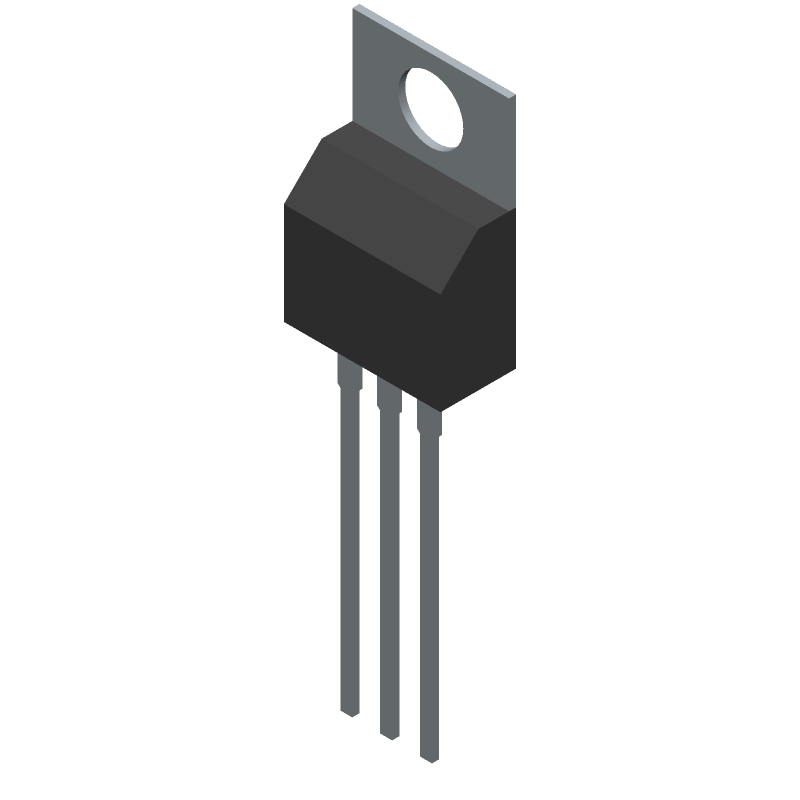

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2N6504 Part Data Attributes

Parametric Data
2N6504 onsemi
Buy Now Datasheet
Compare Parts:
2N6504 onsemi 25A, 50V, SCR, TO-220AB, CASE 221A-07, 3 PIN
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer ONSEMI
Part Package Code TO-220AB
Package Description CASE 221A-07, 3 PIN
Pin Count 3
Manufacturer Package Code CASE 221A-07
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.30.00.80
Samacsys Manufacturer onsemi
Case Connection ANODE
Configuration SINGLE
DC Gate Trigger Current-Max 30 mA
DC Gate Trigger Voltage-Max 1.5 V
Holding Current-Max 40 mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Leakage Current-Max 2 mA
Non-Repetitive Pk On-state Cur 250 A
Number of Elements 1
Number of Terminals 3
On-state Current-Max 8000 A
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
RMS On-state Current-Max 25 A
Repetitive Peak Off-state Voltage 50 V
Repetitive Peak Reverse Voltage 50 V
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Trigger Device Type SCR
