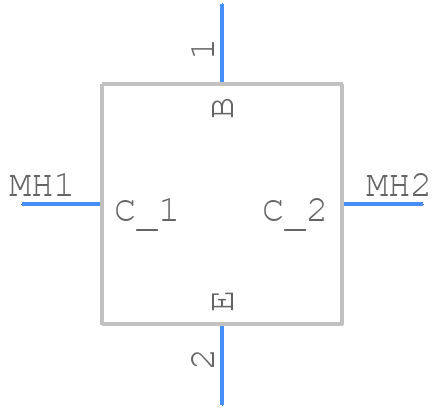

Part Symbol
-

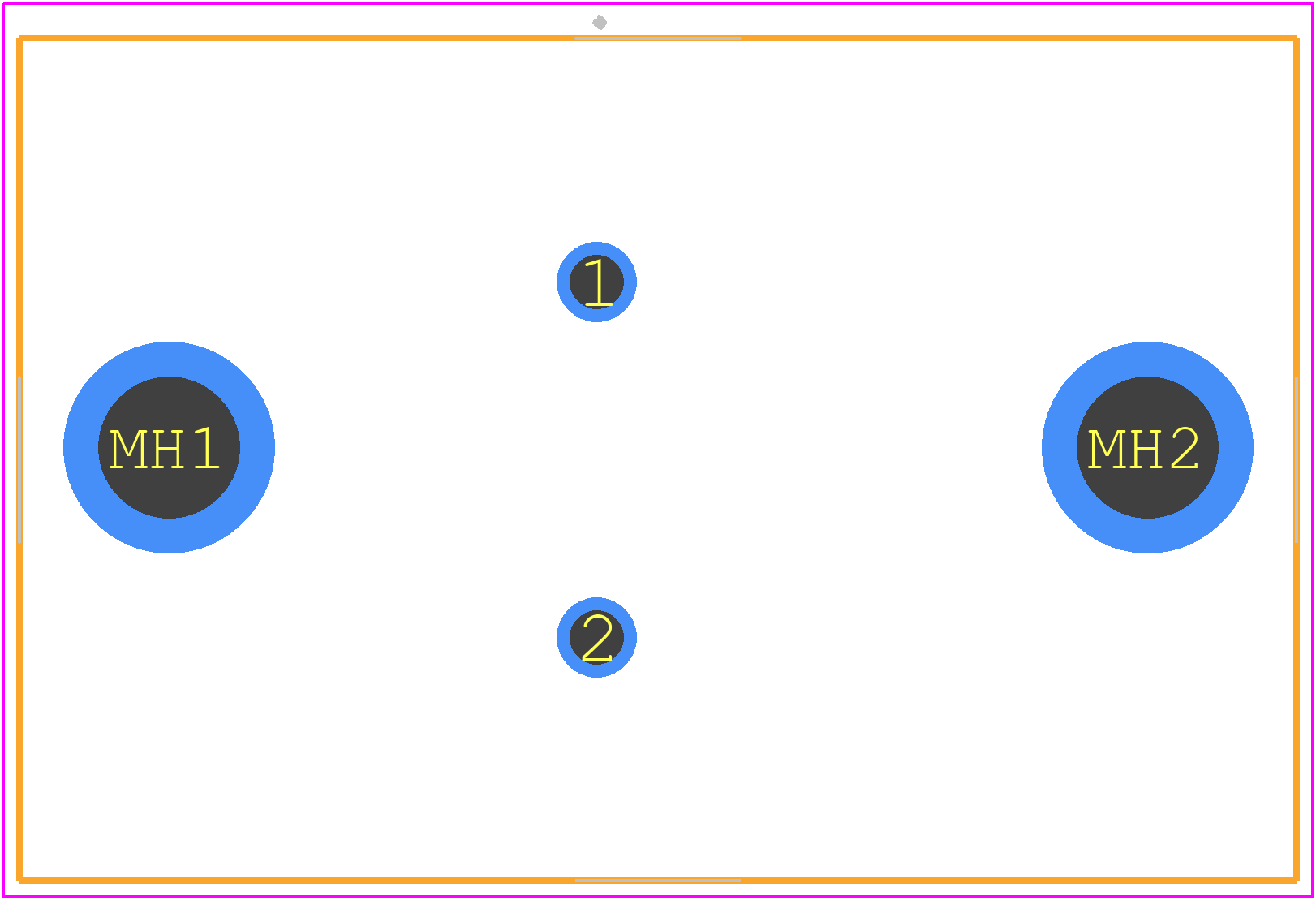

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N5686 by SPC Multicomp
Results Overview of 2N5686 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
2N5686 Information
2N5686 by SPC Multicomp is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N5686
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01H1383
|
Newark | Bipolar Transistor, Npn, 80V, To-3, Transistor Polarity:Npn, Collector Emitter Voltage Max:80V, Continuous Collector Current:50A, Power Dissipation:300W, Transistor Mounting:Through Hole, No. Of Pins:2Pins, Transition Frequency:2Mhz Rohs Compliant: Yes |Multicomp Pro 2N5686 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 93 |
|
$5.6000 / $10.8400 | Buy Now |
Part Details for 2N5686
2N5686 CAD Models
2N5686 Part Data Attributes
|
|
2N5686
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
2N5686
SPC Multicomp
Power Bipolar Transistor,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 50 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 5 | |
| JEDEC-95 Code | TO-3 | |
| JESD-30 Code | O-MBFM-P2 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | METAL | |
| Package Shape | ROUND | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | NPN | |
| Surface Mount | NO | |
| Terminal Form | PIN/PEG | |
| Terminal Position | BOTTOM | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 2 MHz |
Alternate Parts for 2N5686
This table gives cross-reference parts and alternative options found for 2N5686. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2N5686, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2N5686 | Mospec Semiconductor Corp | Check for Price | Power Bipolar Transistor, 50A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin, TO-3, 2 PIN | 2N5686 vs 2N5686 |
| 2N5686 | Motorola Semiconductor Products | Check for Price | Power Bipolar Transistor, 50A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AE, Metal, 2 Pin | 2N5686 vs 2N5686 |
2N5686 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N5686 is -55°C to 150°C, as specified in the datasheet. However, it's recommended to operate the transistor within a temperature range of -40°C to 125°C for optimal performance and reliability.
-
Yes, the 2N5686 can be used as a switch, but it's essential to ensure that the transistor is properly biased and that the collector-emitter voltage is within the recommended range to avoid overheating or damage.
-
The maximum collector current that the 2N5686 can handle is 1 A, as specified in the datasheet. However, it's recommended to derate the current based on the operating temperature and the application's requirements to ensure reliable operation.
-
The 2N5686 is a general-purpose transistor and is not optimized for high-frequency applications. It has a transition frequency (fT) of around 100 MHz, which makes it suitable for low-to-medium frequency applications. For high-frequency applications, a transistor with a higher fT is recommended.
-
Yes, the 2N5686 can be used in a linear amplifier circuit, but it's essential to ensure that the transistor is properly biased and that the operating point is within the recommended range to avoid distortion and ensure linear operation.
