2N4393 Information
2N4393 by InterFET Corporation is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N4393
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
106-2N4393
|
Mouser Electronics | JFETs JFET N-Channel -40V Low Noise RoHS: Compliant | 121 |
|
$7.5300 / $11.8900 | Buy Now |
Part Details for 2N4393

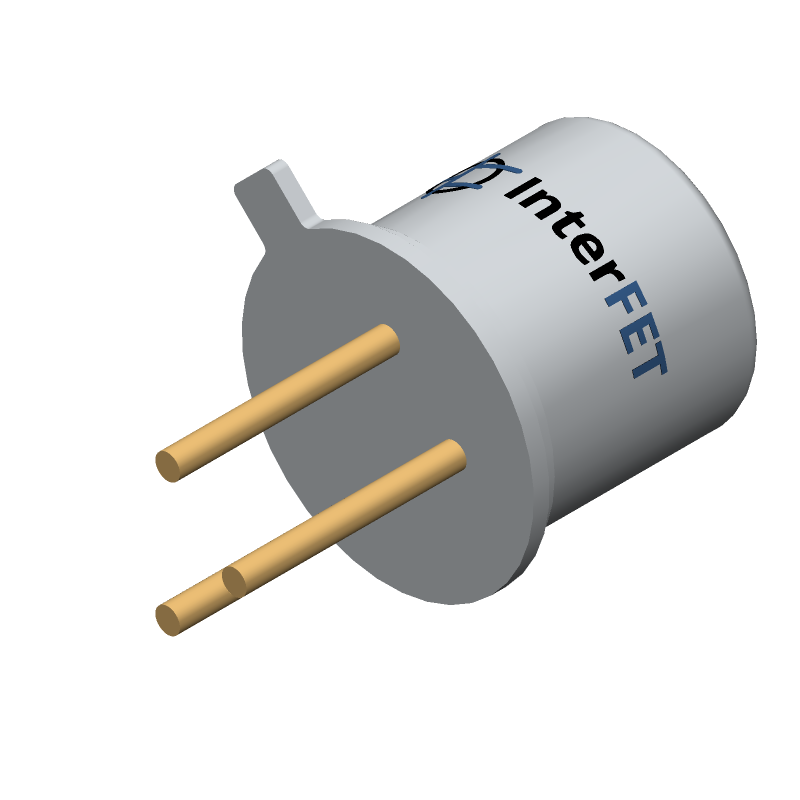

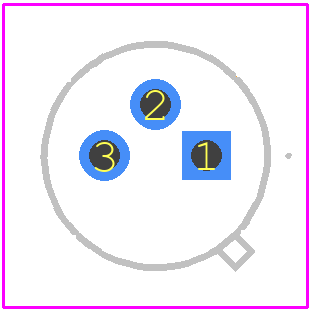

2N4393 CAD Models
2N4393 Part Data Attributes
|
|
2N4393
InterFET Corporation
Buy Now
Datasheet
|
Compare Parts:
2N4393
InterFET Corporation
Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-18
|
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | INTER F E T CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Samacsys Manufacturer | InterFET | |
| Case Connection | GATE | |
| Configuration | SINGLE | |
| Drain-source On Resistance-Max | 100 Ω | |
| FET Technology | JUNCTION | |
| JEDEC-95 Code | TO-18 | |
| JESD-30 Code | O-MBCY-W3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | METAL | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation Ambient-Max | 1.8 W | |
| Power Dissipation-Max (Abs) | 1.8 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Form | WIRE | |
| Terminal Position | BOTTOM | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for 2N4393
This table gives cross-reference parts and alternative options found for 2N4393. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2N4393, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2N4393 | Micro Electronics Ltd | Check for Price | Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-18, | 2N4393 vs 2N4393 |
| 2N4393 | National Semiconductor Corporation | Check for Price | TRANSISTOR N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-18, FET General Purpose Small Signal | 2N4393 vs 2N4393 |
| 2N4393 | NEC Electronics America Inc | Check for Price | Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-18, | 2N4393 vs 2N4393 |
| 2N4393 | Calogic Inc | Check for Price | Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-18, | 2N4393 vs 2N4393 |
