Transistors / Small Signal Bipolar Transistors / 2N3904RL1G
Datasheets
2N3904RL1G by: onsemi

NPN Bipolar Transistor, TO-92 40 V, 0.2 A, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL

Part Details for 2N3904RL1G by onsemi

Results Overview of 2N3904RL1G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

2N3904RL1G Information

2N3904RL1G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for 2N3904RL1G

Part # Distributor Description Stock Price Buy
DISTI # 2N3904RL1G
Avnet Americas - Tape and Reel (Alt: 2N3904RL1G) RoHS: Compliant Min Qty: 24000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Reel 0
RFQ
Bristol Electronics   6779
RFQ
Bristol Electronics   190
RFQ
Bristol Electronics   50
RFQ
Quest Components   1040
  • 1 $0.1730
  • 73 $0.0779
  • 643 $0.0519
$0.0519 / $0.1730 Buy Now

Part Details for 2N3904RL1G

2N3904RL1G CAD Models

  • Part Symbol

    Part Symbol

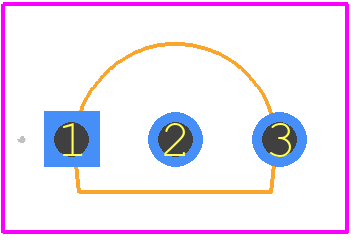

  • Footprint

    footprint

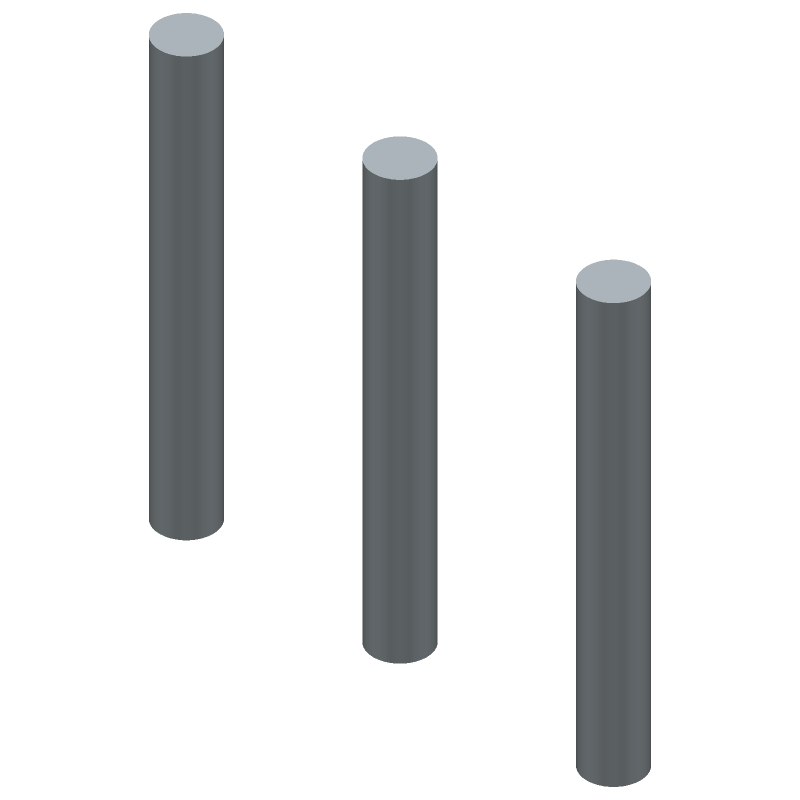

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2N3904RL1G Part Data Attributes

Parametric Data
2N3904RL1G onsemi
Buy Now Datasheet
Compare Parts:
2N3904RL1G onsemi NPN Bipolar Transistor, TO-92 40 V, 0.2 A, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ONSEMI
Part Package Code TO-92 (TO-226) 5.33mm Body Height
Package Description TO-226, 3 PIN
Pin Count 3
Manufacturer Package Code 29-11
Reach Compliance Code unknown
ECCN Code EAR99
Factory Lead Time 111 Weeks
Samacsys Manufacturer onsemi
Additional Feature EUROPEAN PART NUMBER
Collector Current-Max (IC) 0.2 A
Collector-Emitter Voltage-Max 40 V
Configuration SINGLE
DC Current Gain-Min (hFE) 30
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T3
JESD-609 Code e1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.625 W
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish TIN SILVER COPPER
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 300 MHz
Turn-off Time-Max (toff) 250 ns
Turn-on Time-Max (ton) 70 ns

Alternate Parts for 2N3904RL1G

This table gives cross-reference parts and alternative options found for 2N3904RL1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2N3904RL1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
2N3904TRF Central Semiconductor Corp Check for Price Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 2N3904RL1G vs 2N3904TRF
2N3904BU Rochester Electronics LLC Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN 2N3904RL1G vs 2N3904BU
2N3904 NEC Electronics Group Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 2N3904RL1G vs 2N3904
2N3904 MINILOGIC Device Corp Check for Price Small Signal Bipolar Transistor, 0.2A I(C), NPN 2N3904RL1G vs 2N3904
2N3904 Samsung Semiconductor Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 2N3904RL1G vs 2N3904
2N3904BU Fairchild Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN 2N3904RL1G vs 2N3904BU
2N3904TRH Central Semiconductor Corp Check for Price Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 2N3904RL1G vs 2N3904TRH
2N3904 National Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 2N3904RL1G vs 2N3904
2N3904,126 NXP Semiconductors Check for Price 2N3904 2N3904RL1G vs 2N3904,126
2N3904TRA Central Semiconductor Corp Check for Price Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 2N3904RL1G vs 2N3904TRA
Part Number Manufacturer Composite Price Description Compare
2N3904G onsemi Check for Price NPN Bipolar Transistor, TO-92 40 V, 0.2 A, TO-92 (TO-226) 5.33mm Body Height, 5000-BLKBX 2N3904RL1G vs 2N3904G
2N3904/D27Z-J35Z Texas Instruments Check for Price 200mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR 2N3904RL1G vs 2N3904/D27Z-J35Z
2N3904TAR Fairchild Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN 2N3904RL1G vs 2N3904TAR
2N3904RLRA onsemi Check for Price NPN Bipolar Transistor, TO-92, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL 2N3904RL1G vs 2N3904RLRA
MMST3904 ROHM Semiconductor Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SMT3, SC-59, 3 PIN 2N3904RL1G vs MMST3904
MMBT3904 Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN 2N3904RL1G vs MMBT3904
BC238B Central Semiconductor Corp Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92-18R, 3 PIN 2N3904RL1G vs BC238B
2N3904 KEC Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN 2N3904RL1G vs 2N3904
MMBT3906/S62Z Texas Instruments Check for Price 200mA, 40V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB 2N3904RL1G vs MMBT3906/S62Z
2N3904RLRA Motorola Mobility LLC Check for Price 200mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 2N3904RL1G vs 2N3904RLRA

2N3904RL1G Related Parts

2N3904RL1G Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for the 2N3904RL1G is a standard SOT-23 package with a 1.3mm x 0.8mm body size and 0.5mm lead pitch. A minimum pad size of 0.6mm x 0.6mm is recommended for reliable soldering.

  • While the 2N3904RL1G can be used as a switch, its transition frequency (fT) is around 300 MHz, which may not be suitable for very high-frequency circuits. However, it can be used in circuits up to 100 MHz with proper design and layout considerations.

  • To ensure reliable operation in high-temperature environments, make sure to follow the recommended operating temperature range of -55°C to 150°C, and consider derating the device's power dissipation accordingly. Also, ensure good thermal design and heat sinking to prevent overheating.

  • Yes, the 2N3904RL1G can be used in linear amplifier circuits, but its relatively low current gain (hFE) of 100-300 may not provide sufficient amplification. Consider using a Darlington pair or a different transistor with higher current gain for better performance.

  • To prevent electrostatic discharge (ESD) damage, handle the 2N3904RL1G with ESD-safe materials, wear an ESD strap, and ensure that your workspace is ESD-protected. Also, consider adding ESD protection circuits or devices in your design to prevent damage from external ESD events.
