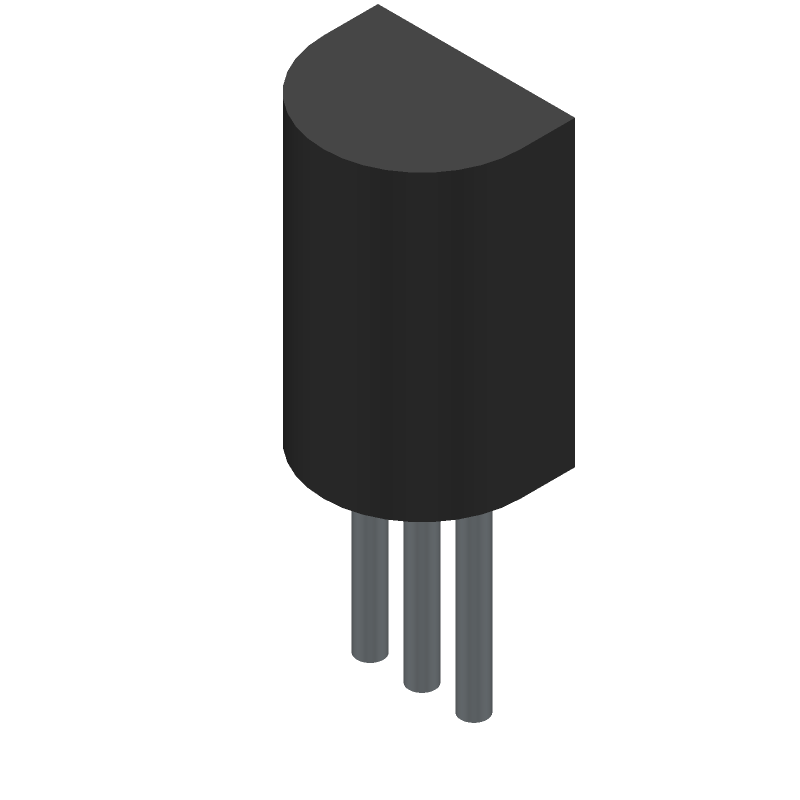

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N3704 by SPC Multicomp
Results Overview of 2N3704 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2N3704 Information
2N3704 by SPC Multicomp is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N3704
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08N7700
|
Newark | Bipolar Transistor, Npn, 30V, To-92, Transistor Polarity:Npn, Collector Emitter Voltage Max:30V, Continuous Collector Current:800Ma, Power Dissipation:625Mw, Transistor Mounting:Through Hole, No. Of Pins:3Pins, Product Range:- Rohs Compliant: Yes |Multicomp Pro 2N3704 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 15473 |
|
$0.0490 / $0.1530 | Buy Now |
Part Details for 2N3704
2N3704 CAD Models
2N3704 Part Data Attributes
|
|
2N3704
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
2N3704
SPC Multicomp
Power Bipolar Transistor, 0.6A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, Plastic/Epoxy, 3 Pin,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Multicomp Pro | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Base Capacitance-Max | 12 pF | |
| Collector-Emitter Voltage-Max | 30 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-92 | |
| JESD-30 Code | O-PBCY-W3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 625 W | |
| Power Dissipation-Max (Abs) | 625 W | |
| Surface Mount | NO | |
| Terminal Form | WIRE | |
| Terminal Position | BOTTOM | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz | |
| VCEsat-Max | 0.6 V |
2N3704 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N3704 is -55°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
-
While the 2N3704 can be used as a switch, it's not recommended for high-frequency applications (>100 kHz) due to its relatively high transition frequency (ft) of 300 MHz. For high-frequency switching, consider using a transistor with a higher ft, such as the 2N5551 or 2N5401.
-
To ensure the 2N3704 is fully turned on or off in a digital circuit, make sure to provide a base current (Ib) that is at least 1/10th of the collector current (Ic) and use a base resistor (Rb) that is sufficiently small to minimize the voltage drop across it. A general rule of thumb is to use Rb ≤ (Vcc - Vbe) / (10 * Ic), where Vcc is the supply voltage and Vbe is the base-emitter voltage.
-
The 2N3704 is not ideal for use in a linear amplifier circuit due to its relatively low current gain (hFE) of 100-300 and high collector-emitter saturation voltage (Vce(sat)) of 0.5-1.5V. For linear amplifier applications, consider using a transistor with a higher hFE and lower Vce(sat), such as the 2N3904 or 2N4401.
-
The 2N3704 has a maximum collector-emitter voltage (Vceo) of 40V, so it's not suitable for high-voltage applications (>40V). For high-voltage applications, consider using a transistor with a higher Vceo, such as the 2N5551 or 2N5401.
