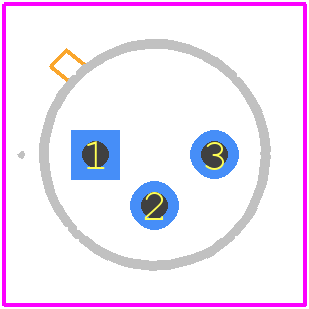

Footprint
-

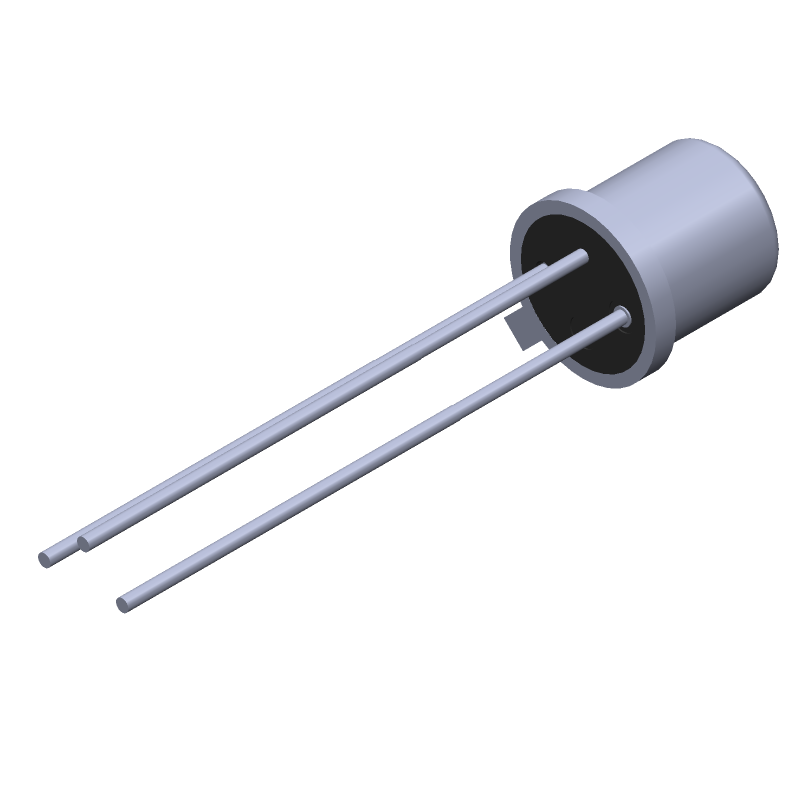

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N2907 by SPC Multicomp
Results Overview of 2N2907 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
2N2907 Information
2N2907 by SPC Multicomp is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N2907
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98K6241
|
Newark | Bipolar (Bjt) Single Transistor, Pnp, 40 V, 400 Mw, 600 Ma, 100 Rohs Compliant: Yes |Multicomp Pro 2N2907 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 8465 |
|
$0.2220 / $0.2630 | Buy Now |
Part Details for 2N2907
2N2907 CAD Models
2N2907 Part Data Attributes
|
|
2N2907
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
2N2907
SPC Multicomp
Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, METAL CAN, TO-18, 3 PIN
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Part Package Code | BCY | |
| Package Description | METAL CAN, TO-18, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-18 | |
| JESD-30 Code | O-MBCY-W3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Package Body Material | METAL | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Polarity/Channel Type | PNP | |
| Surface Mount | NO | |
| Terminal Form | WIRE | |
| Terminal Position | BOTTOM | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 200 MHz | |
| Turn-off Time-Max (toff) | 100 ns | |
| Turn-on Time-Max (ton) | 45 ns |
Alternate Parts for 2N2907
This table gives cross-reference parts and alternative options found for 2N2907. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2N2907, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2N2907 | Semitronics Corp | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN | 2N2907 vs 2N2907 |
| 2N2907 | New England Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-206AA, | 2N2907 vs 2N2907 |
| JANTXV2N2907 | Motorola Semiconductor Products | Check for Price | Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, | 2N2907 vs JANTXV2N2907 |
| 2N2907 | Rochester Electronics LLC | Check for Price | 600mA, 40V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-206AA | 2N2907 vs 2N2907 |
| JANTX2N2907 | Microsemi Corporation | Check for Price | Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, | 2N2907 vs JANTX2N2907 |
| 2N2907CECC | TT Electronics Resistors | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN | 2N2907 vs 2N2907CECC |
| JAN2N2907 | Motorola Mobility LLC | Check for Price | 40V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-18 | 2N2907 vs JAN2N2907 |
| 2N2907 | National Semiconductor Corporation | Check for Price | TRANSISTOR 600 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-18, BIP General Purpose Small Signal | 2N2907 vs 2N2907 |
2N2907 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 2N2907 is -55°C to 150°C.
-
Yes, the 2N2907 is suitable for high-frequency applications up to 100 MHz due to its high transition frequency (fT) of 300 MHz.
-
The maximum collector current rating for the 2N2907 is 500 mA.
-
Yes, the 2N2907 can be used in switching applications due to its fast switching times (rise time: 10 ns, fall time: 20 ns) and low saturation voltage (Vce(sat) = 0.5 V).
-
Yes, the 2N2907 has a low noise figure (NF) of 2 dB, making it suitable for low-noise amplifier applications.
