2DU3L Information
2DU3L by Altech Corporation is a Circuit Breaker.
Circuit Breaker are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 2DU3L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95AK4433
|
Newark | 2Du3L,3.0A Mcb, dchar,2Pole |Altech 2DU3L RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$53.4100 / $61.5300 | Buy Now |
|
DISTI #
845-2DU3L
|
Mouser Electronics | Circuit Breakers 3DU05L,0.5A,MCB,DCHAR,3POLE RoHS: Compliant | 0 |
|
$45.4900 / $75.8100 | Order Now |
|
|
Onlinecomponents.com | ^^^ Temporarily Limited to Available Stock ^^^ - Evaluate 2D3UL as an alternate RoHS: Compliant | 0 |
|
$42.2500 / $55.4700 | Buy Now |
|
|
Powell Electronics | 2DU3L,3.0A MCB,DCHAR,2POLE Min Qty: 1 | 16 |
|
$104.1000 | Buy Now |
|
|
Vyrian | Circuit Protection | 16 |
|
RFQ |
Part Details for 2DU3L

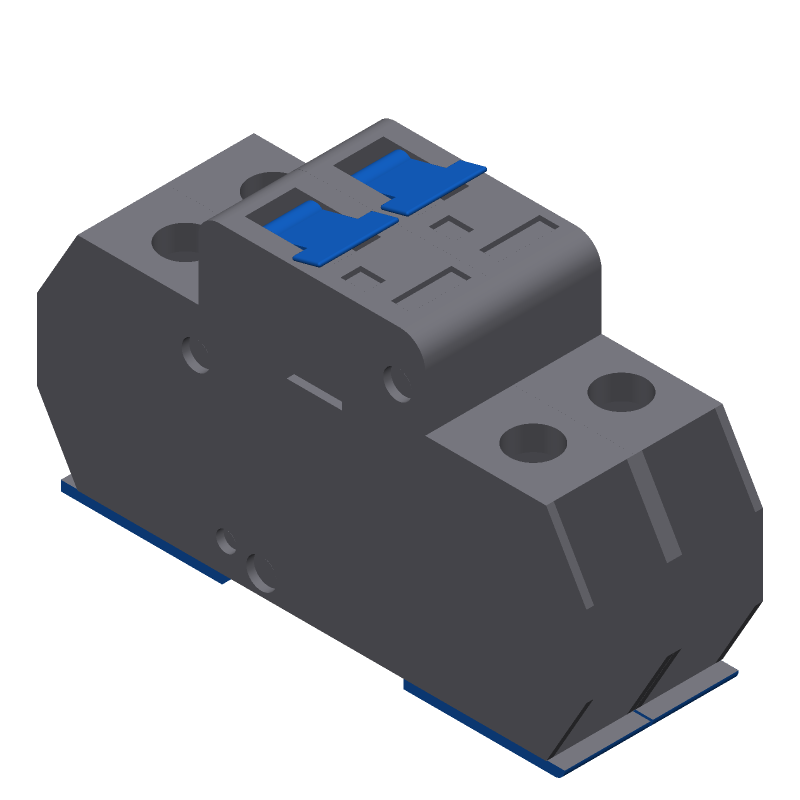

2DU3L CAD Models
2DU3L Part Data Attributes
|
|
2DU3L
Altech Corporation
Buy Now
Datasheet
|
Compare Parts:
2DU3L
Altech Corporation
Thermal Magnetic Circuit Breaker,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALTECH CORP | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Altech | |
| Actuator Type | TOGGLE HANDLE | |
| Body Breadth | 35 mm | |
| Body Height | 60 mm | |
| Body Length or Diameter | 109 mm | |
| Circuit Function | TRIP | |
| Circuit Protection Type | THERMAL MAGNETIC CIRCUIT BREAKER | |
| Environmental Characteristics | IP20 | |
| Mounting Feature | DIN RAIL | |
| Number of Poles | 2 | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -25 °C | |
| Packing Method | BULK | |
| Rated Breaking Capacity | 10000 A | |
| Rated Current | 3 A | |
| Rated Voltage(AC) | 480 V | |
| Reference Standard | CE, CUL, UL | |
| Surface Mount | NO | |
| Terminal Shape | SNAP ON |
