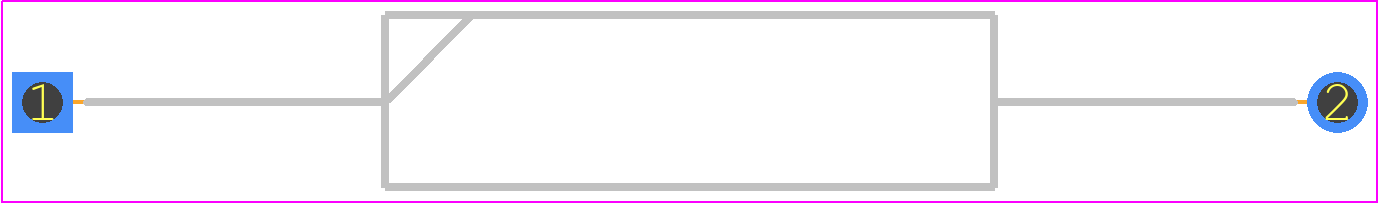

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2CL2FM by HVCA & CKE
Results Overview of 2CL2FM by HVCA & CKE
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2CL2FM Information
2CL2FM by HVCA & CKE is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for 2CL2FM
2CL2FM CAD Models
2CL2FM Part Data Attributes
|
|
2CL2FM
HVCA & CKE
Buy Now
Datasheet
|
Compare Parts:
2CL2FM
HVCA & CKE
Rectifier Diode, 1 Element, 0.1A, 20000V V(RRM), Silicon
|
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | HV COMPONENT ASSOCIATES INC | |
| Package Description | O-XALF-W2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | HVCA | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 35 V | |
| JESD-30 Code | O-XALF-W2 | |
| Non-rep Pk Forward Current-Max | 10 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Output Current-Max | 0.1 A | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 20000 V | |
| Reverse Recovery Time-Max | 0.1 µs | |
| Surface Mount | NO | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
