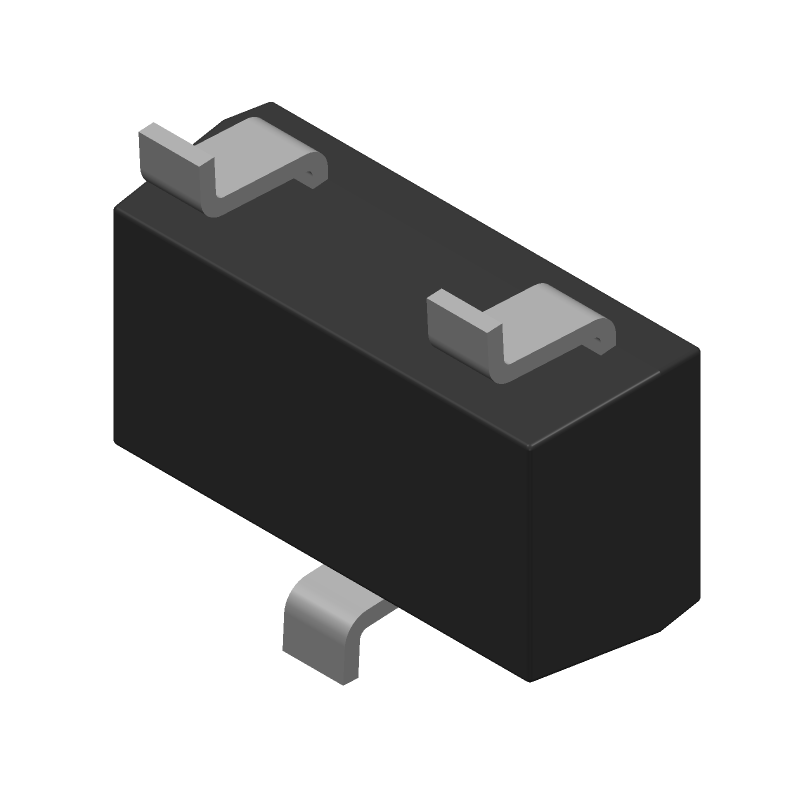

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2SD1048-7-TB-E by onsemi
Results Overview of 2SD1048-7-TB-E by onsemi
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
2SD1048-7-TB-E Information
2SD1048-7-TB-E by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2SD1048-7-TB-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65T2510
|
Newark | Bip Transistor 15V 0.7A Vce(Sat), 25Mv Max. Npn Single Cp/ Reel |Onsemi 2SD1048-7-TB-E RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0880 / $0.1480 | Buy Now |
|
DISTI #
2SD1048-7-TB-EOSCT-ND
|
DigiKey | TRANS NPN 15V 0.7A 3-CP Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1819 In Stock |
|
$0.1348 / $0.5100 | Buy Now |
|
DISTI #
2SD1048-7-TB-E
|
Avnet Americas | - Tape and Reel (Alt: 2SD1048-7-TB-E) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0790 / $0.0844 | Buy Now |
|
DISTI #
863-2SD1048-7-TB-E
|
Mouser Electronics | Bipolar Transistors - BJT BIP NPN 0.7A 15V RoHS: Compliant | 3947 |
|
$0.0820 / $0.3900 | Buy Now |
|
DISTI #
V36:1790_07285167
|
Arrow Electronics | Trans GP BJT NPN 15V 0.7A 200mW 3-Pin SC-59 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks | Americas - 3000 |
|
$0.0738 / $0.0848 | Buy Now |
|
DISTI #
87892108
|
Verical | Trans GP BJT NPN 15V 0.7A 200mW 3-Pin SC-59 T/R RoHS: Compliant Min Qty: 326 Package Multiple: 1 | Americas - 3000 |
|
$0.1910 / $0.3740 | Buy Now |
|
DISTI #
82703732
|
Verical | Trans GP BJT NPN 15V 0.7A 200mW 3-Pin SC-59 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2422 | Americas - 3000 |
|
$0.0738 / $0.0848 | Buy Now |
|
|
Rochester Electronics | Small Signal Bipolar Transistor, 0.7A, NPN RoHS: Compliant Status: Active Min Qty: 1 | 200 |
|
$0.0664 / $0.1071 | Buy Now |
|
DISTI #
2SD1048-7-TB-E
|
Avnet Silica | (Alt: 2SD1048-7-TB-E) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
2SD1048-7-TB-E
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3000 |
|
$0.0806 / $0.3740 | Buy Now |
Part Details for 2SD1048-7-TB-E
2SD1048-7-TB-E CAD Models
2SD1048-7-TB-E Part Data Attributes
|
|
2SD1048-7-TB-E
onsemi
Buy Now
Datasheet
|
Compare Parts:
2SD1048-7-TB-E
onsemi
Bipolar Transistor, (-)15V, (-)0.7A, Low VCE(sat), (PNP)NPN Single CP, SC-59 / CP, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-59 / CP | |
| Package Description | SC-59, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 318BJ | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.7 A | |
| Collector-Emitter Voltage-Max | 15 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 300 | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e6 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Surface Mount | YES | |
| Terminal Finish | TIN BISMUTH | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 250 MHz |
2SD1048-7-TB-E Frequently Asked Questions (FAQ)
-
The maximum SOA for the 2SD1048-7-TB-E is typically defined by the voltage and current ratings, but it's recommended to consult the application notes or contact onsemi support for specific guidance on SOA.
-
To ensure reliable operation at high temperatures, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consult the datasheet for thermal resistance and junction-to-case thermal resistance values.
-
For optimal performance and thermal management, it's recommended to follow onsemi's application notes and PCB layout guidelines, which provide guidance on pad layout, thermal vias, and heat sink design.
-
To protect the transistor from ESD, it's essential to follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, consider implementing ESD protection circuits in your design.
-
For reliable assembly and soldering, follow onsemi's recommended soldering profiles and techniques, which include using a soldering iron with a temperature range of 250°C to 260°C, and ensuring a soldering time of less than 3 seconds.
