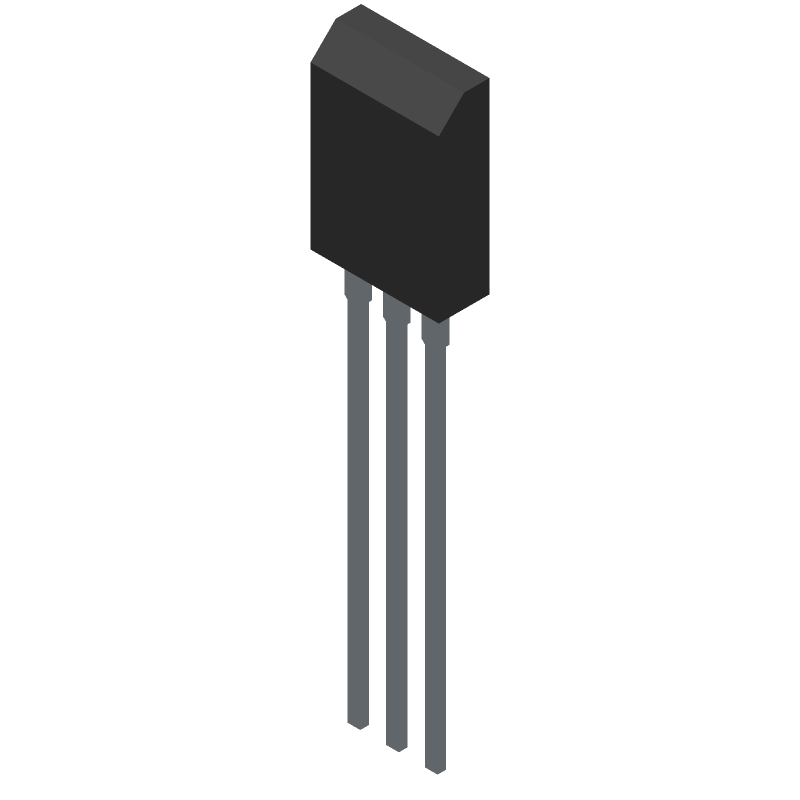

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2N6039G by onsemi
Results Overview of 2N6039G by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2N6039G Information
2N6039G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2N6039G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K3163
|
Newark | Darlington Transistor, Npn, 80V, To-225, Transistor Polarity:Npn, No. Of Pins:3Pins, Transistor Mounting:Through Hole, Operating Temperature Max:150°C, Product Range:-, Qualification:-, Collector Emitter Voltage Max:80V Rohs Compliant: Yes |Onsemi 2N6039G RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
Bristol Electronics | Min Qty: 5 | 8 |
|
$1.1250 | Buy Now |
|
|
Quest Components | 4 A, 80 V, NPN, SI, POWER TRANSISTOR, TO-225AA | 6 |
|
$1.2000 / $1.5000 | Buy Now |
|
DISTI #
2N6039G
|
Avnet Silica | Transistor Darlington NPN 80V 4A 3Pin TO225 Bulk (Alt: 2N6039G) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for 2N6039G
2N6039G CAD Models
2N6039G Part Data Attributes
|
|
2N6039G
onsemi
Buy Now
Datasheet
|
Compare Parts:
2N6039G
onsemi
4.0 A, 80 V NPN Darlington Bipolar Power Transistor, TO-225, 500-BLKBX
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-225 | |
| Package Description | ROHS COMPLIANT, PLASTIC, CASE 77-09, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 77-09 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 4 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-225AA | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 1.5 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 25 MHz |
2N6039G Frequently Asked Questions (FAQ)
-
The maximum safe operating area (SOA) for the 2N6039G is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. As a general guideline, the SOA is typically limited by the device's maximum junction temperature, which is 150°C for the 2N6039G.
-
To ensure the 2N6039G is properly biased for linear operation, you should ensure that the base-emitter voltage (VBE) is within the recommended range (typically 0.6-0.8V) and that the collector-emitter voltage (VCE) is sufficient to maintain a linear operating region. Additionally, the base current should be limited to prevent saturation.
-
The recommended heatsink design for the 2N6039G depends on the specific application and operating conditions. However, as a general guideline, a heatsink with a thermal resistance of 1-2°C/W is recommended to maintain a safe junction temperature. The heatsink should also be designed to minimize thermal resistance and ensure good thermal contact with the device.
-
While the 2N6039G is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's switching characteristics, such as turn-on and turn-off times, may not be optimized for high-frequency switching. Additionally, the device's maximum collector current and voltage ratings should be carefully considered to ensure reliable operation.
-
To protect the 2N6039G from electrostatic discharge (ESD), it is recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that all equipment and tools are properly grounded. Additionally, the device should be stored in an ESD-safe environment and handled with ESD-safe materials.
