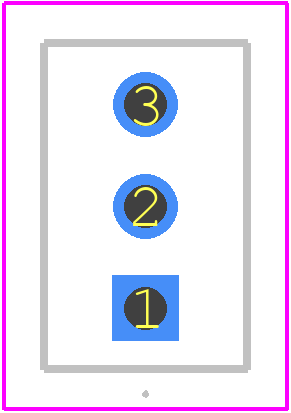

Footprint
-

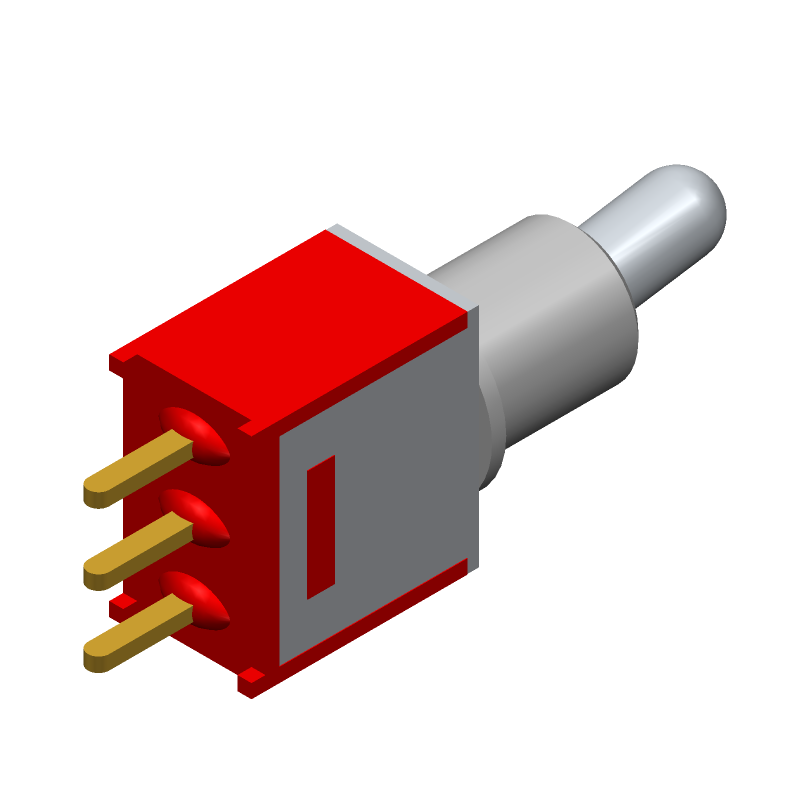

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2MS3T2B2M2RE by SPC Multicomp
Results Overview of 2MS3T2B2M2RE by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2MS3T2B2M2RE Information
2MS3T2B2M2RE by SPC Multicomp is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 2MS3T2B2M2RE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98K6235
|
Newark | Switch, Toggle, Spdt, 100Ma, 20V, Switch Operation:On-Off-On, Contact Configuration:Spdt, Illumination:Non Illuminated, Product Range:2Ms Series, Contact Current Max:100Ma, Switch Mounting:Through Hole, Contact Voltage Ac Nom:20V Rohs Compliant: Yes |Multicomp Pro 2MS3T2B2M2RE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.1100 / $2.6900 | Buy Now |
Part Details for 2MS3T2B2M2RE
2MS3T2B2M2RE CAD Models
2MS3T2B2M2RE Part Data Attributes
|
|
2MS3T2B2M2RE
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
2MS3T2B2M2RE
SPC Multicomp
Toggle Switch, SPDT, Latched, 0.4A, 20VDC, Solder Terminal, Toggle Actuator, Through Hole-straight,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Actuator Type | TOGGLE | |
| Additional Feature | PANEL MOUNTABLE | |
| Body Breadth | 5.08 mm | |
| Body Height | 8.64 mm | |
| Body Length or Diameter | 8.13 mm | |
| Contact (AC) Max Rating R Load | .4A@20VAC | |
| Contact Current(AC)-Max | 0.4 A | |
| Contact Current(DC)-Max | 0.4 A | |
| Contact (DC) Max Rating R Load | .4A@20VDC | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Sealing | EPOXY TERMINAL SEALED | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPDT | |
| Switch Type | TOGGLE SWITCH | |
| Termination Type | SOLDER |
2MS3T2B2M2RE Frequently Asked Questions (FAQ)
-
The recommended storage temperature for 2MS3T2B2M2RE is -40°C to 100°C.
-
Yes, the 2MS3T2B2M2RE is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The operating temperature range for 2MS3T2B2M2RE is -40°C to 85°C.
-
Yes, the 2MS3T2B2M2RE is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, industrial, and aerospace.
-
Yes, the 2MS3T2B2M2RE is designed to operate in humid environments, with a moisture sensitivity level (MSL) of 3, which means it can withstand humidity levels up to 30°C/60% RH.
