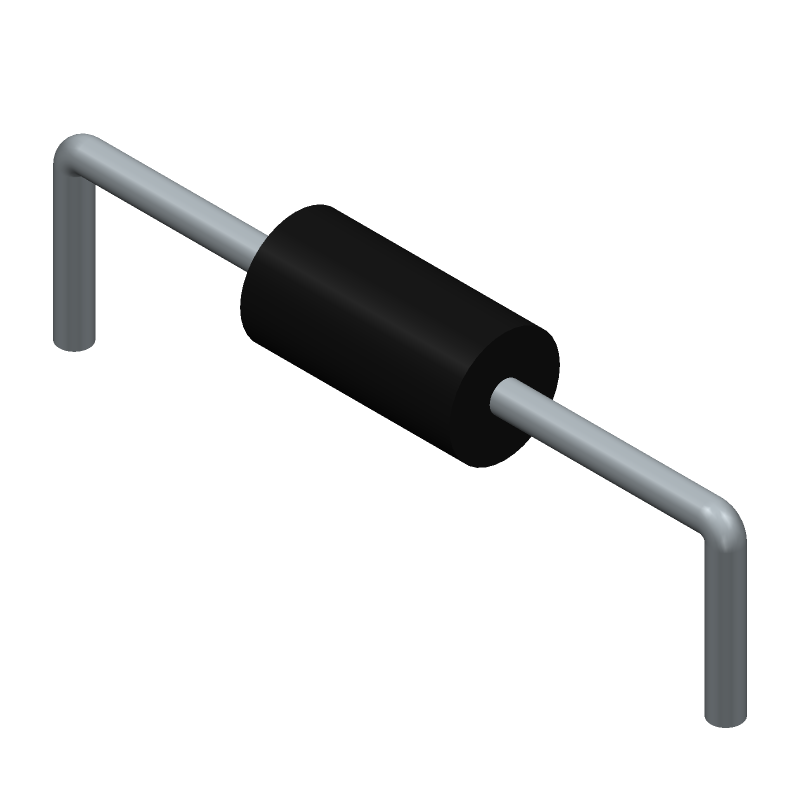

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 299-100-RC by Xicon Passive Components
Results Overview of 299-100-RC by Xicon Passive Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
299-100-RC Information
299-100-RC by Xicon Passive Components is a Carbon Film Resistor.
Carbon Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for 299-100-RC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 1000 |
|
RFQ |
Part Details for 299-100-RC
299-100-RC CAD Models
299-100-RC Part Data Attributes
|
|
299-100-RC
Xicon Passive Components
Buy Now
Datasheet
|
Compare Parts:
299-100-RC
Xicon Passive Components
RES,AXIAL,CARBON FILM,100 OHMS,200WV,5% +/-TOL,-450PPM TC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | XICON PASSIVE COMPONENTS | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Xicon | |
| Construction | Cylindrical | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.45 mm | |
| Lead Length | 28 mm | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 1.85 mm | |
| Package Length | 3.5 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | Bulk | |
| Rated Power Dissipation (P) | 0.125 W | |
| Resistance | 100 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Technology | CARBON FILM | |
| Temperature Coefficient | -450 ppm/°C | |
| Terminal Finish | Tin (Sn) | |
| Tolerance | 5% | |
| Working Voltage | 200 V |
299-100-RC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 299-100-RC resistor is between 250°C to 260°C for a maximum of 3 seconds.
-
The 299-100-RC resistor is a general-purpose resistor and may not be suitable for high-frequency applications above 100 MHz. For high-frequency applications, consider using a specialized high-frequency resistor.
-
The 299-100-RC resistor has a moisture sensitivity level (MSL) of 1, which means it can be exposed to a maximum of 30°C/60% RH for 168 hours without being damaged.
-
The 299-100-RC resistor is not AEC-Q200 qualified, which means it may not meet the specific requirements for automotive applications. For automotive applications, consider using an AEC-Q200 qualified resistor.
-
The recommended storage condition for the 299-100-RC resistor is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 60%.
