Capacitors / Fixed Capacitors / 298D226X0010M2T
Datasheets
298D226X0010M2T by:

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP

Part Details for 298D226X0010M2T by Vishay Intertechnologies

Results Overview of 298D226X0010M2T by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy Automotive

298D226X0010M2T Information

298D226X0010M2T by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 298D226X0010M2T

Part # Distributor Description Stock Price Buy
DISTI # 69AC4016
Newark Cap, Tant, 22Uf, 10V, Case M, Capacitance:22Μf, Voltage(Dc):10V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 20%, Esr:10Ohm, Manufacturer Size Code:M, Failure Rate:-, Ripple Current:50Ma, Product Length:1.6Mmrohs Compliant: Yes |Vishay 298D226X0010M2T RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.9300
$0.9300 Buy Now
DISTI # 69AC4017
Newark Cap, Tant, 22Uf, 10V, Case M, Capacitance:22Μf, Voltage(Dc):10V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 20%, Esr:10Ohm, Manufacturer Size Code:M, Failure Rate:-, Ripple Current:50Ma, Product Length:1.6Mmrohs Compliant: Yes |Vishay 298D226X0010M2T RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $0.6900
  • 6,000 $0.6650
  • 10,000 $0.6400
$0.6400 / $0.6900 Buy Now
DISTI # 298D226X0010M2T
Avnet Americas 298D226X0010M2T - Tape and Reel (Alt: 298D226X0010M2T) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.6250
  • 8,000 $0.6098
  • 16,000 $0.6024
  • 24,000 $0.5983
  • 32,000 $0.5952
$0.5952 / $0.6250 Buy Now
DISTI # 74-298D226X0010M2T
Mouser Electronics Tantalum Capacitors - Solid SMD 22uF 10volts 20% M case MAP RoHS: Compliant 0
  • 1 $1.9300
  • 10 $1.0500
  • 100 $0.9680
  • 500 $0.8370
  • 1,000 $0.7960
  • 4,000 $0.7200
  • 8,000 $0.7000
$0.7000 / $1.9300 Order Now
DISTI # 298D226X0010M2T
IBS Electronics CAP TANT SOLID 22UF 10V M CASE 20% (1.6 X 0.85 X 0.9MM) INWARD L SMD 10 OHM 125C T/R Min Qty: 4000 Package Multiple: 1 0
  • 4,000 $0.8060
$0.8060 Buy Now
LCSC 22uF 10V 10100kHz 20% CASE-M-1608-09(mm) Tantalum Capacitors ROHS 2
  • 10 $0.3126
  • 30 $0.2845
  • 100 $0.2494
  • 500 $0.2338
  • 1,000 $0.2244
  • 2,000 $0.2225
  • 4,000 $0.2212
$0.2212 / $0.3126 Buy Now

Part Details for 298D226X0010M2T

298D226X0010M2T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

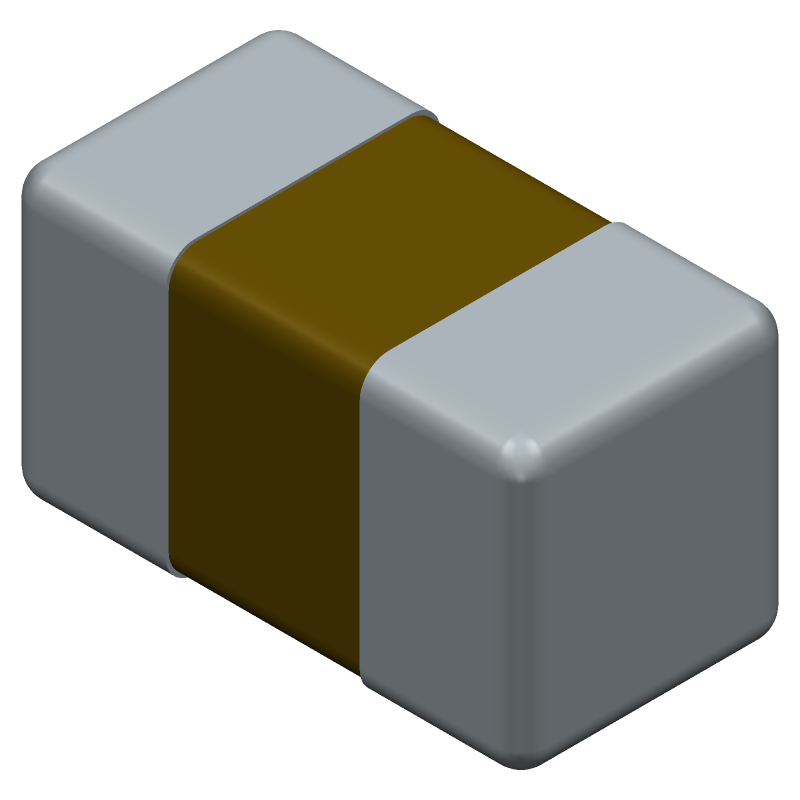

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

298D226X0010M2T Part Data Attributes

Parametric Data
298D226X0010M2T Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
298D226X0010M2T Vishay Intertechnologies Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 16 Weeks
Samacsys Manufacturer Vishay
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 22 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 10000 mΩ
Height 0.9 mm
JESD-609 Code e3
Leakage Current 0.022 mA
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Ripple Current 20 mA
Size Code 0603
Surface Mount YES
Tan Delta 0.4
Terminal Finish TIN
Terminal Shape WRAPAROUND
Width 0.85 mm

Alternate Parts for 298D226X0010M2T

This table gives cross-reference parts and alternative options found for 298D226X0010M2T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 298D226X0010M2T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
298D226X0010M2T Vishay Sprague Check for Price CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 22 uF, SURFACE MOUNT, 0603, CHIP, GREEN 298D226X0010M2T vs 298D226X0010M2T
TLCL226M010RTA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 298D226X0010M2T vs TLCL226M010RTA
TLCL226M010NTA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP 298D226X0010M2T vs TLCL226M010NTA
TLCL226M010MTA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP 298D226X0010M2T vs TLCL226M010MTA
TLCL226M010FTA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 298D226X0010M2T vs TLCL226M010FTA
TLCL226M010PTA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 298D226X0010M2T vs TLCL226M010PTA
TLCL226M010HTA Kyocera AVX Components Check for Price Tantalum Capacitor, Tantalum (dry/solid), 298D226X0010M2T vs TLCL226M010HTA
TLCL226M010QTA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 298D226X0010M2T vs TLCL226M010QTA
TLCL226M010XTA Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 298D226X0010M2T vs TLCL226M010XTA

298D226X0010M2T Related Parts

298D226X0010M2T Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 298D226X0010M2T capacitor is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, the 298D226X0010M2T capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The 298D226X0010M2T capacitor is rated for operation up to 125°C, but it's not recommended for use in environments above 125°C without derating the voltage and current ratings.

  • The recommended storage condition for the 298D226X0010M2T capacitor is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 70%.

  • Yes, the 298D226X0010M2T capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
