Capacitors / Fixed Capacitors / 293D685X9025C2WE3
Datasheets
293D685X9025C2WE3 by:

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP

Part Details for 293D685X9025C2WE3 by Vishay Intertechnologies

Results Overview of 293D685X9025C2WE3 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems

293D685X9025C2WE3 Information

293D685X9025C2WE3 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 293D685X9025C2WE3

Part # Distributor Description Stock Price Buy
DISTI # 69AC4008
Newark Cap, Tant, 6.8Uf, 25V, Case C, Capacitance:6.8Μf, Voltage(Dc):25V, Capacitor Case/Package:2412 [6032 Metric], Capacitance Tolerance:± 10%, Esr:1.7Ohm, Manufacturer Size Code:C, Failure Rate:-, Ripple Current:250Ma, Qualification:- Rohs Compliant: Yes |Vishay 293D685X9025C2WE3 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 250 $0.3050
$0.3050 Buy Now
DISTI # 09K6788
Newark Cap, Tant, 6.8Uf, 25V, Case C, Capacitance:6.8Μf, Voltage(Dc):25V, Capacitor Case/Package:2412 [6032 Metric], Capacitance Tolerance:± 10%, Esr:1.7Ohm, Manufacturer Size Code:C, Failure Rate:-, Ripple Current:250Ma, Qualification:- Rohs Compliant: Yes |Vishay 293D685X9025C2WE3 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.3040
  • 5,000 $0.2980
  • 10,000 $0.2780
  • 20,000 $0.2610
  • 30,000 $0.2460
  • 50,000 $0.2360
$0.2360 / $0.3040 Buy Now
DISTI # 293D685X9025C2WE3
Avnet Americas 293D685X9025C2We3 - Tape and Reel (Alt: 293D685X9025C2WE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel 3000
  • 3,000 $0.1068
  • 6,000 $0.1063
  • 12,000 $0.1057
  • 18,000 $0.1052
  • 24,000 $0.1046
$0.1046 / $0.1068 Buy Now
DISTI # 74-293D685X9025C2WE3
Mouser Electronics Tantalum Capacitors - Solid SMD 6.8UF 25V 10% 6032-28 RoHS: Compliant 3000
  • 1 $0.7900
  • 10 $0.5380
  • 100 $0.3880
  • 500 $0.3190
  • 1,000 $0.2960
  • 3,000 $0.2710
  • 6,000 $0.2540
  • 9,000 $0.2350
  • 24,000 $0.2230
$0.2230 / $0.7900 Buy Now
Future Electronics Cap Tant Solid 6.8uF 25V C CASE 10% (6 X 3.2 X 2.5mm) RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel 3000
Reel
  • 3,000 $0.1110
  • 6,000 $0.1090
  • 12,000 $0.1080
  • 15,000 $0.1060
$0.1060 / $0.1110 Buy Now
DISTI # 293D685X9025C2WE3
TTI Tantalum Capacitors - Solid SMD 6.8UF 25V 10% 6032-28 RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel Americas - 0
  • 3,000 $0.2210
  • 6,000 $0.2170
  • 9,000 $0.2130
  • 15,000 $0.2080
  • 24,000 $0.2040
$0.2040 / $0.2210 Buy Now
Future Electronics Cap Tant Solid 6.8uF 25V C CASE 10% (6 X 3.2 X 2.5mm) Min Qty: 3000 Package Multiple: 3000 3000
null
  • 3,000 $0.1110
  • 6,000 $0.1090
  • 12,000 $0.1080
  • 15,000 $0.1060
$0.1060 / $0.1110 Buy Now
DISTI # 293D685X9025C2WE3
Avnet Abacus 293D685X9025C2We3 - Tape and Reel (Alt: 293D685X9025C2WE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for 293D685X9025C2WE3

293D685X9025C2WE3 CAD Models

  • Part Symbol

    Part Symbol

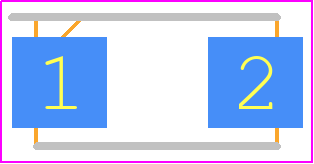

  • Footprint

    footprint

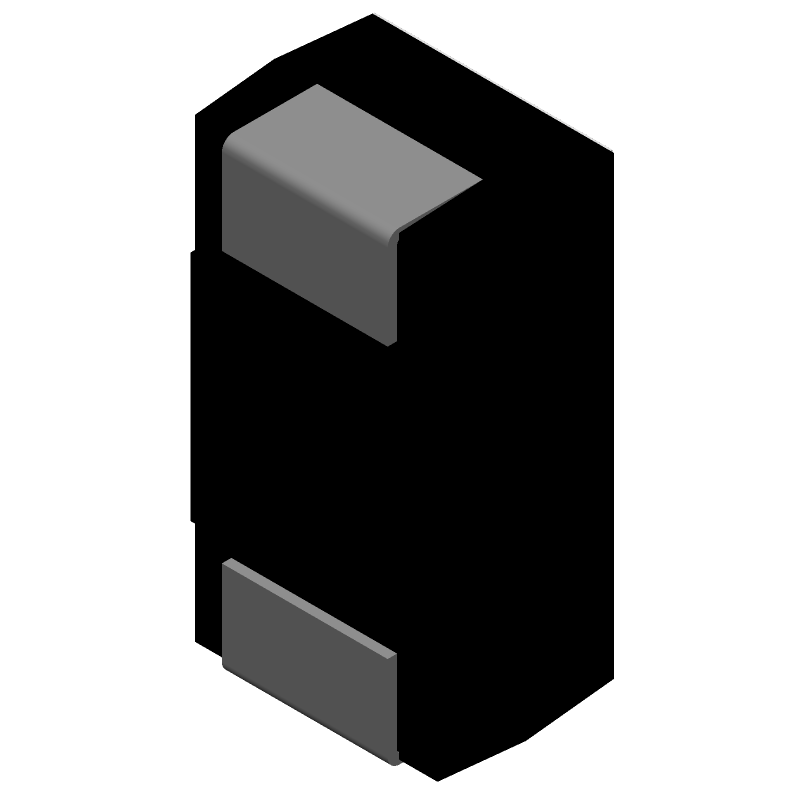

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

293D685X9025C2WE3 Part Data Attributes

Parametric Data
293D685X9025C2WE3 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
293D685X9025C2WE3 Vishay Intertechnologies Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 13 Weeks
Samacsys Manufacturer Vishay
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 6.8 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 1700 mΩ
Height 2.5 mm
JESD-609 Code e3
Leakage Current 0.0017 mA
Length 6 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, Embossed Plastic, 13 Inch
Polarity POLARIZED
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 25 V
Ripple Current 250 mA
Size Code 2312
Surface Mount YES
Tan Delta 0.06
Terminal Finish MATTE TIN
Terminal Shape J BEND
Width 3.2 mm

Alternate Parts for 293D685X9025C2WE3

This table gives cross-reference parts and alternative options found for 293D685X9025C2WE3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 293D685X9025C2WE3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
293D685X9025C2TE3 Vishay Intertechnologies $0.1850 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP 293D685X9025C2WE3 vs 293D685X9025C2TE3
T494C685K025AH KEMET Corporation $0.6183 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2413, CHIP 293D685X9025C2WE3 vs T494C685K025AH
T494C685K025AT KEMET Corporation $0.6183 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2413, CHIP 293D685X9025C2WE3 vs T494C685K025AT
T495C685K025ATE500 KEMET Corporation $0.9694 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP 293D685X9025C2WE3 vs T495C685K025ATE500
T495C685K025ATE400 KEMET Corporation $1.3576 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP 293D685X9025C2WE3 vs T495C685K025ATE400
TR3C685K025C0600 Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP 293D685X9025C2WE3 vs TR3C685K025C0600
TR3C685K025D0500 Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP 293D685X9025C2WE3 vs TR3C685K025D0500
T495C685K025AHE400 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP 293D685X9025C2WE3 vs T495C685K025AHE400
T491C685K025AG KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2413, CHIP 293D685X9025C2WE3 vs T491C685K025AG
TR3C685K025E0500 Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP 293D685X9025C2WE3 vs TR3C685K025E0500
