Capacitors / Fixed Capacitors / 293D337X06R3E2WE3
Datasheets
293D337X06R3E2WE3 by:

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP

Part Details for 293D337X06R3E2WE3 by Vishay Intertechnologies

Results Overview of 293D337X06R3E2WE3 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems

293D337X06R3E2WE3 Information

293D337X06R3E2WE3 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 293D337X06R3E2WE3

Part # Distributor Description Stock Price Buy
DISTI # 293D337X06R3E2WE3
Avnet Americas 293D337X06R3E2We3 - Tape and Reel (Alt: 293D337X06R3E2WE3) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 1,500 $1.0641
  • 3,000 $1.0404
  • 6,000 $1.0168
  • 9,000 $1.0010
  • 12,000 $0.9774
$0.9774 / $1.0641 Buy Now
DISTI # 71-293D337X06R3E2WE3
Mouser Electronics Tantalum Capacitors - Solid SMD Molded Tantalum Chip Capacitors RoHS: Compliant 0
  • 1,500 $1.1900
  • 6,000 $1.1200
$1.1200 / $1.1900 Order Now
DISTI # 293D337X06R3E2WE3
Avnet Abacus 293D337X06R3E2We3 - Tape and Reel (Alt: 293D337X06R3E2WE3) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 15 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for 293D337X06R3E2WE3

293D337X06R3E2WE3 CAD Models

  • Part Symbol

    Part Symbol

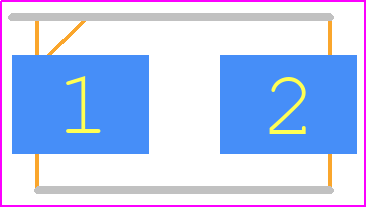

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

293D337X06R3E2WE3 Part Data Attributes

Parametric Data
293D337X06R3E2WE3 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
293D337X06R3E2WE3 Vishay Intertechnologies Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 330 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 500 mΩ
Height 4 mm
JESD-609 Code e3
Leakage Current 0.0198 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, Embossed Plastic, 13 Inch
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 6.3 V
Ripple Current 570 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.08
Terminal Finish MATTE TIN
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for 293D337X06R3E2WE3

This table gives cross-reference parts and alternative options found for 293D337X06R3E2WE3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 293D337X06R3E2WE3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T491X337M006ZT KEMET Corporation $0.9720 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT 293D337X06R3E2WE3 vs T491X337M006ZT
T493X337M006CB64307610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), 293D337X06R3E2WE3 vs T493X337M006CB64307610
T493X337M006BK62207280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP 293D337X06R3E2WE3 vs T493X337M006BK62207280
T493X337M006CK642BWAFL KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, 2917, 293D337X06R3E2WE3 vs T493X337M006CK642BWAFL
T496X337M006CC651B7280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, 2917, 293D337X06R3E2WE3 vs T496X337M006CC651B7280
T493X337M006CT621B7280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT 293D337X06R3E2WE3 vs T493X337M006CT621B7280
T493X337M006CN62107640 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), 293D337X06R3E2WE3 vs T493X337M006CN62107640
T493X337M006CK612B7610 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, 2917, 293D337X06R3E2WE3 vs T493X337M006CK612B7610
T493X337M006CH6310 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, 2917 293D337X06R3E2WE3 vs T493X337M006CH6310
T493X337M006CT631A7280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT 293D337X06R3E2WE3 vs T493X337M006CT631A7280
