Part Details for 290-1AB by Wakefield-Vette
Results Overview of 290-1AB by Wakefield-Vette
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
Price & Stock for 290-1AB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58F1360
|
Newark | Heat Sink, Thermal Resistance:22°C/W, Packages Cooled:To-202, To-218, To-220, External Width - Metric:30Mm, External Height - Metric:12.7Mm, External Length - Metric:25.4Mm, External Diameter - Metric:-, Heat Sink Material:Aluminum Rohs Compliant: Yes |Wakefield Thermal 290-1AB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2978 |
|
$0.2550 | Buy Now |
|
DISTI #
345-1020-ND
|
DigiKey | HEATSINK TO-220 VERT/HORZ BLK Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
23102 In Stock |
|
$0.3278 / $0.5200 | Buy Now |
|
DISTI #
70236653
|
RS | Heatsink, TO-220, Bolt On, Vertical/Horizontal, Single Mount, 7C/W Min Qty: 5600 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4990 | RFQ |
|
|
Onlinecomponents.com | Heat Sink Passive TO-218/TO-202/TO-220 Screw Mount Aluminum 44°C/2W Black Anodized RoHS: Compliant |
9373 In Stock |
|
$0.3142 / $0.4708 | Buy Now |
|
DISTI #
53173189
|
Verical | Heat Sink Passive TO-218/TO-202/TO-220 Horizontal Screw Mount Aluminum 44C/2W Black Anodized Min Qty: 150 Package Multiple: 50 Date Code: 1825 | Americas - 9350 |
|
$0.3753 / $0.5539 | Buy Now |
|
DISTI #
77357619
|
Verical | Heat Sink Passive TO-218/TO-202/TO-220 Horizontal Screw Mount Aluminum 44C/2W Black Anodized Min Qty: 130 Package Multiple: 1 | Americas - 1592 |
|
$0.6078 | Buy Now |
|
|
Bristol Electronics | Min Qty: 8 | 91 |
|
$0.4388 / $0.6750 | Buy Now |
|
|
Quest Components | HEAT SINK, U, TRANSVERSE, ALUMINUM, ANODIZED | 2064 |
|
$0.3899 / $1.1140 | Buy Now |
|
|
Quest Components | HEAT SINK, U, TRANSVERSE, ALUMINUM, ANODIZED | 72 |
|
$0.4500 / $0.9000 | Buy Now |
|
|
Quest Components | HEAT SINK, U, TRANSVERSE, ALUMINUM, ANODIZED | 47 |
|
$0.4456 / $0.6684 | Buy Now |
Part Details for 290-1AB
290-1AB CAD Models
290-1AB Part Data Attributes
|
|
290-1AB
Wakefield-Vette
Buy Now
Datasheet
|
Compare Parts:
290-1AB
Wakefield-Vette

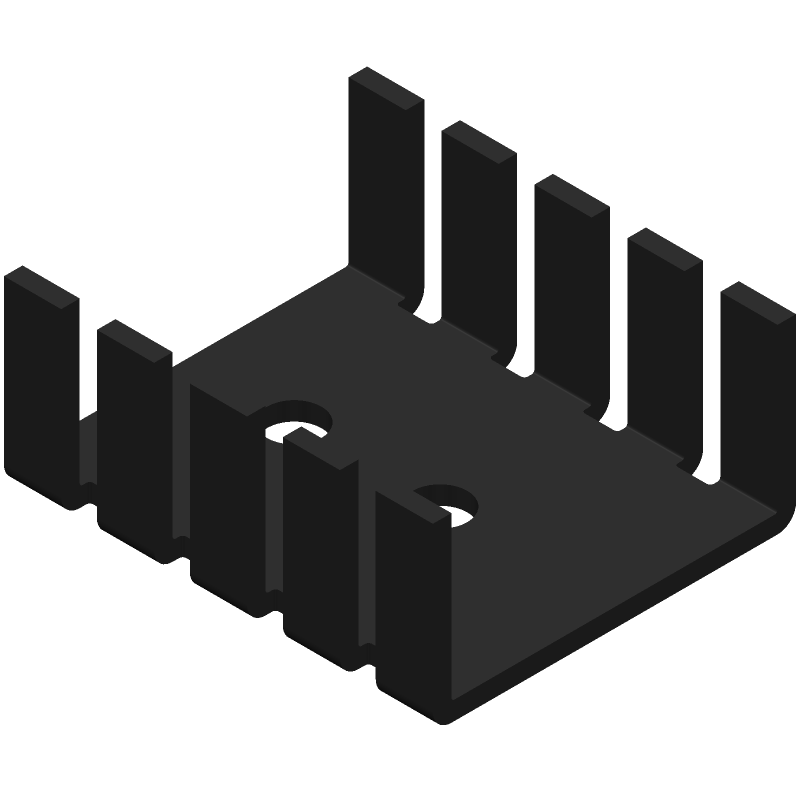

Heat Sink, U, Transverse, Aluminum, Anodized
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WAKEFIELD THERMAL SOLUTIONS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.90.00.00 | |
| Samacsys Manufacturer | Wakefield Thermal | |
| Body Material | ALUMINUM | |
| Color | BLACK | |
| Fin Orientation | TRANSVERSE | |
| Finish | ANODIZED | |
| Height | 12.7 mm | |
| Length | 25.4 mm | |
| Profile | U | |
| Thermal Support Device Type | HEAT SINK | |
| Weight | 3.72 g | |
| Width | 30 mm |
290-1AB Frequently Asked Questions (FAQ)
-
The recommended mounting orientation for the 290-1AB is vertical, with the fins facing upwards to ensure optimal airflow and heat dissipation.
-
Yes, the 290-1AB is designed to withstand high-vibration environments, but it's recommended to secure the heat sink using screws or adhesive to prevent damage or detachment.
-
Wakefield-Vette recommends using a high-quality thermal interface material (TIM) with a thermal conductivity of at least 5 W/m-K, such as thermal grease or thermal tape, to ensure optimal heat transfer.
-
The 290-1AB is not designed for use in humid or corrosive environments. If exposure to moisture or corrosive substances is unavoidable, consider applying a protective coating or using a different heat sink model designed for harsh environments.
-
The maximum allowable temperature for the 290-1AB is 150°C (302°F). Exceeding this temperature may cause damage to the heat sink or affect its performance.
