26-48-2175 by: Molex

Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Black Insulator, Receptacle,

Part Details for 26-48-2175 by Molex

Results Overview of 26-48-2175 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

26-48-2175 Information

26-48-2175 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
10121750-0802081LF Amphenol Communications Solutions PwrBlade+® Connector, Power Connectors, 8HP+2S+8HP Right Angle, Header.
54122-109721750LF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded stacking vertical header, through hole, double Row, 72 position, 2.54mm (0.100in) pitch
77312-175LF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Vertical Header, Through Hole, Single row , Duplex, Polarized, 8 Positions, 2.54mm (0.100in) Pitch

Price & Stock for 26-48-2175

Part # Distributor Description Stock Price Buy
DISTI # 56H5347
Newark Header Connector, pcb Mount, recept,17 Contacts, pin,0.156 Pitch, pc Tail Terminal, latch |Molex 26-48-2175 RoHS: Not Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $5.3400
$5.3400 Buy Now
DISTI # 0026482175
Avnet Americas Conn Wire to Board HDR 17 POS 3.96mm Solder ST Thru-Hole Bulk - Bulk (Alt: 0026482175) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 111 Weeks, 0 Days Container: Bulk 0
RFQ
DISTI # 538-26-48-2175
Mouser Electronics Headers & Wire Housings KK 156 Hdr Assy FrLk Lk Bkwy 14 ckt 20 Au RoHS: Compliant 0
  • 1 $7.6000
  • 10 $5.8900
  • 100 $4.7600
  • 500 $4.2100
  • 800 $4.0100
$4.0100 / $7.6000 Order Now
Onlinecomponents.com Conn Wire to Board HDR 17 POS 3.96mm Solder ST Thru-Hole KK® Bulk RoHS: Compliant 0
  • 600 $4.3800
  • 1,000 $3.6500
  • 2,500 $3.1900
  • 5,000 $2.9600
$2.9600 / $4.3800 Buy Now
DISTI # 26-48-2175
TTI Headers & Wire Housings KK 156 Hdr Assy FrLk Lk Bkwy 14 ckt 20 Au Min Qty: 1 Package Multiple: 1 Container: Each Americas - 2554
In Stock
  • 1 $7.4000
  • 10 $5.8900
  • 100 $4.7700
  • 250 $4.6800
  • 500 $4.2000
  • 1,000 $4.0100
$4.0100 / $7.4000 Buy Now

Part Details for 26-48-2175

26-48-2175 Part Data Attributes

Parametric Data
26-48-2175 Molex
Buy Now Datasheet
Compare Parts:

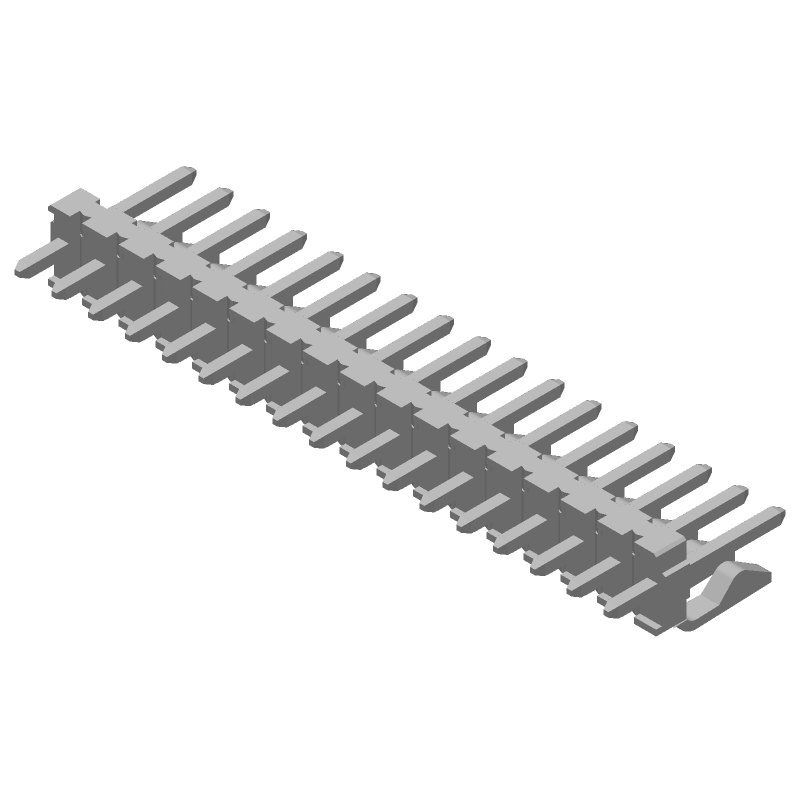

26-48-2175 Molex Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Black Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 111 Weeks
Samacsys Manufacturer Molex
Additional Feature KK
Body Breadth 0.355 inch
Body Depth 0.5 inch
Body Length 2.65 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination MATTE TIN OVER NICKEL
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 6 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1500VAC V
Filter Feature NO
IEC Conformance NO
Insulation Resistance 50000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.156 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LATCH
Mounting Option 2 PLASTIC
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 75 °C
Operating Temperature-Min
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 7 A
Reference Standard UL, CSA
Terminal Length 0.172 inch
Terminal Pitch 3.96 mm
Termination Type SOLDER
Total Number of Contacts 17
UL Flammability Code 94V-0

Alternate Parts for 26-48-2175

This table gives cross-reference parts and alternative options found for 26-48-2175. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 26-48-2175, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1-640445-7 TE Connectivity $0.7165 Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug 26-48-2175 vs 1-640445-7
1-640383-7 TE Connectivity $1.3390 Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Natural Insulator, Plug 26-48-2175 vs 1-640383-7
1-644752-7 TE Connectivity $1.6326 Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug 26-48-2175 vs 1-644752-7
1-644749-7 TE Connectivity $1.6624 Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Natural Insulator, Plug 26-48-2175 vs 1-644749-7
4-641210-7 TE Connectivity $11.6732 Board Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug 26-48-2175 vs 4-641210-7
4-641119-7 TE Connectivity $8.1983 Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug 26-48-2175 vs 4-641119-7
4-644759-7 TE Connectivity $9.9700 Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug 26-48-2175 vs 4-644759-7
4-644615-7 TE Connectivity Check for Price Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Natural Insulator, Plug 26-48-2175 vs 4-644615-7
4-641121-7 TE Connectivity Check for Price Board Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug 26-48-2175 vs 4-641121-7
1-640384-7 TE Connectivity Check for Price Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Natural Insulator, Plug 26-48-2175 vs 1-640384-7
