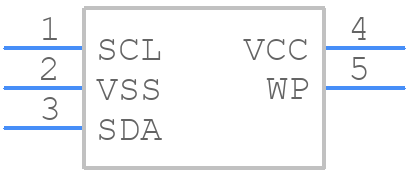

Part Symbol
-
Footprint
-

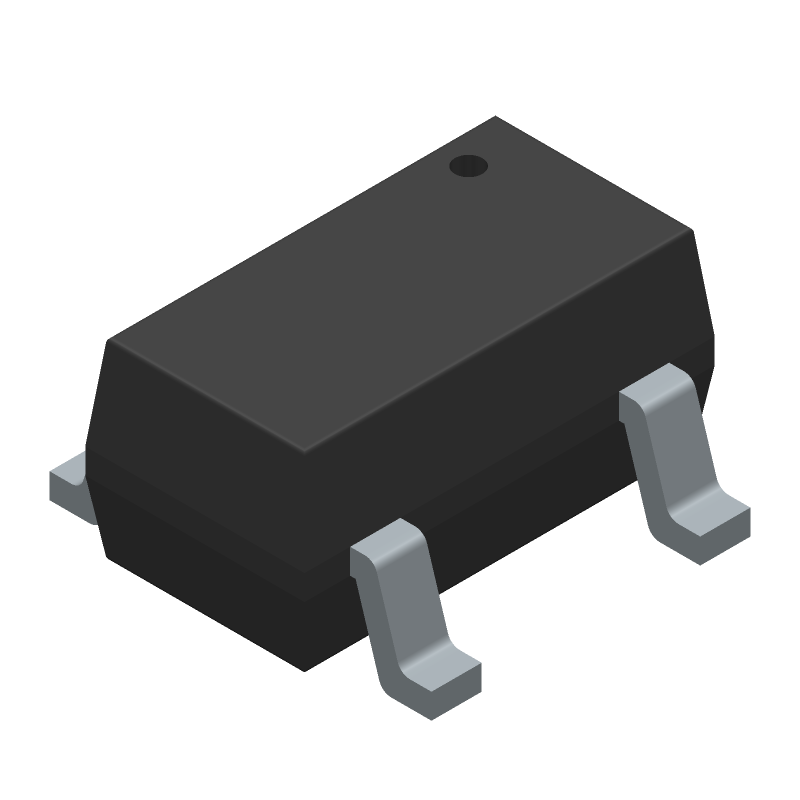

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 24LC64FT-E/OT by Microchip Technology Inc
Results Overview of 24LC64FT-E/OT by Microchip Technology Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
24LC64FT-E/OT Information
24LC64FT-E/OT by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for 24LC64FT-E/OT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08P0130
|
Newark | Eeprom, 64Kbit, -40 To 125Deg C, Memory Configuration:8K X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Supply Voltage Min:2.5V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Microchip 24LC64FT-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5620 | Buy Now |
|
DISTI #
24LC64FT-E/OTCT-ND
|
DigiKey | IC EEPROM 64KBIT I2C SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
13348 In Stock |
|
$0.5459 / $0.5800 | Buy Now |
|
DISTI #
24LC64FT-E/OT
|
Avnet Americas | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 5-Pin SOT-23 T/R - Tape and Reel (Alt: 24LC64FT-E/OT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.4588 / $0.4750 | Buy Now |
|
DISTI #
579-24LC64FT-E/OT
|
Mouser Electronics | EEPROM 64K 8K X 8 2.5V SER EE EXT 1/4AWP RoHS: Compliant | 7257 |
|
$0.5300 / $0.5600 | Buy Now |
|
DISTI #
V72:2272_06423358
|
Arrow Electronics | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V Automotive AEC-Q100 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2403 Container: Cut Strips | Americas - 2980 |
|
$0.4873 / $0.5370 | Buy Now |
|
DISTI #
24LC64FT-E/OT
|
Microchip Technology Inc | 64K 2-Wire Serial EEPROM, SOT-23, Projected EOL: 2034-06-11 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel |
14722 Alternates Available |
|
$0.4700 / $0.5600 | Buy Now |
|
DISTI #
70453040
|
RS | 64K, 8K X 8, 2.5V SER EE, EXT, 1/4 ARRAY WRITE PROTECT5 SOT-23 T/R Min Qty: 3000 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5700 | RFQ |
|
|
Onlinecomponents.com | EEPROM - Serial-I²C - 64Kb (8K x 8) - Quarter Array Write Protect - 2.5V/3.3V/5V - 5-Pin SOT-23 - Tape&Reel RoHS: Compliant |
6000 In Stock 12000 Factory Stock |
|
$0.4717 / $1.0340 | Buy Now |
|
DISTI #
77258115
|
Verical | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V Automotive AEC-Q100 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2403 | Americas - 6000 |
|
$0.7128 / $1.3155 | Buy Now |
|
DISTI #
88920632
|
Verical | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V Automotive AEC-Q100 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 | Americas - 2980 |
|
$0.5370 | Buy Now |
Part Details for 24LC64FT-E/OT
24LC64FT-E/OT CAD Models
24LC64FT-E/OT Part Data Attributes
|
|
24LC64FT-E/OT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
24LC64FT-E/OT
Microchip Technology Inc
8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO5, PLASTIC, SOT-23, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Clock Frequency-Max (fCLK) | 0.4 MHz | |
| Data Retention Time-Min | 200 | |
| Endurance | 1000000 Write/Erase Cycles | |
| I2C Control Byte | 1010DDDR | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Memory Density | 65536 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 5 | |
| Number of Words | 8192 words | |
| Number of Words Code | 8000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 8KX8 | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 5 V | |
| Qualification Status | Not Qualified | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.45 mm | |
| Serial Bus Type | I2C | |
| Standby Current-Max | 0.000005 A | |
| Supply Current-Max | 0.003 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.55 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE |
Alternate Parts for 24LC64FT-E/OT
This table gives cross-reference parts and alternative options found for 24LC64FT-E/OT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24LC64FT-E/OT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 24LC64T-I/ST | Microchip Technology Inc | $0.5849 | 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 | 24LC64FT-E/OT vs 24LC64T-I/ST |
| 24LC64-E/MS | Microchip Technology Inc | $0.7015 | 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8 | 24LC64FT-E/OT vs 24LC64-E/MS |
| 24LC64-E/SM | Microchip Technology Inc | $0.7350 | 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8 | 24LC64FT-E/OT vs 24LC64-E/SM |
| 24LC64F-E/ST | Microchip Technology Inc | $0.7485 | 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 MM, PLASTIC, TSSOP-8 | 24LC64FT-E/OT vs 24LC64F-E/ST |
| 24LC64-E/CS16K | Microchip Technology Inc | Check for Price | I2C/2-WIRE SERIAL EEPROM | 24LC64FT-E/OT vs 24LC64-E/CS16K |
24LC64FT-E/OT Frequently Asked Questions (FAQ)
-
The 24LC64FT-E/OT has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
-
The 24LC64FT-E/OT uses a page write buffer to handle page writes. For block writes, the device uses a block write buffer that can handle up to 128 bytes of data. The device automatically handles page and block writes, and the host controller only needs to send the write command and data.
-
The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any attempt to write to the device will be ignored. When the WP pin is tied to GND, the device is in normal operation mode.
-
The 24LC64FT-E/OT has an internal power-on reset circuit that resets the device during power-up. During power-down, the device automatically goes into a low-power standby mode to conserve power.
-
The maximum clock frequency for the 24LC64FT-E/OT is 400 kHz. However, the device can operate at lower clock frequencies, and the host controller can adjust the clock frequency to optimize power consumption and performance.
